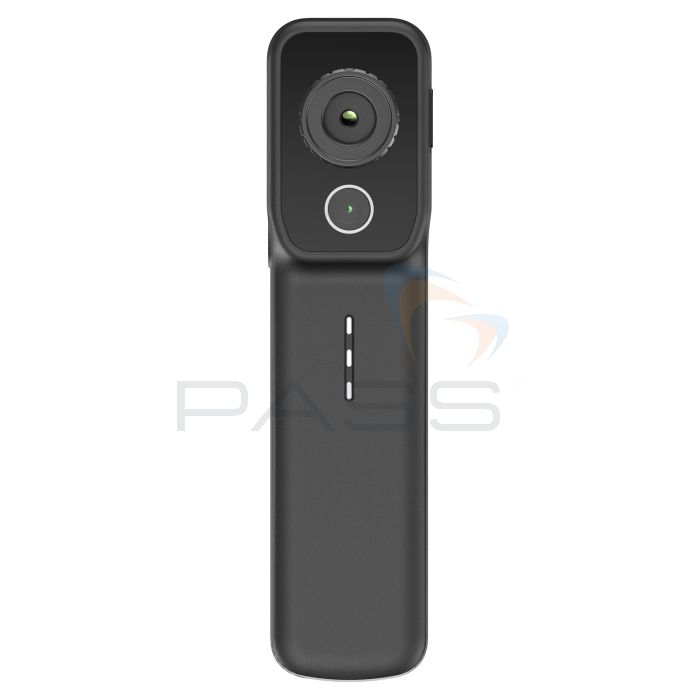

Hikmicro MiniX Wireless Dual Thermal Camera (25Hz)
- SuperIR technology
- iOS and Andriod
- 25 Hz image frequency
- 0.3MP visual camera
SKU
MINI-X
MPN
HM-TJ52-3AQF/W-MiniX
The Hikmicro MiniX Smartphone Module wirelessly connects to Android and iOS devices with multiple installation options, like clipping it onto your phone or tablet, magnetic wall mounting, or tripod installation. It has a dual-lens system, a high-resolution VOx detector, SuperIR technology, and a 0.3 MP optical camera.
The MiniX has a 25 Hz frame rate, up to 4 hours of continuous operation, with high sensitivity (NETD < 40 mK) and 256 x 192 resolution (49,152 pixels). At the same time, the 3.5mm adjustable focal lens ensures crisp focus for tasks such as PCB repair and inspection.
The camera can wirelessly connect via a simple QR code scan and is compatible with the Hikmicro Viewer & Analyzer apps. Suitable for various applications, including building inspections, HVAC maintenance, and electrical and mechanical equipment diagnostics.
Compatible with iOS (version 14 and later) and Android (version 9 and later) smartphones and tablets or Windows devices.
Key Features
- 256 x 192 (49,152 pixels)
- NETD: < 40 mK (@ 25°C, F# = 1.0)
- SuperIR image enhancement technology on live view and captured images
- Wireless connection for iOS and Andriod
- 25 Hz image frequency
- Accuracy: ± 2 °C (-20 °C to 100 °C) ; ± 2 % (100 °C to 550 °C)
- Accurately measure temperature from -20°C to 550°C ( -4° F to 1022° F)
- Thermal, Fusion, PIP, Visual, and Blending modes
- 0.3MP visual camera
- Adjustable Focal Lens
- Compact, Ergonomic, Versatile Mounting
- Long-lasting Battery Life
- Analyzer online preview feature
- Viewer app compatibility
- Solar panel maintenance
- HVAC maintenance
- Automotive service
- Inspect Printed Circuit Boards (PCB)
- Locate your palettes
- Cool your computer
What's Included?
- Thermal imager
- Case
- USB cable
- Quick start guide
- Surface mount holder
- Phone mount holder
Technical Information
Specification
| Infrared Image | |
|---|---|
| IR Resolution | 256 x 192 (49, 152 pixels) |
| SuperIR | Yes, on captured images and live view |
| NETD | <40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° x 50.0° |
| Spatial Resolution (IFOV) | 3.33 mrad |
| Min. Focus Distance | 0.05 m (0.164 ft) |
| Focus Mode | Manual Focus |
| Image Display | |
| Visual Camera | 640x 480 (0.3 MP) |
| Colour Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending |
| Measurement and Analysis | |
| Object Temperature Range | Range -20°C to 120°C (-4° F to 248° F) Range 100°C to 550°C (212° F to 1022°F) |
| Accuracy | Max (± 2°C/3.6° F, ± 2%), for the ambient temp. 15°C to 35°C (59° F to 95° F) and object temp. above 0°C (32° F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots, 3 rectangles and 1 line |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Image File Format | Radiometric JPEG, saved in the Hikmicro Viewer App |
| Video File Format | MP4 video (25 Hz), saved in the Hikmicro Viewer App |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC (5Hz) |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| USB Interface | USB Type-C |
| Installation Method | Clipping it onto your phone or tablet, magnetic wall mounting, or tripod mounting |
| Software Compatibility | HIKMICRO Viewer app for iOS and Android HIKMICRO Analyzer software for Windows |
| Device Compatibility | iOS (version 14 and later), Android (version 9 and later) smartphones and tablets, or Windows devices |
| Power Supply | USB-C (5V/2A) |
| Power Saving Mode | Auto Power-off |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours |
| Battery Charging Time | Supports fast charging. Charge to 50% capacity in 30 minutes, 85% in 1 hour, and 100% in 2 hours. |
| Battery Indicator | Yes, indicating battery level and charging status |
| Protection Level | IP54 |
| Drop Test Height | 1m (3.28 ft) |
| Working Temperature Range | -10°C to 50°C (-4° F to 122° F) |
| Storage Temperature Range | -20°C to 70°C (-4° F to 158° F) |
| Relative Humidity | <95% non-condensing |
| Weight | Approx. 158 g (0.35 lb) |
| Dimension | 155.45 x 38.89 x 32.15 mm (6.12 x 1.53 x 1.27 in) |
