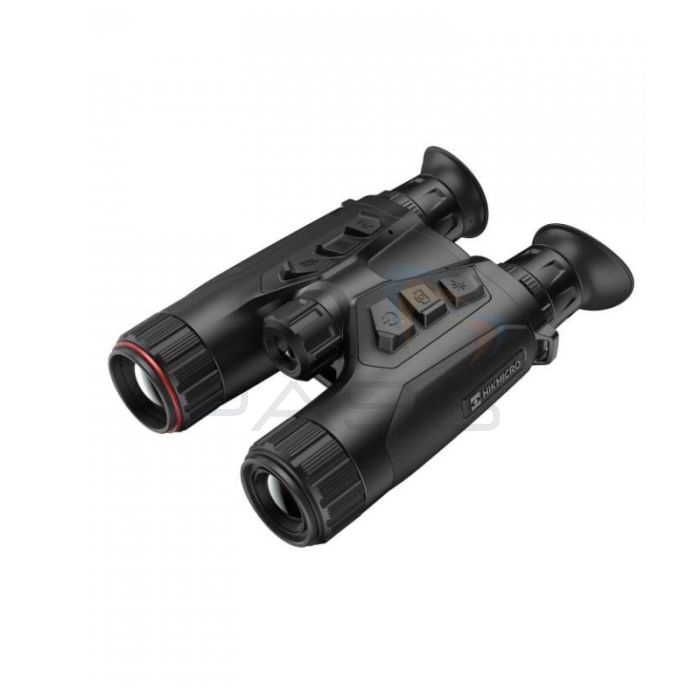

A perfect all-in-one solution for outdoor applications, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars combine thermal and digital imaging to deliver sharp, detailed, precise footage.
To provide detailed, layered pictures, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars combine thermal and digital imaging.
The Hikmicro HH35L Habrok Multi-Spectrum Binoculars clearly identify objects, details, and backgrounds in various weather and lighting conditions. This is because they include a high-sensitivity (20mk) thermal detector and a 384 x 288px infrared resolution.
Equipped with a 0.001 Lux Starlight Camera with a 2560 x 1440px HD resolution, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars capture detailed pictures in low light and daylight.
Furthermore, a built-in 850nm IR emitter ensures the Hikmicro HH35L Habrok Multi-Spectrum Binoculars can be used in total darkness, while Smart IR prevents overexposure.
To reduce pixelation, especially during digital zoom, and ensure ultra-clear imaging with sharp details, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars include a Zoom Pro image algorithm.
Capable of determining distances up to 1000m (to an accuracy of ±1m), the integrated rangefinder can be used to measure the distance to wildlife or targets.
Offering an immersive experience, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are fitted with a 0.49-inch OLED display with a 1920 x 1080px resolution.
Images can be saved to a local album for convenient viewing. Alternatively, they may be streamed to a smartphone or tablet with the Sight App installed, thanks to an integrated hotspot module.
Lightweight, compact, and with intuitively placed buttons, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars sport a classic, ergonomic, easy-to-use binocular design. Focus rings on each lens ensure crisp image capture while an adjustable interpupillary distance (60mm to 74mm) provides maximum comfort.
Housed in a robust, waterproof (IP67) magnesium alloy housing, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are suitable for harsh, outdoor environments.
The Hikmicro HH35L Habrok Multi-Spectrum Binoculars’ four 18650 batteries deliver a continuous operating time of up to six hours. To conserve battery life, a Smart Auto Screen Off function turns the display off when the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are in an inactive position.
Powerful, precise combined thermal and digital imager, the Hikmicro HH35L Habrok Multi-Spectrum Binoculars are ideal for use in fields and forests.
Thermal Module | |
Image Sensor | VOx Uncooled Focal Plane Arrays |
Max. Resolution | 384 × 288 |
Frame Rate | 50 Hz |
Pixel Interval | 12 μm |
Response Waveband | 8 μm to 14 μm |
NETD | Less than 20 mK (@25°C), F# = 1.0 |
Lens (Focal Length) | 35 mm, F1.0 |
Focus Mode | Focus Ring |
Detection Range | 1800 m |
Min. Focusing Distance | 3.5 m |
Magnification | 4.0x to 32x (8x) |
Field of View(H × V), Degrees/m @100 m | 7.5° × 5.7°/13.2 m × 9.9 m |
Optical Module | |
Image Sensor | 1.88'' Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Focal Length | 31 mm, F1.2 |
Min. Working Distance | 3 m |
Min. Illumination | 0.001 lux @ (F1.0 , AGC On) |
Focus Mode | Focus Ring |
Magnification | 2.9x to 23.2x(8x) |
Field of View (H × V), Degrees/m @100 m | 13.9° × 7.8°/24.4 m × 13.6 m |
Smart IR | Yes |
Viewing Range at Night | 400 m |
Image Display | |
Display | 0.49 inch, OLED, 1920 ×1080 |
Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
Exit Pupil | 8 mm |
Eye Relief | 15 mm |
Diopter (Range) | -5 D to +3 D |
Brightness Adjustment | Yes |
Tone Adjustment | Cold, warm |
Contrast Adjustment | Yes |
Zoom Pro | Yes |
System | |
Record Video | Yes |
Capture Snapshot | Yes |
Audio Recording | Yes |
Standby Mode | Yes |
Storage | Built-in EMMC (64 GB) |
PIP | Yes |
Hotspot | Yes |
Hot Track | Yes |
Digital Magnetic Compass | Yes |
GPS | Yes |
Local Album | Yes |
Power Supply | |
Battery Type | Replaceable and Rechargeable Li-ion Battery |
Battery Operating Time | ≥6 h (25°C, with hotspot off) |
Type-C Power Supply | 5 V DC, 2 A Supports External Power Supply |
General | |
Protection Level | IP67 |
Dimension | 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4") |
Weight | 780 g without batteries |
Working Temperature | -30℃ to +55℃ |
Interpupillary Adjustment Range |
60 mm to 70 mm |
Mounting Adapter | 1/4“-20-UNC |
Laser Rangefinder | |
Safety Class for Laser | Class 1 |
Wavelength | 905 nm |
Max. Measuring Range | 1000 m |
Measurement Accuracy | ±1 m |
Min. Measuring Range | 10 m |
Infrared Illuminator | |
Emitter | LED |
IR Wavelength | 850 nm |
Beam Angle | Adjustable 7.6 to 11.5° |
