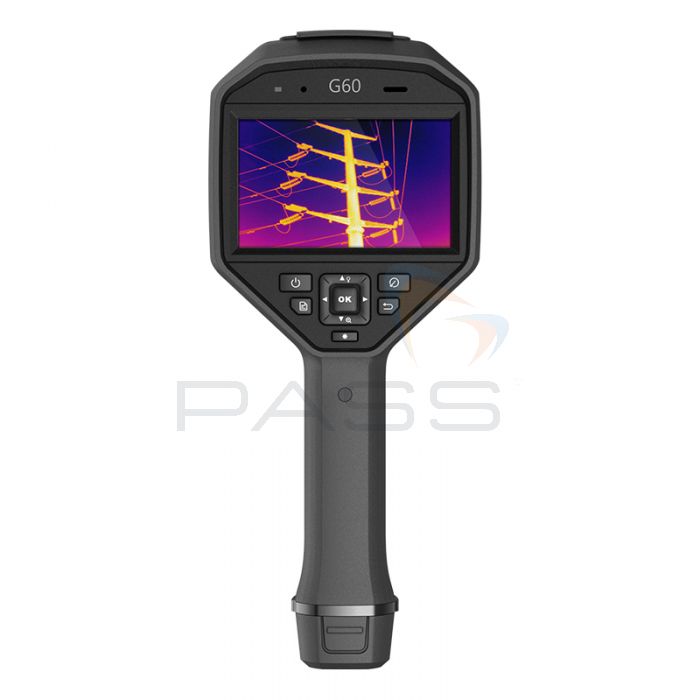

Hikmicro G60 Handheld Thermal Camera

Designed for temperature measuring applications and troubleshooting faults on-site, the Hikmicro G60 Handheld Thermal Camera has a thermal resolution of 640x512px (327 680px), thermal sensitivity of <35mK, and a frame rate of 50Hz. It can measure temperatures between -20°C and +650°C to an accuracy of ±2°C/2%.

Hikmicro G60 Colour Palettes

The Hikmicro G60 also features an 8MP optical camera and an Auto, Manual, and Laser focus. Images are displayed on the 4.3-inch LCD touchscreen and can be analysed using measurement tools such as Centre Spot, Hot Spot, Cold Spot, and User Preset Point, Line and Area. This thermal also has four imaging modes, thermal, optical, fusion or PiP (picture in picture) as well as four focus moed including continuous auto, autofocus, laser assist and manual, allowing the user to take full control and produce accurate detailed measurements.

The Hikmicro G series cameras come equipped with text and voice annotation features. These cameras have built-in microphones and speakers so there is no need for an additional headset so you can add important details to any image or video, even while you're on site. These annotations can then be used later on when you edit or analyse the images, or when you create reports using the Hikmicro Analyser software (download for free).

Compatible with Hikmicro Viewer

Connect your Hikmicro thermal camera to the Hikmicro viewer app to download the images and videos from your camera to your phone, allowing you to share your findings with a team. The live view and remote control feature means you can live stream what is on your G60's screen, directly to your phone, so you can monitor and inspect from a safe distance or in hard-to-reach locations. Additionally, you can analyse images using radiometric data, adjust levels and spans, add measurements, switch modes, create reports and more! The app unleashes a new potential for your thermal camera.

Offering up to four hours of continuous running time, the G60 is a powerful, practical, precise thermal imager.

Videos

Introducing HIKMICRO G Series

Key Features

Designed for temperature measuring applications and troubleshooting faults on-site
Thermal resolution: 640x512px (327 680px)
Thermal sensitivity: <35mK
Frame rate: 50Hz
Temperature range: -20°C to +650°C
Accuracy: ±2°C/2%
8MP optical camera
Auto, Manual, and Laser focus
4.3-inch LCD touchscreen
Measurement tools: Centre Spot, Hot Spot, Cold Spot, and User Preset Point, Line and Area
Running time: 4 hours
Powerful, practical, precise thermal imager

What Accessories Come with the Hikmicro G60?

Type-C Cable
Power Adapter
Hand Strap
Charging Base
Battery (x2)
Micro SD Card
CVBS Cable
Tools Package
Charger
Lens Cover
Quick Start Guide

Hikmicro G Series Thermal Camera Comparison - What's the Difference?

	Hikmicro G40	Hikmicro G60
IR Resolution	480 x 360 (172,800pixels)	640 x 480 (307,200pixels)
Temperature Range	-20°C to 650°C	-20°C to 650°C
NETD:	<35 mK (@ 25 °C, F#=1.0)	< 35 mK (@ 25 °C, F#=1.0)
Image Frequency	50 Hz	50 Hz
Detector Pitch	17μm	17μm
Spectral Range	7.5 to 14μm	7.5 to 14μm
Focal length	25mm	25mm
F-Number	F1.0	F1.0
Field of View (FOV)	18.7° × 14°	25° × 19°
Spatial Resolution (IFOV)	0.68 mrad	0.68 mrad
SuperIR:	960 x 720 (691,200 pixels)	1280 x 960 (1,228,800 pixels)
Visual Camera	3264 x 2448 (8 MP)	3264 x 2448 (8 MP)
Digital Zoom	1X, 2X, 4X, 8X	1X, 2X, 4X, 8X
Image Modes	Thermal/Visual/Fusion/PIP/Blending	Thermal/Visual/Fusion/PIP/Blending
Colour Palette	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain	White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain
Colour Alarm:	Above/Below/Interval/Insulation	Above/Below/Interval/Insulation
Storage Media	Removable 64 GB Micro SD Card	Removable 64 GB Micro SD Card
Image Storage	Approx 60,000 images	Approx 60,000 images
Video Storage	Approx 54 hours	Approx 54 hours
Wi-Fi	802.11 b/g/n (2.4 GHz and 5 GHz)	802.11 b/g/n (2.4 GHz and 5 GHz)
Battery life	Approx 4 hours	Approx 4 hours
Weight	Approx. 1000 g (2.2 lb)	Approx. 1000 g (2.2 lb)
