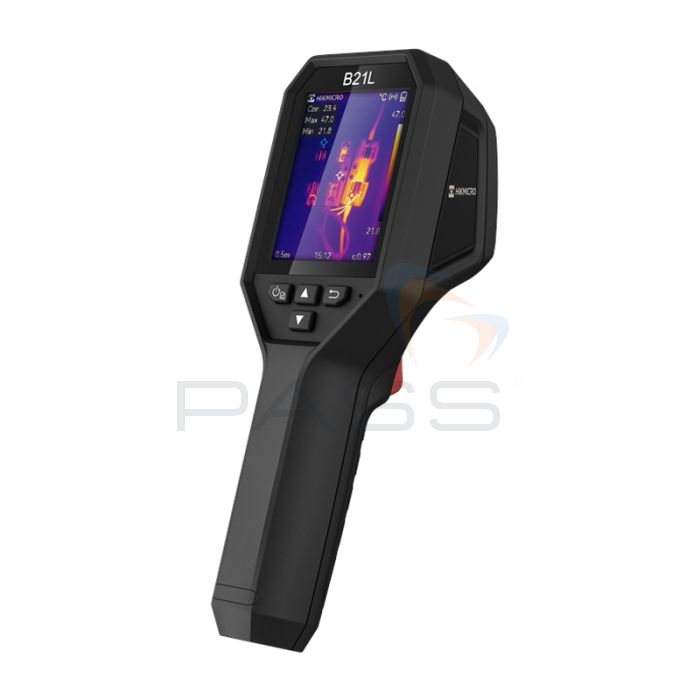

Hikmicro B21L Handheld Thermal Camera
Hikmicro B21L Handheld Thermal Camera
Featuring a 256 x 192px IR resolution, 40mK thermal sensitivity, and a temperature range of -20°C to +550°C, the Hikmicro B21L Handheld Thermal Camera is suitable for building, HVAC, and automotive applications. Image enhancement algorithms, coupled with a VOx detector ensure the Hikmicro B21L Handheld Thermal Camera captures clear, fully radiometric images. The Hikmicro B21L automatically tracks maximum, minimum, and centre temperatures. This allows you to spot temperature anomalies immediately. The camera offers an accuracy of ±2°C/2%. Furthermore, SuperIR functionality upscales the thermal image's resolution to 320 x 240px, while selectable thermal colour palettes allow you to adjust the camera to suit your application. A 25Hz frame rate ensures footage is smooth, even when panning across scenes or tracking moving targets. Images are displayed on the 3.2-inch LCD.
High-Temperature Alarm
When high temperatures are detected, the built-in speaker and torch will issue alerts.
Macro Mode
When used with a clip-on macro lens, the B21L can take temperature readings of components as small as 500 microns. This makes the camera perfect for pinpointing faults on printed circuit boards.
Wi-Fi Connectivity
Integrated Wi-Fi also allows you to stream thermal images to a smartphone or tablet with Hikmicro’s Viewer App installed, enabling easy collaboration.
Hikmicro Analyser Software
Included is Hikmicro’s Analyser Software. It features tools such as points, lines, rectangles, circles and polygons that can be used to analyse thermal data. The Hikmicro Analyser Software also has the capability to create reports.
Designed for fast fault finding, the Hikmicro B21L Handheld Thermal Camera is an accurate, adaptable infrared imager.
Videos
How to use the Hikmicro B1L
How to | HIKMICRO B1L
Hikmicro B Series
Introducing HIKMICRO B Series
Key Features
- Thermal camera suitable for building, HVAC, and automotive applications
- IR resolution: 256 x 192px
- Thermal sensitivity: 40mk
- Temperature range: -20°C to +550°C
- Image enhancement algorithms
- VOx detector
- Clear, fully radiometric images
- Automatically tracks maximum, minimum, and centre temperatures
- Accuracy: ±2°C/2%
- SuperIR functions: increases resolution to 320 x 240px
- Selectable thermal palettes
- Frame rate: 25Hz
- High-temperature alarm with speaker and torch alerts
- Clip-on macro lens
- Take temperature readings of components as small as 500 microns
- 3.2-inch LCD
- Wi-Fi connectivity
- Stream thermal images to a smartphone or tablet with the Hikmicro Viewer App installed
- Supplied with Hikmicro Analyser Software
- Designed for fast fault finding
- An accurate, adaptable thermal imager
What’s Included?
- Hikmicro B21L Handheld Thermal Camera
- Wrist Strap
- Charger
- USB Cable
- Power Adapter
- Quick Start Guide
- Calibration Certificate
Hikmicro B21L Handheld Thermal Camera Technical Specifications
| Infrared Image | |
| IR Resolution | 256 × 192 (49,152 pixels) |
| SuperIR | Yes, on captured thermal images |
| NETD | < 40 mK (@ 25 °C, F#=1.0) |
| Image Frequency | 25 Hz |
| Detector Pitch | 12 μm |
| Spectral Range | 7.5 to 14 μm |
| Focal Length | 3.6 mm |
| F-number | F1.0 |
| Field of View (FOV) | 37.2° × 50.0° |
| Spatial Resolution (IFOV) | 3.3 mrad |
| Min. Focus Distance | 0.3 m (0.98 ft) |
| Focus Mode | Focus Free |
| Image Display | |
| Display | 240 × 320 Resolution, 3.2”LCD Screen |
| Colour Palettes | White Hot, Black Hot, Rainbow, Ironbow |
| Colour Alarm | Above alarm |
| Image Modes | Thermal |
| Measurement and Analysis | |
| Object Temperature Range | -20°C to 550°C (-4°F to 1022°F) |
| Accuracy | Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot User-definable: 3 spots |
| Level and Span Mode | Auto/Manual |
| Data Storage and Communication | |
| Storage Media | Built-in 16 GB flash memory |
| Image Storage Capacity | Approx. 90,000 Images |
| General | |
| Wi-Fi | 802.11 b/g/n (2.4 GHz) |
| USB Interface | USB Type-C |
| Battery Type | Rechargeable Li-ion battery |
| Battery Operating Time | Approx. 6 hours |
| Battery Charging Time | Approx. 3 hours fully charged |
| Protection Level | IP54 |
| Drop Test Height | 2 m (6.56 ft) |
| Working Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity | < 95% non-condensing |
| Weight | Approx. 380 g (0.84 lb) |
| Dimension | 221.7 mm × 73.5 mm × 123.8 mm (8.73’’ × 2.89’’ × 4.87’’) |
| Tripod Mounting | UNC ¼”-20 |
| Laser | Yes, Class II |
Reviews
Additional Information
| SKU | B21L |
|---|---|
| Manufacturer Part Code | HM-TP52-3AQF/W-B21L |
