HD Electric PRX-500 Proximity Voltage Detector – Choice of Kits

The HD Electric PRX-500 Proximity Voltage Detector is designed for line crews performing voltage tests on distribution and transmission lines. As a result, the HD Electric PRX-500 Proximity Voltage Detector features nine standard voltage ranges from 120V AC to 500kV AC, and a Capacitive Test Point Mode that is accessible in the 120V AC setting. Each time a voltage is detected, the HD Electric PRX-500 Proximity Voltage Detector will issue an audible and visual indication. It is able to detect voltages on most elbow test points and from a distance of approximately ten inches.

The HD Electric PRX-500 Proximity Voltage Detector is supplied as part of a variety of kits; please see the ‘What’s Included?’ section for further details.

As mentioned above, the HD Electric PRX-500 Proximity Voltage Detector is able to detect the presence of voltage without making contact with the conductor. Its “Sensing Zone” makes it easy to identify voltages on complex overbuilds and underbuilds as it enables directional discrimination. When a voltage has been identified it will issue an audible alarm and bright LEDs will flash.

Nine voltage ranges allow the user to tailor the HD Electric PRX-500 Proximity Voltage Detector to suit the utility system under investigation. This instrument can be used on both 50Hz and 60Hz systems. It is possible to purchase the HD Electric PRX-500 Proximity Voltage Detector with custom voltage ranges, please call for further details. Its dual hotstick connection also allows the user to attach a universal spline or shotgun stick as necessary.

Furthermore, the HD Electric PRX-500 Proximity Voltage Detector’s rugged, waterproof housing makes it suitable for a variety of harsh environments, whilst its lightweight design featuring an electronic touchpad with large buttons ensures that it is easy to handle and manipulate despite challenging conditions.

Adding to the practicality of this instrument is its rechargeable Li-Ion battery. When the HD Electric PRX-500 Proximity Voltage Detector’s battery is low it only requires a fifteen-minute charge to provide a full day’s worth of power; charging for three hours provides a week’s worth of power. The HD Electric PRX-500 Proximity Voltage Detector is compatible with AC/DC charging options; it can be charged using 12V DC automotive or 115-240V AC outlets. The HD Electric PRX-500 Proximity Voltage Detector’s internal circuitry prevents the battery from overcharging and protects it from extreme temperatures. Furthermore, the battery is sealed inside the unit, protecting it from external factors.

The HD Electric PRX-500 Proximity Voltage Detector is an adaptable, easy-to-use and practical instrument suitable for utility professionals working on transmission and distribution systems.

HD Electric PRX-500 Proximity Voltage Detector Key Features

• Designed for line crews performing voltage tests on distribution and transmission lines
• Nine standard voltage ranges from 120V AC to 500kV AC
• Capacitive Test Point mode in 120V AC setting
• Issues an audible alarm and bright LEDs begin to flash when a voltage is detected
• Able to detect voltages on most elbow test points
• Can detect voltages from a distance of approximately ten inches
• Available as part of a variety of kits
• Detect the presence of voltage without making contact with the conductor
• “Sensing Zone”: provides directional discrimination for identifying voltages on complex overbuilds and underbuilds
• Nine voltage ranges allowing the user to tailor the detector to the system-under-investigation
• Can be used on both 50Hz and 60Hz systems
• Can be purchased with custom voltage ranges, please call for further details
• Dual hotstick connection facilitates the attachment of a universal spline or shotgun stick
• Rugged, waterproof housing suitable for harsh environments
• Lightweight design featuring an electronic touchpad with large buttons
• Rechargeable Li-Ion battery
• When low the battery only requires a fifteen-minute charge to provide a day’s worth of power
• Charge for three hours to reach full capacity
• A full charge provides a week’s worth of continuous use
• Compatible with AC/DC charging options
• Can be charged using a 12V DC automotive outlet
• Can be charged using a 115-240V AC outlet
• Internal circuitry prevents the battery from overcharging and protects it from extreme temperatures
• The battery is sealed inside the unit protecting it from external factors
• An adaptable, easy-to-use and practical instrument
• Suitable for utility professionals working on transmission and distribution

What’s Included?

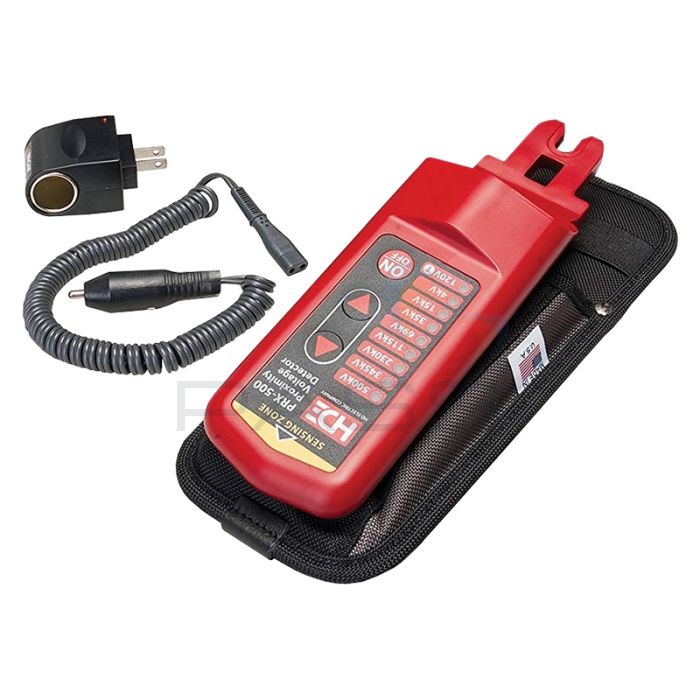

HD Electric PRX-500 Proximity Voltage Detector – Standard Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric PRX-HS Holster
• HD Electric PRX-CS Carry Case

HD Electric PRX-500-220P Proximity Voltage Detector – 220P Standard Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric 220V AC Charging Adapter Kit
• HD Electric PRX-HS Holster
• HD Electric PRX-CS Carry Case

HD Electric PRX-500B Proximity Voltage Detector – Bag Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric PRX-HS Holster
• HD Electric B-2 Carry Bag

HD Electric PRX-500B-220P Proximity Voltage Detector – 220P Bag Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric 220V AC Charging Adapter Kit
• HD Electric PRX-HS Holster
• HD Electric B-2 Carry Bag

HD Electric PRX-500H Proximity Voltage Detector – Holster Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric PRX-HS Holster

HD Electric PRX-500H-220P Proximity Voltage Detector – 220P Holster Kit

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric 220V AC Charging Adapter Kit
• HD Electric PRX-HS Holster

HD Electric PRX-500-K01 Proximity Voltage Detector – Kit 1

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord

HD Electric PRX-500-K02 Proximity Voltage Detector – Kit 2

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer

HD Electric PRX-500-K02-220 Proximity Voltage Detector – 220 Kit 2

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric 220V AC Charging Adapter Kit

HD Electric PRX-500-K03 Proximity Voltage Detector – Kit 3

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric B-2 Carry Bag

HD Electric PRX-500-K03-220 Proximity Voltage Detector – 220 Kit 3

• HD Electric PRX-500 Proximity Voltage Detector
• HD Electric PRX-CORD 12V DC Charge Cord
• HD Electric PRX-XF 115-240V AC Charge Transformer
• HD Electric 220V AC Charging Adapter Kit
• HD Electric B-2 Carry Bag
