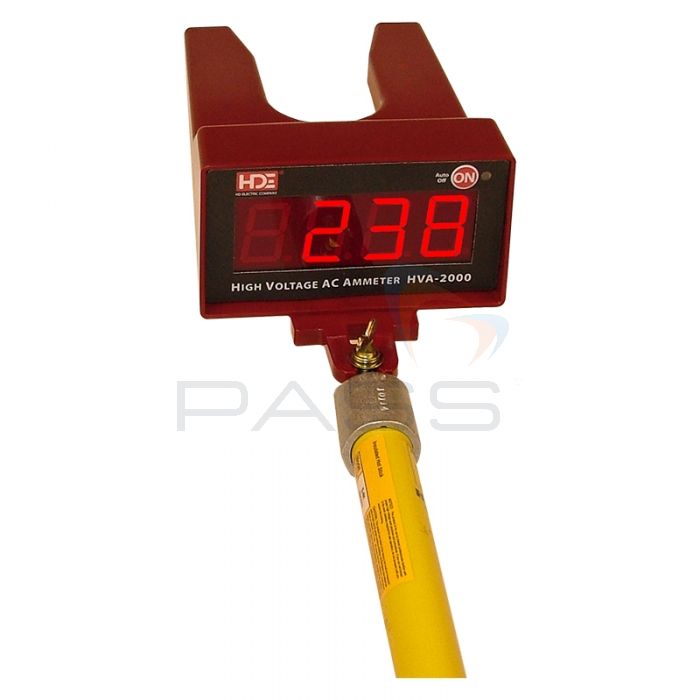

HD Electric HVA-2000 High Voltage Digital Ammeter

The HD Electric HVA-2000 High Voltage Digital Ammeter can be used to take true-RMS AC current measurements up to 2000A, 25-500Hz. It can be used on systems with voltages up to 500kV.

The HD Electric HVA-2000 High Voltage Digital Ammeter can take spot-load studies at transformers or any mid-span location and can conduct phase balance studies on primary and secondary lines. The HD Electric HVA-2000 High Voltage Digital Ammeter can determine measurements to an accuracy of 1%.

Readings are indicated on the HD Electric HVA-2000 High Voltage Digital Ammeter’s large, bright LED display. This display remains easy-to-read even when the HD Electric HVA-2000 High Voltage Digital Ammeter is placed at the end of a long telescoping hotstick. The user can set the HD Electric HVA-2000 High Voltage Digital Ammeter to display real-time measurements or to retain the highest measurement determined throughout the measurement period (Peak Hold).

Furthermore, the HD Electric HVA-2000 High Voltage Digital Ammeter will save the last four measurements detected, removing the need for the user to bring the unit back down between each reading.

The HD Electric HVA-2000 High Voltage Digital Ammeter features a compact, lightweight design with both universal spline and shotgun stick hotstick connections. It is constructed to accommodate conductors up to 2.75”/ 7cm.

The HD Electric HVA-2000 High Voltage Digital Ammeter is an accurate, compact and practical HV true-RMS AC ammeter.

HD Electric HVA-2000 High Voltage Digital Ammeter Key Features

• Take true-RMS AC current measurements up to 2000A, 25-500Hz
• Can be used on systems with voltages up to 500kV
• Take spot-load studies at transformers or any mid-span location
• Conduct phase balance studies on primary and secondary lines
• Accuracy: within 1%
• Large, bright LED display
• Easy-to-read even when attached to the end of a long telescoping hotstick
• Real-time measurement mode
• Peak Hold measurement mode
• Will automatically save the four measurements detected: the unit does not need to be brought down between measurements
• Compact, lightweight design
• Universal spline and shotgun stick hotstick connections
• Can accommodate conductors of up to 2.75”/ 7cm
• An accurate, compact and practical HV true-RMS AC ammeter

What’s Included?

There are two options available; these differ in regards to their carry cases.

HD Electric HVA-2000 High Voltage Digital Ammeter

• HD Electric HVA-2000 High Voltage Digital Ammeter
• HD Electric B-5 Soft Nylon Carrying Bag

HD Electric HVA-2000H High Voltage Digital Ammeter

• HD Electric HVA-2000 High Voltage Digital Ammeter
• HD Electric CS-HVA Rugged Plastic Carrying Case
