HD Electric PT-5000W High Voltage DC Leakage Tester

SKU
HD-PT-5000W
Rating:
0%
(0)
Call For Pricing

We require additional information before you purchase this product

or Call 01642 931 329 to discuss product options

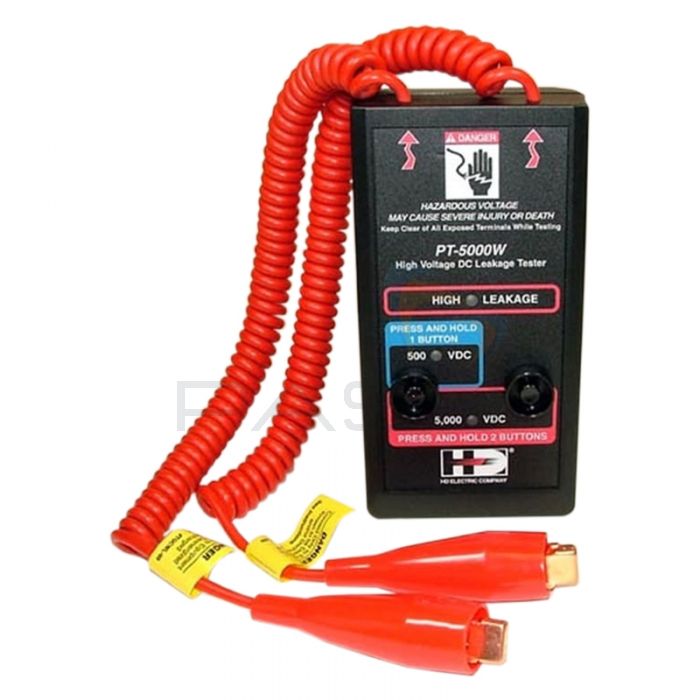

HD Electric PT-5000W High Voltage DC Leakage Tester

The HD Electric PT-5000W High Voltage DC Leakage Tester is designed for testing primary distribution voltage or secondary voltage equipment for faults and high leakage currents. It is only suitable for use on cables and equipment that have been verified as de-energised and discharged.

The user can program the HD Electric PT-5000W High Voltage DC Leakage Tester to issue a test voltage of either 500 VDC or 5000 VDC by pressing and holding the relevant pushbuttons on the unit’s front panel. To issue a 500 VDC test voltage the user needs only press and hold a single pushbutton, whereas two pushbuttons are pressed and held for the 5000 VDC range. The user can see which range has been engaged via the relevant LED indicators. This method of operation prevents accidental operation of the HD Electric PT-5000W High Voltage DC Leakage Tester.

When the 500 VDC test voltage is issued, the HD Electric PT-5000W High Voltage DC Leakage Tester’s High Leakage LED will light up when 1000µA of leakage current is detected. When the HD Electric PT-5000W High Voltage DC Leakage Tester is set to issue a 5000 VDC test voltage the High Leakage LED will illuminate when 100µA of leakage current is detected. The HD Electric PT-5000W High Voltage DC Leakage Tester’s LEDs are super bright.

This easy-to-use, portable, general-purpose insulation tester is lightweight and compact. It is equipped with large copper alligator clips with heavy-duty boots and a heavy-duty rubber insulated coiled test lead. The HD Electric PT-5000W High Voltage DC Leakage Tester is powered by a field-replaceable 9V lithium/ alkaline battery and features a low battery indicator and Auto Shutoff function designed to conserve the instrument’s power.

The HD Electric PT-5000W High Voltage DC Leakage Tester is a safe- and simple-to-use small, general-purpose insulation tester designed for checking de-energised and discharged primary and secondary voltage insulation systems and components such as capacitors, transformers, terminations and insulators.

HD Electric PT-5000W High Voltage DC Leakage Tester Key Features

  • Designed for testing primary distribution voltage or secondary voltage equipment for faults and high leakage currents
  • Only suitable for use on cables and equipment that have been verified as de-energised and discharged
  • Two test voltages: 500 VDC and 5000 VDC
  • Press and hold one pushbutton for the 500 VDC test voltage
  • Press and hold two pushbuttons for the 5000 VDC test voltage
  • Features super-bright LED indicators for each voltage range
  • High Leakage LED indicator
  • Pressing and holding pushbuttons to issue the required test voltage prevents accidental operation
  • High Leakage LED illuminates when 1000µA of leakage current is detected using a 500 VDC test voltage
  • High Leakage LED illuminates when 100µA of leakage current is detected using a 5000 VDC test voltage
  • Easy-to-use, portable, general-purpose insulation tester
  • Lightweight and compact
  • Equipped with large copper alligator clips with heavy-duty boots
  • Heavy-duty rubber insulated coiled test lead
  • Powered by a field-replaceable 9V lithium/ alkaline battery
  • Auto Shutoff function
  • Low battery indicator
  • A safe- and simple-to-use small, general-purpose insulation tester
  • Designed for checking de-energised and discharged primary and secondary voltage insulation systems
  • Can be used to check de-energised and discharged components such as capacitors, transformers, terminations and insulators

What’s Included?

  • HD Electric PT-5000W High Voltage DC Leakage Tester
  • Instruction Manual

HD Electric PT-5000W High Voltage DC Leakage Tester Technical Specifications

Test voltage 500VDC or 5,000VDC nominal
Test current 100 microamps indicated on 5,000VDC range and 1,000 microamps indicated on 500VDC range, 2,000 microamps maximum.
Weight 1 lb, 13.5 oz (0.84 kg)
Dimensions 8”x 4”x 2.5”(20.32 cm x 10.16 cm x 6.35 cm)
Test Leads 21”(53.34 cm) retracted, 54”(137.16 cm) fully extended
Battery 9V lithium or alkaline
