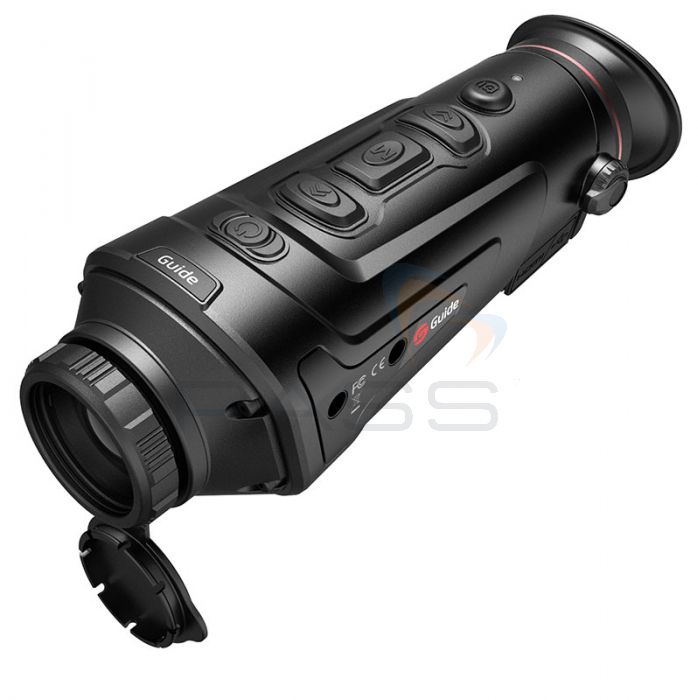

Guide TrackIR Pro Handheld Thermal Monocular – Choice of Model

The Guide TrackIR Pro Handheld Thermal Monocular is optimised for professional hunters. All three models have a 50Hz frame rate and include a thermal detector with a 640 x 480px (at 12µm) resolution. This provides sharp, dynamic, fluid imaging throughout the field-of-view and at significant distances. Please see the following video for a quick overview of the Guide TrackIR Pro Handheld Thermal Monocular.

There are three Guide TrackIR Pro models available; these vary in regards to their detection distances and fields-of-view. Please see the table below for more information.

Thermal Imaging

The Guide TrackIR Pro Handheld Thermal Monocular can be adapted to suit a variety of applications, environments and conditions. To this end, it is equipped with an array of thermal imaging features, functions and modes:

• Smooth Zoom (1-8x): offers flexibility allowing the hunter to pinpoint wildlife quickly
• Stadiametric Rangefinder: measures and displays the distance to targets with a known height in real-time, e.g., rabbits (35cm), boar (90cm), and deer (150cm)
• Picture-in-Picture function: enlarge a specific area of the image without compromising the overall field of view
• Selectable colour palettes: White Hot, Black Hot, Iron Red, Blue Hot, Red Hot and Adjustable Red Hot
• Multiple Scene modes: highlight the target by adapting the image, choose between Enhance, Highlight and Natural modes

Ergonomic & Easy-to-Use

Footage is displayed on the Guide TrackIR Pro Handheld Thermal Monocular’s 0.4-inch, full-colour, 1280 x 960px HD display. Support for Wi-Fi means users can also watch video captured by the Guide TrackIR Pro in real-time on their smartphone/ tablet with the Guide app installed. Additionally, hunters can operate the Guide TrackIR Pro Handheld Thermal Monocular remotely using the Guide App, a smartphone/tablet and a Wi-Fi connection.

When in-the-field, navigating the Guide TrackIR Pro Handheld Thermal Monocular’s features and functions is easy as it includes a simple control interface consisting of three silent and intuitive buttons.

Rugged & Stealthy Design

Silent buttons, noiseless shutter calibration, an anti-light-leakage eyepiece and a work light that can be switched off, all help to conceal the user’s position, making the Guide TrackIR Pro Handheld Thermal Monocular ideal for covert operations.

Moreover, the Guide TrackIR Pro Handheld Thermal Monocular includes a Picatinny rail to which additional accessories, such as a laser rangefinder, lighting and/or power bank (NOT included), can be attached. This allows the user to adapt the IR monocular for security, night patrol, law enforcement, and search and rescue missions.

Additionally, to ensure suitability for outdoor applications, the Guide TrackIR Pro Handheld Thermal Monocular has been designed to include a rugged, IP66-rated casing that has been drop-tested from 1m. It also includes a large-capacity 6000mAH battery that is capable of powering the monocular for approximately 4.5 hours, a USB Type-C port for charging, and a Micro HDMI connection for video transmission.

The Guide TrackIR Pro Handheld Thermal Monocular is a highly sensitive, versatile and ergonomic infrared-imaging camera specifically designed for professional hunting.

Guide TrackIR Pro Handheld Thermal Monocular Key Features

• Optimised for professional hunters
• Thermal detector: 640 x 480px (at 12µm) resolution
• Frame Rate: 50Hz
• Provides fluid, sharp, dynamic imaging throughout the FOV and at significant distances
• Three models available that vary in regards to their detection distances and fields-of-view
• Smooth Zoom (1-8x)
• Stadiametric Rangefinder: measures and displays the distance to targets with a known height
• Picture-in-Picture function
• Selectable colour palettes: White Hot, Black Hot, Iron Red, Blue Hot, Red Hot and Adjustable Red Hot
• Multiple Scene modes: Enhance, Highlight and Natural
• 0.4-inch, full-colour, 1280 x 960px HD display
• Support for Wi-Fi: view footage and operate the monocular using a smartphone or tablet with the Guide app installed
• Three silent, simple and intuitive buttons
• Noiseless shutter calibration
• Anti-light-leakage eyepiece
• Work light can be switched off
• Picatinny rail
• Attach accessories such as a laser rangefinder, lighting and/ or power bank (NOT included)
• Can be adapted for security, night patrol, law enforcement, and search and rescue missions
• Rugged, IP66-rated casing
• Drop-tested from 1m
• Large-capacity 6000mAh battery
• Battery life: 4.5 hours
• USB Type-C port for charging
• Micro HDMI for video transmission
• Highly sensitive, versatile and ergonomic infrared-imaging camera specifically designed for professional hunting

What’s Included?

• Your Choice of Guide TrackIR Pro Handheld Thermal Monocular
• Power Adapter
• USB Cable
• Micro HDMI Cable
• Lens Cover
• Wrist Strap
• Quick Start Guide
