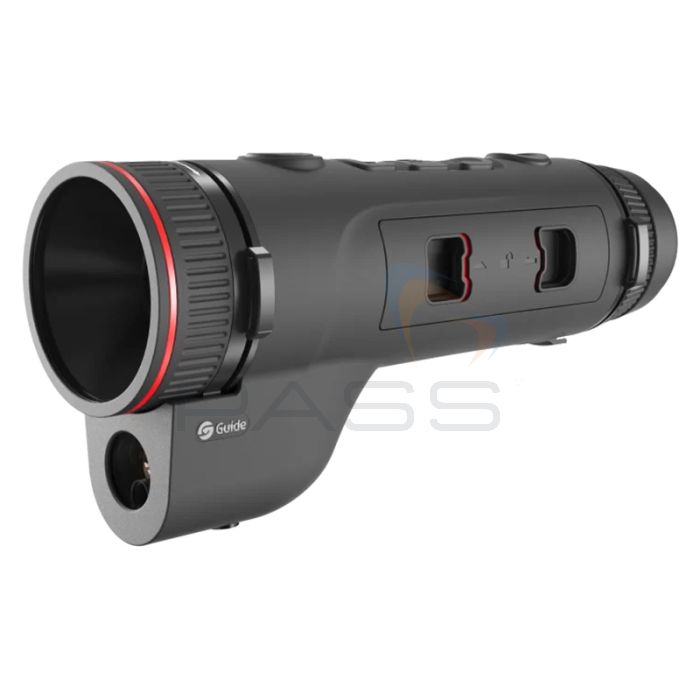

Guide TJ L Series Handheld Thermal Imaging Monocular (400×300)
- 25/35mm F1.0 focal length
- 1000m laser ranging
- 1000/1400m detection range
SKU
TJ-L-420/30
The Guide TJ L Series monoculars boast advanced thermal imaging capabilities, equipped with a high-sensitivity infrared detector for clear night vision. The Full-HD display further enhances these features. With two-hand operation, laser ranging, video recording, and a 12-hour battery life, this device is ideal for nighttime adventures.
A highly sensitive IR detector (NETD < 25mK) distinguishes even slight temperature differences, resulting in sharper imaging. The 1920x1080 HD AMOLED screen provides vibrant colours and excellent image quality, enhancing observation comfort.
The built-in laser rangefinder detects targets up to 1000m, enhancing distance perception. The 25mm F1.0 lens identifies targets within 1000m, while the 35mm F1.0 lens reaches 1400m, offering versatility in various environments.
Key Features
- 12µm advanced thermal detector, NETD<25mK
- Full-HD 1920x1080 AMOLED display
- Laser Range Finder up to 1000m
- The design of the buttons and battery facilitates blind operation in the dark
- Adaptable for left-and right-handed use
- Video recording including sound
- IP67, 12 hours of operation
- 25/35mm F1.0 focal length
- 1000m laser ranging
- 1000/1400m detection range
What's Included?
- Choice of Guide TJ L Series Handheld Thermal Imaging Monocular
- Wrist strap
- Battery charger
- 18650 batteryx2, 5V2A adapter (US, Britain, Australia and Europe)
- USB Type-C cable
- Quick use guide
- Guide warranty card
Product Range
- Guide TJ420L Handheld Thermal Imaging Monocular, 25mm (50Hz)
- Guide TJ430L Handheld Thermal Imaging Monocular, 35mm (50Hz)
Videos
TJ LRF Series Introduction
Introducing the #guidesensmart TJ LRF Series Handheld Thermal Imaging Monocular
Technical Information
Specification
| TJ420L | TJ430L | |
|---|---|---|
| Sensor | ||
| Type | Uncooled VOx Infrared Detector, 8 to 14 µm | |
| Resolution | 400 x 300@12µm | |
| NETD | 25mK | |
| Frame Rate | 50Hz | |
| Lens | ||
| Objective Lens | 25mm, F1.0 | 35mm, F1.0 |
| Field of View | 11.0° x 8.2° | 7.9° x 5.9° |
| FOV m @100m | 19 x 14 | 14 x 10 |
| Magnification | 3.04x~12.16x | 4.25x~17.0x |
| Detection Range | 1000m/yd | 1400m/yd |
| Display | ||
| Display Type | 0.39" AMOLED 1920x1080 | |
| Colour Palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |
| Eyepiece | Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x | |
| Hardware | ||
| Laser Rangefinder | 1000m/yd | |
| WiFi | 2.4G, 5G | |
| Interface | USB Type-C (Power supply/USB2.0) | |
| Others | Microphone, Compass, Gyroscope, Bluetooth | |
| System | ||
| Recording Function | Photo/Video (Audio recording included) | |
| Memory Capacity | 32GB | |
| Power | ||
| Battery Type | 2 replaceable 18650 batteries | |
| Operating Time | 12 hours | |
| Environmental | ||
| Operating Temperature | -20 °C to 50 °C/ -4°F to +122°F | |
| Encapsulation | IP67 | |
| Physical | ||
| Weight(g/ oz) | 558/ 19.68 | 583/ 20.56 |
| Size(mm/ in) | 234 x 97 x 66/9.21 x 3.82 x 2.60 | 243 x 97 x 66/9.57 x 3.82 x 2.60 |
| Optional | Bluetooth remote control, 18650 battery | |
