Fluke SMFT-1000 Solar Multifunction PV Tester – Standard Kit

SKU
FLK-SMFT-1000/KIT-CARE
Rating:
0%
(0)
Reward Points
:
3420
£3,420.00 £2,850.00
1 Option in Stock
Free UK Delivery*
Choose a Special Offer

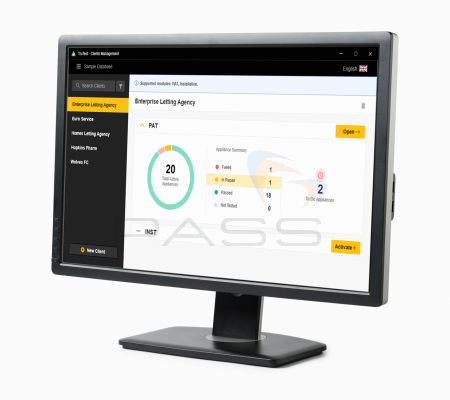

  • Fluke TruTest Data Management and Reporting Software License Code - Advanced
    Fluke TruTest Data Management and Reporting Software License Code - Advanced
    FREE
    £314.00
  • Fluke TruTest Data Management and Reporting Software License Code - Advanced SKU: (FLK-TRUTEST-ADV)
    FREE
    £314.00
    Fluke TruTest Data Management and Reporting Software License Code - Advanced
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Free TruTest Software
Fluke SMFT-1000 Solar Multifunction PV Tester – Standard Kit

Fluke SMFT-1000 Solar Multifunction PV Tester – Standard Kit

Specifically designed for solar professionals such as electricians and technicians involved in commissioning, maintaining, and troubleshooting solar/PV installations, the Fluke SMFT-1000 Solar Multifunction PV Tester is an all-in-one photovoltaic testing solution, performance analyser, and I-V curve tracer. It can test solar systems operating at a maximum of 1000V and conforms to IEC 62446-1 standard.

Watch the videos below with Fluke's product specialist to discover how the SMFT-1000 is designed especially for Solar professionals.

Optional Fluke Premium Care - 1 Year (UK Only)

  • Accidental damage and repair costs included
  • Expedited calibration and repair
  • Annual tool inspection, calibration, and updating
  • Replacement of damaged accessories (Some limitations apply, see Fluke Terms and Conditions)

Select the Premium Care option in the dropdown box when choosing the model you wish to purchase, only available for users in the UK. Please visit our Blog for more information.

Tests

Easily accessible controls on the front of the Fluke SMFT-1000 Solar Multifunction PV Tester enable resistance, polarity, voltage, current, power AC/DC, function, insulation resistance, I-V curve, and diode testing. Auto Test mode allows you to perform automatic test sequences in a variety of combinations, for example:

  • With or without the insulation test
  • Category 1 or category 1 and 2 tests (compliant with IEC 62446-1)
  • Protection Class I or Protection Class II tests (compliant with IEC 62446-1)

The table below offers an overview of the tests included in some of the Fluke SMFT-1000's automatic sequences.

Full Sequence Safety Testing - IEC 62446-1 Category 1 Protective resistance earth RLO
Voltage on open circuit, including polarity VOC
Short circuit current ISC
Insulation resistance RINS
System Performance Testing - IEC 62446-1 Category 2 I-V Curve tracing and software analysis with TruTest™
Irradiance, temperature, tilt, cardinal direction

I-V Curve Tracing

The supplied Fluke IRR2-BT Irradiance Meter gathers real-time temperature and irradiance data. It wirelessly connects to the SMFT-1000 enabling the transfer of up-to-the-second readings and, therefore, accurate I-V curve measurements. Should this connection falter, the Fluke IRR2 Irradiance Meter will log data to its memory for up to seventeen hours.

When gathering I-V curve readings in the field, the tester displays the curve as it loads allowing you to compare it against the manufacturer’s module specifications. This makes it quicker and easier to confirm measurements without a laptop/tablet.

Keep the Leads

Reduce the time spent on set-up and decrease user errors with the Keep the Leads system. With this function, test leads only need to be connected to the system once, allowing you to perform all necessary tests quickly and easily.

Colour Screen

Measurements are further simplified by the colour display with on-screen instructions that guide you through each test.

Visual Inspection

To comply with IEC regulations for inspecting PV systems, the Fluke Solar Multifunction Tester includes a setting for recording the details of visual observations. This information can be subsequently imported into Fluke’s TruTest Software (sold separately) to be incorporated into reports.

The Fluke SMFT-1000 Solar Multifunction PV Tester is a complete solar installation testing solution optimised for speed and simplicity.

Product Testimonial

Solar Safety Inspection with SMFT 1000

Videos

PASS Presents - The Ultimate Tool for Solar Pros

Discover the Fluke SMFT1000 for Comprehensive Solar Panel Testing

Fluke SMFT-1000 Solar MFT

Fluke SMFT 1000 Solar Kit Introduction - LIVE at RE+ 2022!

Fluke IRR2-BT Wireless Irradiance Meter to Calculate I-V Curve

Introducing the Fluke IRR2-BT: Wireless Irradiance to Calculate I-V Curve

I-V Curve and Safety Testing

I-V Curve and Safety Testing with the Fluke SMFT-1000 Analyzer

Key Features

  • Specifically designed for electricians and technicians involved in commissioning, maintaining, and troubleshooting solar/PV installations
  • An all-in-one photovoltaic testing solution, performance analyser, and I-V curve tracer
  • Test solar systems that operate at up to 1000 V
  • Conforms to IEC 62446-1 standards
  • Resistance, polarity, voltage, current, power AC/DC, function, insulation resistance, I-V curve, and diode tests
  • Auto Test mode
  • IRR2 Irradiance Meter gathers real-time temperature and irradiance data
  • IRR2 Meter connects wirelessly to the SMFT-1000 enabling real-time data transfer
  • IRR2 Meter will log readings for up to 17 hours if the wireless connection breaks
  • Displays I-V curve as it loads making it quicker and easier to confirm measurements without a laptop/tablet
  • Keep the Leads system for one-time test lead configuration
  • Colour display with on-screen instructions
  • Visual inspection setting for recording observations
  • Compatible with Fluke’s TruTest analysis and reporting software (sold separately)
  • A complete solar installation testing solution optimised for speed and simplicity

What’s Included?

  • Fluke SMFT-1000 Solar Multifunction PV Tester

    • Carry Strap
    • Fuse Pack
    • Adapter Cable IRDA Optical-to-USB
    • Zero Adapter
    • Fluke SMFT Professional Tool Backpack
  • Fluke IRR2-BT Wireless Solar Irradiance Meter

    • Fluke 80PR-IRR External Temperature Probe
    • Mounting Bracket for Solar Panel
    • Carry Case
  • Fluke i100 AC/DC Current Clamp (100 A)

    • TPAK Magnet Set
  • Fluke TP1000 Test Probe with Remote Test Button
  • Fluke TL1000 Test Lead Set
  • Fluke TL1000-MC4 Test Lead Set
  • Fluke TL1000/30M Test Lead on Reel
  • Coupler Set
  • 6x AA Batteries
  • Optional 1-Year Premium Care (UK Only)

Product Range

  • Fluke SMFT-1000/KIT Solar Multifunction PV Tester - Standard Kit
  • Fluke SMFT-1000/FPC EU Solar Multifunction PV Tester - Standard Kit & 1-Year Premium Care (UK Only)
Fluke SMFT-1000 Solar Multifunction PV Tester - Fluke SMFT-1000 Fluke SMFT-1000 Solar Multifunction PV Tester - Fluke IRR2-BT Fluke SMFT-1000 Solar Multifunction PV Tester - Fluke i100 Fluke SMFT-1000 Solar Multifunction PV Tester - Fluke SMFT-1000, Fluke IRR2-BT & Fluke i100 Fluke SMFT-1000 Solar Multifunction PV Tester - Standard Kit.

Fluke SMFT-1000 Solar Multifunction PV Tester Technical Specifications

Protective conductor resistance (RLo)
Display range Measuring range Resolution Accuracy
0.00 Ω - 19.99 Ω 0.20 Ω - 19.99 Ω 0.01 Ω ± (2 % + 2 Digit)
20.0 Ω- 199.9 Ω 20.0 Ω - 199.9 Ω 0.1 Ω ± (2 % + 2 Digit)
200 Ω - 2000 Ω 200 Ω - 2000 Ω 1 Ω ± (5 % + 2 Digit)
Test Current  ≥ 200 mA (≤ 2Ω + Rcomp)
Test voltage 4 V DC … 10 V DC
Polarity reversing Yes
Test lead zero (Rcomp) Up to 3 Ω
PV module/PV string, open-circuit voltage (Voc)
Display range Measuring range Resolution Accuracy
0.0 V - 99.9 V 5.0 V - 99.9 V 0.1 V ± (0.5 % + 2 Digit)
100 V - 1000 V 100 V - 1000 V 1 V ± (0.5 % + 2 Digit)
Polarity test Yes
PV module/PV string, short-circuit current (Is/c)
Display range Measuring range Resolution Accuracy
0.0 A - 20.0 A 0.2 A - 20.0 A 0.1 A ± (1 % + 2 Digit)
Insulation resistance (RINS)
Display range Measuring range Resolution Accuracy
0.00 MΩ - 99.99 MΩ 0.20 MΩ - 99.99 MΩ 0.01 MΩ ± (5 % + 5 Digit)
100.0 MΩ - 199.9 MΩ 100.0 MΩ - 199.9 MΩ 0.1 MΩ ± (10 % + 5 Digit)
200 MΩ - 999 MΩ 200 MΩ - 999 MΩ 1 MΩ ± (20 % + 5 Digit)
Blocking diode checking (Vbd)
Display range Measuring range Resolution Accuracy
0.00 V DC - 6.00 V DC 0.50 V DC - 6.00 V DC 0.01 V DC ± (5 %  + 10 Digit)
Surge protection device (SPD)
Display range Measuring range Resolution Accuracy
0 V DC - 1000 V DC 50 V DC - 1000 V DC 1 V DC ± (10 % + 5 Digit)
AC/DC voltage measurement via 4 mm test sockets
Display range Measuring range Resolution Accuracy
0.0 V AC - 99.9 V AC 5.0 V AC - 99.9 V AC 0.1 V ± (2.5 % + 2 Digit)
100 V AC - 700 V AC 100 V AC - 700 V AC 1 V ± (2.5 % + 2 Digit)
0.0 V DC - 99.9 V DC 5.0 V DC - 99.9 V DC 0.1 V ± (2.5 % + 2 Digit)
100 V DC - 1000 V DC 100 V DC - 1000 V DC 1 V ± (2.5 % + 2 Digit)
Detection AC/DC Yes (Automatic)
+ / - polarity  check Yes
AC/DC with i100 clamp
Display range Measuring range Resolution Accuracy (DC, AC 50 Hz/60 Hz)
0.0 A DC – 100 A DC 1.0 A DC – 100 A DC 0.1 A ± (5 % + 2 Digit) *
0.0 A AC – 100 A AC TRMS 1.0 A AC – 100 A AC TRMS 0.1 A ± (5 % + 2 Digit) *
* i100 clamp tolerances not inclusive
i100 Clamp Tolerances
Display range Measuring range Output signal Accuracy (DC, AC 50 Hz/60 Hz)
N/A 1 A - 100 A DC or AC < 1 kHz 10 mV/A AC/DC ± (1.5 % + 0.1 A)
AC/DC Power measurement (with i100 clamp)
Display range Measuring range Resolution Accuracy (DC, AC 50 Hz/60 Hz)
0.0 V AC - 700 V AC
0.0 V DC - 1000 V DC
5.0 V AC - 700 V AC
5.0 V DC - 1000 V DC
0.1 V ± (2.5 % + 2 Digit)
0 A AC/DC - 100 A AC/DC 1 A AC/DC- 100 A AC/DC 0.1 A ± (6.5 % + 3 Digit)
0 kW/kVA – 100 kW/kVA 5 kW/kVA – 100 kW/kVA 1 kW/kVA ± (10 % + 4 Digit)
General Specifications
SMFT-1000 size 10 cm x 25.0 cm x 12.5 cm (3.8 in x 9.8 in x 4.9 in)
SMFT-1000 weight 1.4 kg (3.09 lb)
Battery 6 AA IEC LR6
Operating temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage temperature -30 °C to 60 °C (-22 °F to 140 °F) batteries removed
Operating altitude up to 2000 m
Storage altitude up to 2000 m
Safety
SMFT-1000 PV Analyzer IEC 61010-1 Pollution Degree 2
IEC 61010-2-034 CAT III 1000 V dc, CAT III 700 V AC
i100 Current Clamp IEC 61010-2-032, Type D (for insulated conductors), 1000 V
Accessories IEC 61010-031
TL1000-MC4 CAT III 1500 V, 20 A
TP1000 Remote Probe (with cap) CAT IV 600 V, CAT III 1000 V, 10 A
TP1000 Remote Probe (without cap) CAT II 1000 V, 10 A
TL1000 Test Leads CAT III 1000 V, 10 A
TL1000/30M Test Leads CAT III 1000 V, CAT IV 600 V,
5 A (on reel) 10 A (fully extended)
TP74 Test Probes (with cap) CAT III 1000 V, 10 A
TP74 Test Probes (without cap) CAT II 1000 V, 10 A
AC285 Alligator Clip CAT III 1000 V, 10 A
Performance IEC 61557-1, IEC 61557-2, IEC 61557-4, IEC 61557-10
Electromagnetic Compatibility (EMC)
International IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A
Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself.
Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances.
Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments.
Wireless Radio Module
Frequency Range 2.402 GHz to 2.480 GHz
Output Power 8 dBm
Fluke SMFT-1000 Solar Multifunction PV Tester - Datasheet Datasheets Fluke TP1000 Test Probe with Remote Test Button - Safety Sheet Manuals & Guides Fluke i100 Current Clamp - Instruction Sheet Manuals & Guides Fluke SMFT-1000 Solar Multifunction PV Tester - User Manual Manuals & Guides Fluke TL1000-MC4 Test Lead Set - Safety Sheet Manuals & Guides Fluke SMFT-1000 Solar Multifunction PV Tester - Quick Reference Guide Manuals & Guides Fluke TL1000-MC4 Test Lead Set - Safety Sheet Supplement Manuals & Guides Fluke SMFT-1000 Solar Multifunction PV Tester - Statement of Memory Volatility Certifications & Declarations
