Fluke MDA-550-III Motor Drive Analyser – 4 Channels, 500MHz

SKU
FLUKE-MDA-550-III-CARE
Rating:
0%
(0)
Reward Points
:
7666
£7,666.80 £6,389.00
1 Option in Stock
Free UK Delivery*
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Price Drop | Save up to £1428
Fluke MDA-550-III Motor Drive Analyser & Accessories

The Fluke MDA-550-III Motor Drive Analyser is a portable, four-channel motor-drive analysis test tool, wave analyser, and data logger with a bandwidth of 500MHz. It can be used to troubleshoot inverter-type motor-drive systems and safely locate problems. Guided test setups simplify troubleshooting while measurement profiles ensure comprehensive data collection and an integrated report generator creates as-found and as-left reports quickly and easily.

The Fluke MDA-550-III Motor Drive Analyser can measure key motor-drive parameters such as:

  • Voltage
  • Current
  • DC bus voltage level and AC ripple
  • Voltage and current unbalance
  • Harmonics (including extended harmonics measurements)
  • Voltage modulation
  • Motor shaft voltage discharges

The Fluke MDA-550-III Motor Drive Analyser offers guided motor-drive input, DC bus, drive output, and motor input and shaft (with graphical step-by-step voltage and current connection diagrams) measurements. You need only select the required test and the Fluke MDA-550-III Motor Drive Analyser will provide step-by-step instructions, including voltage and current connections, thereby making even the most complex of measurements simple.

Additionally, preset measurement profiles ensure you capture all the relevant information for each critical motor-drive section by triggering data collection based on the chosen test procedure. Furthermore, the Fluke MDA-550-III Motor Drive Analyser creates reports quickly and easily from gathered data due to the inclusion of a report generator.

Finally, the Fluke MDA-550-III Motor Drive Analyser offers the highest safety rating in the industry: CAT IV 600V/ CAT III 1000V for use at the service entrance and downstream.

The Fluke MDA-550-III Motor Drive Analyser is a three-in-one motor-drive analyser, waveform analyser, and recording data logger capable of delivering reliable, repeatable test results.

Optional Fluke Premium Care - 1 Year (UK Only)

Fluke Premium Care - 1-Year at no extra cost! Fluke Premium Care - 1-Year at no extra cost!

  • Accidental damage and repair costs included
  • Expedited calibration and repair
  • Annual tool inspection, calibration, and updating
  • Replacement of damaged accessories (Some limitations apply, see Fluke Terms and Conditions)

Select the Premium Care option in the dropdown box when choosing the model you wish to purchase, only available for users in the UK. Please visit our Blog for more information.

Fluke MDA-550-III Motor Drive Analyser Key Features

  • A portable, four-channel, motor-drive analysis test tool, wave analyser, and data logger
  • Bandwidth: 500MHz
  • Troubleshoot inverter-type motor-drive systems and safely locate problems
  • Guided test setups simplify troubleshooting and measurements
  • Guided setups for motor-drive input, DC bus, drive output, and motor input and shaft
  • Guided setups provide step-by-step instructions including voltage and current connections
  • Measurement profiles ensure comprehensive data collection by triggering collection based on the chosen test procedure
  • Integrated report generator: create as-found and as-left reports quickly and easily
  • Voltage
  • Current
  • DC bus voltage level and AC ripple
  • Voltage and current unbalance
  • Harmonics (including extended harmonics measurements)
  • Voltage modulation
  • Motor shaft voltage discharges
  • Highest safety rating in the industry: CAT IV 600V/ CAT III 1000V
  • Three-in-one motor-drive analyser, waveform analyser, and recording data logger
  • Delivers reliable, repeatable test results

What’s Included?

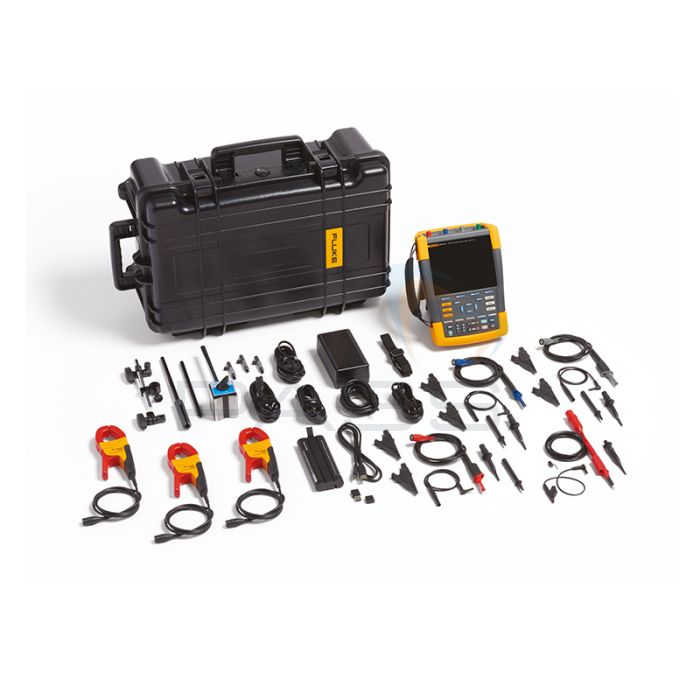

  • 1x Fluke MDA-550-III Motor Drive Analyser – 4 Channels, 500MHz
  • 1x BP291 Li-Ion Battery
  • 1x BC190 Charger/ Power Adapter
  • 3x VPS421 High-Voltage Probes with Alligator Clips
  • 1x VPS410-II-R Voltage Probe
  • 3x i400s AC Current Clamp
  • 1x SVS-500 Shaft Voltage Set (3x Brush, Probe Holder, Two-Piece Extension Rod and Magnetic Base)
  • 1x Large Protective Carrying Case with Rollers
  • FlukeView-2 PC Software (Full Version)
  • Wi-Fi Dongle
  • Optional Fluke Premium Care - 1 Year (UK Only)

Product Range

  • Fluke MDA-550-III Motor Drive Analyser
  • Fluke MDA-550/FPC EU Motor Drive Analyser & 1-Year Premium Care (UK Only)

Fluke MDA-550-III Motor Drive Analyser Technical Specifications

Measurement and Analysis Combinations
Test point Subgroup Reading 1 Reading 2 Reading 3 Reading 4
Motor drive input
Voltage and current
Phase-phase V-A-Hz V ac+dc A ac+dc Hz -
V peak V peak max V peak min V pk-to-pk Crest factor
A peak A peak max A peak min A pk-to-pk Crest factor
Phase-ground V-A-Hz V ac+dc A ac+dc Hz -
V peak V peak max V peak min V pk-to-pk Crest factor
A peak A peak max A peak min A pk-to-pk Crest factor
Voltage unbalance Unbalance V ac+dc V ac+dc V ac+dc Unbalance
Peak V pk-to-pk V pk-to-pk V pk-to-pk -
Current unbalance Unbalance A ac+dc A ac+dc A ac+dc Unbalance
Peak A pk-to-pk A pk-to-pk A pk-to-pk -
Motor drive DC bus
DC - V dc V pk-to-pk V peak max -
Ripple - V ac V pk-to-pk Hz -
Motor drive output
Voltage and current (filtered) V-A-Hz V PWM A ac+dc Hz V/Hz
V peak V peak max V peak min V pk-to-pk Crest factor
A peak A peak max A peak min A pk-to-pk Crest factor
Voltage unbalance Unbalance V PWM V PWM V PWM Unbalance
Peak V pk-to-pk V pk-to-pk V pk-to-pk -
Current unbalance Unbalance A ac+dc A ac+dc A ac+dc Unbalance
Peak A pk-to-pk A pk-to-pk A pk-to-pk -
Voltage modulation
Phase-phase Zoom 1 V PWM V pk-to-pk Hz V/Hz
Zoom 2 V peak max V peak min Delta V -
Zoom 3 peak V peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Phase-ground Zoom 1 V PWM V pk-to-pk V peak max V peak min
Zoom 2 V Peak max V peak min Delta V Hz
Zoom 3 peak V Peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Phase-DC + Zoom 1 V PWM V pk-to-pk V Peak max V peak min
Zoom 2 V peak max V peak min Delta V Hz
Zoom 3 peak V peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Phase-DC - Zoom 1 V PWM V pk-to-pk V peak max V peak min
Zoom 2 V peak max V peak min Delta V Hz
Zoom 3 peak V peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Motor input
Voltage and current (filtered) V-A-Hz V PWM A ac+dc Hz V/Hz
V peak V peak max V peak min V pk-to-pk Crest factor
A peak A peak max A peak min A pk-to-pk Crest factor
Voltage unbalance Unbalance V PWM V PWM V PWM Unbalance
Peak V pk-to-pk V pk-to-pk V pk-to-pk -
Current unbalance Unbalance A ac+dc A ac+dc A ac+dc Unbalance
Peak A pk-to-pk A pk-to-pk A pk-to-pk -
Voltage modulation
Phase-phase Zoom 1 V PWM V pk-to-pk Hz V/Hz
Zoom 2 V peak max V peak min Delta V -
Zoom 3 peak V peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Phase-ground Zoom 1 V PWM V pk-to-pk V peak max V peak min
Zoom 2 V peak max V peak min Delta V Hz
Zoom 3 peak V peak max Delta V/s Risetime peak Overshoot
Zoom 3 level Delta V Delta V/s Risetime level Overshoot
Motor shaft
Shaft voltage Events off V pk-to-pk - - -
Events on Delta V Rise/fall time Delta V/s Events/s
Motor drive input, output and motor input
Harmonics Voltage V ac V fundamental Hz fundamental % THD
Current A ac A fundamental Hz fundamental % THD/TDD
Measurement Function Specification
DC voltage (V dc)
Maximum voltage with 10:1 or 100:1 probe 1000 V
Maximum resolution with 10:1 or 100:1 probe (voltage to ground) 1mV / 10mV
Full-scale reading 999 counts
Accuracy at 4 s to 10 us/div ± (1.5 % + 6 counts)
True-RMS voltage (V ac or V ac + dc) (with DC coupling selected)
Maximum voltage with 10:1 or 100:1 probe (voltage to ground) 1000 V
Maximum resolution with 10:1 or 100:1 probe 1 mv / 10 mV
Full-scale reading 999 counts
DC to 60 Hz ± (1.5 % + 10 counts)
60 Hz to 20 kHz ± (2.5 % + 15 counts)
20 kHz to 1 MHz ± (5 % + 20 counts)
1 MHz to 25 MHz ± (10 % + 20 counts)
PWM voltage (V pwm)
Purpose To measure pulse width modulated signals, like motor drive inverter outputs
Principle Readings show the effective voltage based on the average value of samples over a whole number of periods of the fundamental frequency
Accuracy As Vac+dc for sinewave signals
Peak voltage (V peak)
Modes Max peak, min peak, or pk-to-pk
Maximum voltage with 10:1 or 100:1 probe (voltage to ground) 1000 V
Maximum resolution with 10:1 or 100:1 probe 10 mV
Accuracy
Max peak, min peak ± 0.2 division
Pk-to-pk ± 0.4 division
Full-scale reading 800 counts
Current (AMP) with current clamp
Ranges Same as V ac, Vac+dc or V peak
Scale Factors 0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50mV/A, 100 mV/A, 200 mV/A, 400 mV/A
Accuracy Same as Vac, Vac+dc or V peak (add current clamp accuracy)
Frequency (Hz)
Range 1.000 Hz to 500 MHz
Full-scale reading 9999 counts
Accuracy ± (0.5 % + 2 counts)
Voltage/Herz ratio (V/Hz)
Purpose To show the measured V PWM value (see V PWM) divided by the fundamental frequency on vari- able ac motor speed drives
Accuracy % Vrms + % Hz
Voltage unbalance drive input
Purpose To show the highest percentage difference of one of the phase vs average of the 3 true-rms voltages
Accuracy Indicative percentage based on Vac+dc values
Voltage unbalance drive output and motor input
Purpose To show the highest percentage difference of one of the phase vs average of the 3 PWM voltages
Accuracy Indicative percentage based on V PWM values
Current unbalance drive input
Purpose To show the highest percentage difference of one of the phase vs average of the 3 AC current values
Accuracy Indicative percentage based on Aac+dc values
Current unbalance drive output and motor input
Purpose To show the highest percentage difference of one of the phase vs average of the 3 AC current values
Accuracy Indicative percentage based on A ac values
Rise and fall time
Readings Voltage difference (dV), time difference (dt), voltage vs time difference (dV/dt), overshoot
Accuracy As oscilloscope accuracy
Harmonics and spectrum
Harmonics DC to 51st
Spectrum ranges 1…9 kHz, 9-150 kHz (20 MHz filter on), up to 500 MHz (voltage modulation)
Shaft voltage
Events / second Indicative percentage based on rise and fall time (Impulse discharges) measurements
Report data capture
Number of screens Typical 50 screens can be saved in reports (depends on compression ratio)
Transfer to PC Using 32 GB or smaller 2 GB USB stick or mini-USB to USB cable or WiFi link and FlukeView™ 2 for ScopeMeter®
Probe settings
Voltage Probe 1:1, 10:1, 100:1, 1000:1, 20:1, 200:1
Current Clamp 0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50 mV/A, 100 mV/A, 200 mV/A, 400 mV/A
Shaft Voltage Probe 1:1, 10:1, 100:1
Safety
General IEC 61010-1: Pollution Degree 2
Measurement Measurement IEC 61010-2-030: CAT IV 600 V / CAT III 1000 V
Maximum voltage between any Terminal and Earth Ground 1000 V
Max. input voltages Via VPS410-II or VPS421 1000 V CAT III / 600 V CAT IV
BNC Input A, B, C, D directly 300 V CAT IV
Max. Floating Voltage, test tool or test tool with VPS410-II / VPS421 voltage probe From any terminal to earth ground 1000 V CAT III / 600 V CAT IV Between any terminal 1000 V CAT III / 600 V CAT IV
Working voltage between probe tip and probe reference lead VPS410-II: 1000 V
VPS421: 2000 V
