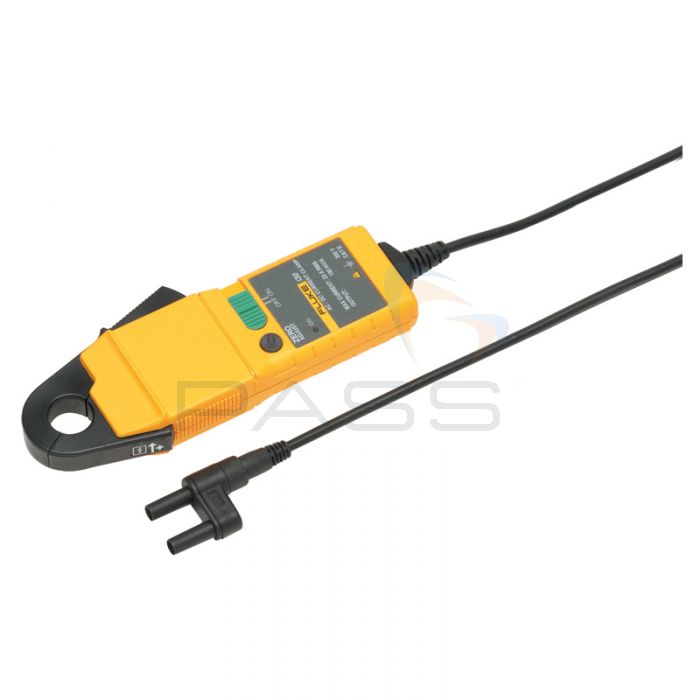

Fluke i30 AC/DC Current Clamp (30A)

Measure AC and DC
19mm diameter jaws
Suitable for clamping onto smaller cables/conductors

SKU

i30

MPN

2584920

View All Clamp Adaptors

Description Technical Info Reviews

The Fluke i30 is used to measure AC and DC current and attached to other devices such as multimeters to enable current measurements to be taken.

Featuring 19mm diameter jaws, this clamp is best suited to clamping onto smaller cables/conductors and can measure from 30mA to 30A DC and 30mA to 20A AC rms.

This device uses hall effect technology to carry out measurements and provides accurate measurements of current without the need to break a circuit or use a full clamp meter.

£465.00

£558.00 inc vat

Free Delivery*

465 Reward Points 60 Days Return

Technical Information

Specification

Specifications

Specified current range 30 mA to 30A dc, 30 mA to 20 A ac rms
Usable current range 5 mA to 30 A dc, 30 mA to 20 A ac rms
Crest Factor 1.4"
Output sensitivity 100 mV/A
Accuracy (at +25 °C) ± 1 % of reading ± 2 mA
Resolution ± 1 mA
Load impedance > 10 k Ohms and ≤ 100pF
Conductor position sensitivity ± 1 % relative to center reading
Frequency range DC to 20 kHz (- 0.5 dB)
Temperature coefficient ± 0.01 % of reading/°C
Power supply 9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator
Working voltage (see Safety Standards section) 300 V ac rms or dc
Maximum conductor size 19 mm diameter
Output connection 4 mm safety connector
Output zero Manual adjust via thumbwheel
Cable length 1.5 meters
Operating temperature range 0 °C to +50 °C
Storage temperature range (with battery removed) -20 °C to +85 °C
Operating humidity 15 % to 85 % (non-condensing)
Weight 250 g Safety standards BS EN 61010-1:2001 BS EN 61010-2-032:2002 BS EN 61010-031:2002 300 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 300 V ac rms or dc and frequencies below 1 kHz.
EMC Standards EN 61326: 1998 +A1, A2, & A3
