Fluke 922 Airflow Meter

The Fluke 922 is a tiny tester that's capable of measuring air pressure, air velocity, air flow and temperature in various HVAC applications. This makes this instrument suitable for everything from general air flow testing to matching ventilation to occupant loads and measuring pressure drops across filters and coils.

This air meter is also capable of measuring in various different units depending on what type of test is taking place. It can measure air pressure in pascals, in H20, mm H20, mbar and PSI, air velocity in fpm and m/s, air flow (volume) in cfm, m3/hr and l/s and temperature in both Celsius and Fahrenheit. All measurements are carried out with high resolution and accuracy to ensure you can always trust your measurement readings.

When measuring ducts, the 922 includes an extremely handy feature that allows the technician using the tester to define the shape and dimensions of the duct, thus ensuring measurement accuracy is maintained when calculating air flow. To aid with seeing the meter inside ducts and other darkened environments it also includes a backlight that will illuminate the screen.

The 922 also contains a built-in datalogger that can store 99 readings.

Note: The 922 is also available in a kit that contains additional items such as a pitot tube and a durable hard carrying case.

Fluke 922 Airflow Meter Key Features

• Comprehensive HVAC analysis tool
• Measure air pressure, air velocity, air flow and temperature
• IP40 rated
• 375 hour typical battery life with backlight disabled, 80 hours when switched on
• Data storage of 99 readings
• MIN/MAX/AVG functions
• Data hold function
• Enter information about duct size and dimensions to ensure measurement accuracy
• Coloured hoses
• Rugged design made for use out in the field

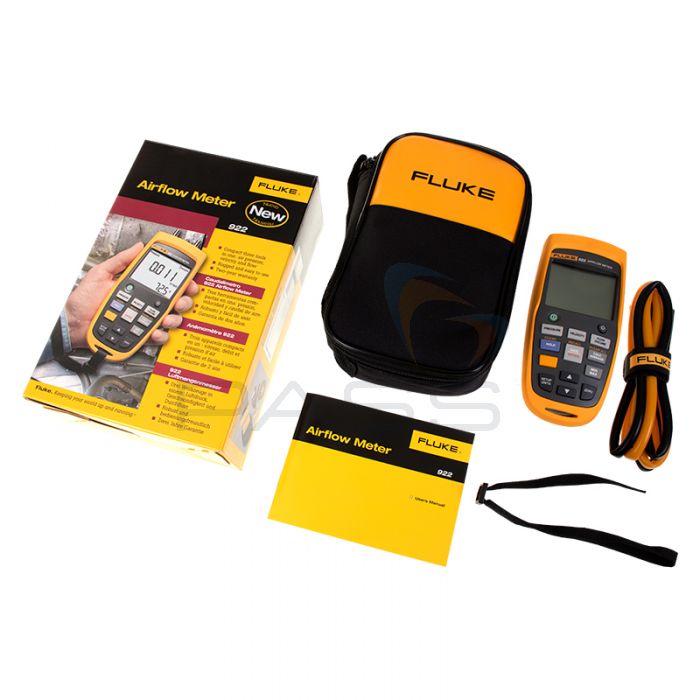

Full List of Products Included

• Fluke 922 Airflow Meter
• 2 x Rubber Hoses
• Wrist Strap
• 4 x AA Batteries (1.5V Alkaline)
• User Manual
• Soft Carrying Case
