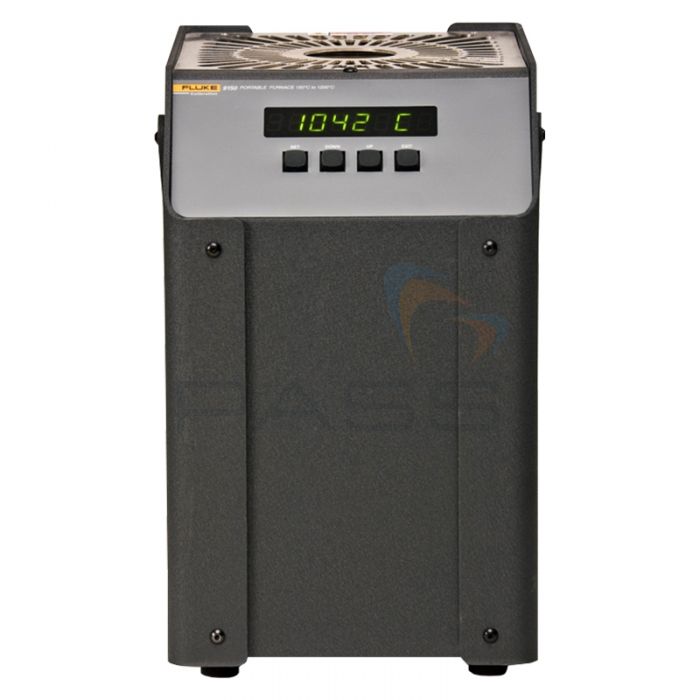

Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert
- Temperature range: 150°C to 1200°C
- Cost-effective, adaptable, versatile instrument ideal for calibrating industrial thermocouples
- Available in five models with different disc inserts
SKU
Fluke 9150-X-256
MPN
3015916
The Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert can be used to calibrate industrial thermocouples. This instrument’s extensive temperature range, 150°C to 1200°C, makes it suitable for a number of applications. It has an accuracy of ±5°C and a stability of ±0.5°C.
The Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert is available in five models which vary with regards to their included disc inserts. Each disc insert features a number of wells optimised to hold thermocouples of varying diameters, please see the table below for further details.
| Product Code | Product Name | Disc Insert Name | Disc Insert Code | Wells in Disc Insert |
| 9150-A-256 | Fluke 9150-A-256 Thermocouple Furnace | A | 3150-2 | 1/16" (1.6mm), 1/4" (6.35mm), 3/8in (9.5mm), 3/16" (4.8mm), 1/8" (3.2mm), 1/2" (12.7mm) |
| 9150-B-256 | Fluke 9150-B-256 Thermocouple Furnace | B | 3150-3 | 3/16" (4.8mm), 1/4" (6.35mm), 3/8" (9.5mm), 3/16" (4.8mm), 1/4" (6.35mm), 3/8" (9.5mm) |
| 9150-C-256 | Fluke 9150-C-256 Thermocouple Furnace | C | 3150-4 | 6x 1/4" (6.35mm) |
| 9150-D-256 | Fluke 9150-D-256 Thermocouple Furnace | D | 3150-6 | 3mm, 4mm, 6mm, 3mm, 4mm, 6mm |
| 9150-DW-256 | Fluke 9150-DW-256 Thermocouple Furnace | DW | NO INSERT | NO INSERT |
As these discs are interchangeable, the user can easily tailor the Fluke 9150-X-256 Thermocouple Furnace to his/her application. Interchangeable discs also facilitate the instrument's ability to check thermocouples with diameters as small as 1/16 of an inch.
The Fluke 9150-X-256 Thermocouple Furnace can be operated using either a 115V or 230V AC power supply. It’s integrated Fluke microprocessor-based controller ensures that this calibrator’s stability and accuracy are maintained. It is capable of stabilising within twenty minutes and can heat from ambient to 1200°C in 35 minutes.
The Fluke 9150-X-256 Thermocouple Furnace is factory-calibrated and supplied with NIST-traceable test data and calibration.
Finally, this instrument also includes an RS-232 port which facilitates a connection between the Fluke 9150-X-256 Thermocouple Furnace and the user’s PC.
The Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert is a cost-effective, adaptable, extensive temperature calibrator, ideal for checking industrial thermocouples.
Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert Key Features
- Calibrate industrial thermocouples
- Temperature range: 150°C to 1200°C
- Accuracy: ±5°C
- Stability: ±0.5°C
- Available in five models with varying disc inserts
- Disc inserts are interchangeable
- Each insert features a number of wells of various sizes optimised to hold thermocouples with different diameters
- Can be used to check thermocouples with diameters as small as 1/16” (when used with the appropriate disc insert)
- Can be operated using either a 115V or 230V AC power supply
- The integrated microprocessor-based controller maintains the calibrator's stability and accuracy
- Stabilises within 20 minutes
- Can heat from ambient to 1200°C in 35 minutes
- Factory-calibrated
- Supplied with NIST-traceable test data and calibration
- RS-232 port facilitates a connection to the user’s PC
- Cost-effective, adaptable, extensive temperature calibrator
- Ideal for checking industrial thermocouples
What’s Included?
- Your Choice of Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert
- NIST-traceable calibration
£5,579.00
£6,694.80 inc vat
Technical Information
Specification
Fluke 9150-X-256 Thermocouple Furnace – Choice of Insert Technical Specifications
| Temperature Range | 150 °C to 1200 °C (302 °F to 2192 °F) |
| Display Resolution | 0.1 ° to 999.9 ° 1 ° above 1000 ° |
| Stability | ±0.5 °C |
| Display Accuracy | ±5 °C |
| Well Diameter | 1.25 in (32 mm) |
| Well Depth | 140 mm (5.5 in); (101 mm [4 in] removable insert plus 38 mm [1.5 in] insulator) |
| Heating Time | 35 minutes to 1200 °C |
| Cooling Time | 140 minutes with block |
| Well-to-Well Uniformity | ±2.5 °C (Insert “C" at 1200 °C) |
| Stabilization | 20 minutes |
| Power | 115 V AC (±10 %), 10.5 A or 230 V AC (±10 %), 5.2 A, switchable, 50/60 Hz, 1200 W |
| Size (HxWxD) | 315 mm x 208 mm x 315 mm (12.4 in x 8.2 in x 12.4 in) |
| Weight | 13 kg (28 lb.) |
| NIST-Traceable Calibration | Data at 150 °C, 300 °C, 450 °C, 600 °C, 800 °C, 1000 °C, and 1200 °C |
