Fluke 87V MAX True-RMS Digital Multimeter

*** Please note that the Fluke 87V MAX True-RMS Digital Multimeter is a NEW release for 2019 and has an approximate lead time of four weeks. ***

The Fluke 87V MAX True-RMS Digital Multimeter is IP67-rated; this rugged, waterproof, and dustproof DMM is ideal for industrial and facilities maintenance electricians working in outdoor, wet, dusty and/or hazardous locations.

Rugged and Practical Design

The purpose of the Fluke 87V MAX True-RMS Digital Multimeter is to perform on-site troubleshooting regardless of the location. As such it has been designed to remain functional in outdoor environments with high levels of humidity and/or rainfall, on sites with high dust concentrations, and in areas that are dark and/or visually challenging. This separates the Fluke 87V MAX True-RMS Digital Multimeter from other DMMs that are often unable to deal with these challenging environments.

As mentioned above, the Fluke 87V MAX True-RMS Digital Multimeter has an IP rating of 67 and is housed in a completely sealed, industrial-strength casing and holster which has been drop-tested from 4m. This protects it from dust and water ingress as well as the potential drops and knocks often sustained in hazardous worksites. Furthermore, the Fluke 87V MAX True-RMS Digital Multimeter’s holster is reversible providing it with additional protection when it is not in use.

In addition to this, the Fluke 87V MAX True-RMS Digital Multimeter has an operating temperature range of -40°C (for up to 20 mins) to +55°C and a battery life double that of its predecessor, the Fluke 87V TRMS Digital Multimeter.

It also features a large display with a two-level, bright, white backlight and backlit function buttons to ensure ease-of-operation in dark or dim environments.

Moreover, the Fluke 87V MAX True-RMS Digital Multimeter has a safety rating of CAT IV 600V/ CAT III 1000V, again expanding its scope-for-use. It is able to withstand 8000V spikes caused by load switching and faults on industrial circuits.

Measurements

The Fluke 87V MAX True-RMS Digital Multimeter can be used to troubleshoot circuit breakers, circuitry, switchgear, distribution boards, panel boards, starters, motors, VFDs, panels and motor controls. It has been designed to solve complex problems, such as those pertaining to VFDs, which are often beyond the capabilities of standard digital multimeters.

It can be used to test the following parameters:

• AC/ DC voltage up to 1000V
• AC/ DC current up to 10A (20A for 30 seconds)
• Capacitance up to 10 000µF
• Frequency up to 200kHz

The Fluke 87V MAX True-RMS Digital Multimeter is also capable of performing resistance, continuity and diode tests. Additionally, its built-in thermometer enables temperature measurements.

The Fluke 87V MAX True-RMS Digital Multimeter is able to perform true-RMS AC voltage and current measurements allowing it to accurately measure non-linear signals. It also features an extended AC voltage bandwidth (15Hz to 20kHz) and a low-pass filter for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment.

Furthermore, the Fluke 87V MAX True-RMS Digital Multimeter features a Relative mode designed to remove test lead resistance from low ohms measurements. It also includes a Hi-Resolution (20 000 counts) mode.

The Fluke 87V MAX True-RMS Digital Multimeter is a rugged, versatile instrument with a comprehensive array of tests for various electrical parameters. The Fluke 87V MAX True-RMS Digital Multimeter is ideal for industrial and facilities maintenance electricians working in a variety of outdoor, dusty, wet and/or hazardous areas such as cement plants, electrical utilities, food processing facilities, chemical processing facilities, steel mills, foundries, mines (MHSA approval pending), military and petrochemical sites.

Fluke 87V MAX True-RMS Digital Multimeter Key Features

• IP67-rated, rugged, waterproof and dustproof digital multimeter
• Ideal for industrial and facilities maintenance electricians working in outdoor, wet, dusty and/or hazardous locations
• Perform on-site troubleshooting regardless of the location
• Remains functional in areas with high levels of humidity and/or rainfall
• Remains functional on sites with high dust concentrations
• Suitable for use in dark/ dimly lit areas
• Housed in a completely sealed industrial-strength casing and holster
• Drop tested from 4m (in casing and holster)
• Reversible holster protects the DMM when it is not in use
• Operating temperature range: -40°C (up to 20 mins) to +55°C
• Battery life double that of the Fluke 87V DMM
• Two-level bright white backlight and backlit function buttons
• Safety rated: CAT IV 600V/ CAT III 1000V
• Able to withstand 8000V spikes caused by load switching and faults on industrial circuits
• Troubleshoot circuit breakers, circuitry, switchgear, distribution boards, starters, motors, VFDs, panels and motor controls
• Designed to solve complex problems such as those pertaining to VFDs
• AC/ DC voltage up to 1000V
• AC/ DC current up to 10A (20A for 30 seconds)
• Capacitance up to 10 000µF
• Frequency up to 200kHz
• Perform resistance, continuity and diode tests
• Built-in thermometer for temperature measurements
• True-RMS AC voltage and current measurements
• Accurately measure non-linear signals
• Extended AC voltage bandwidth: 15Hz to 20kHz
• Low-pass filter for accurate voltage and frequency measurements on adjustable speed motors and other electrically noisy equipment
• Relative mode: removes test lead resistance from low ohms measurements
• Hi-resolution mode improves the resolution of the display (20 000 counts)
• Rugged, versatile DMM with a comprehensive array of tests for various electrical parameters
• Suitable for electricians working in cement plants, electrical utilities, food processing facilities, chemical processing facilities, steel mills, foundries, mines, military sites and petrochemical sites
• (MHSA approval pending)

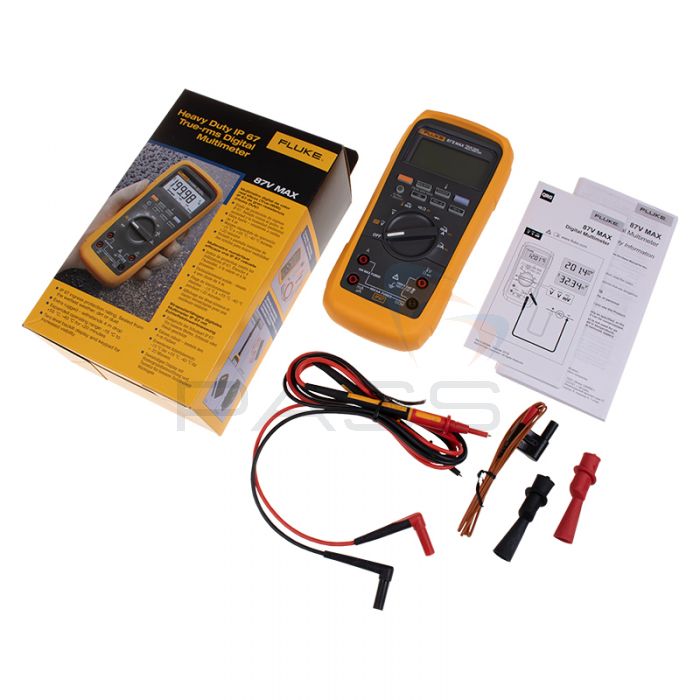

What’s Included?

• Fluke 87V MAX True-RMS Digital Multimeter
• Fluke TL175 Test Leads
• Fluke AC175 Alligator Clips
• Fluke 80BK-A Type K DMM Temperature Probe
