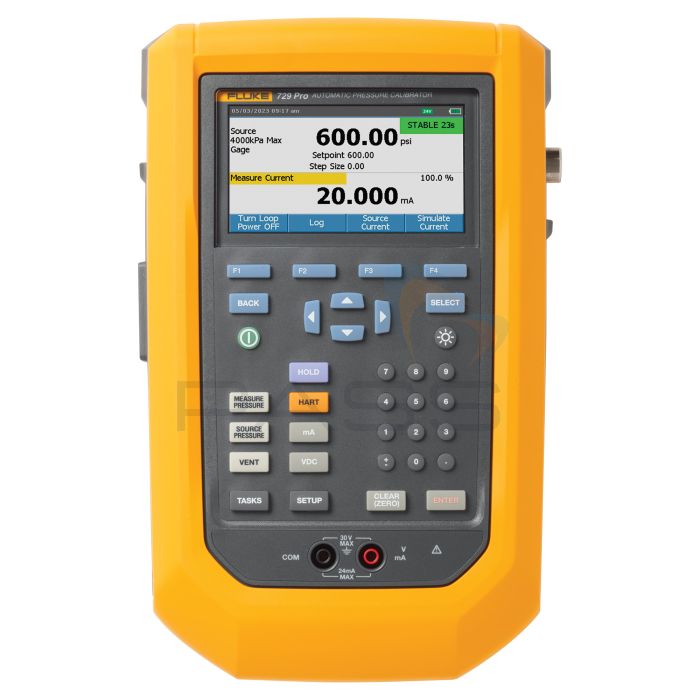

Fluke 729 Pro Automatic Pressure Calibrator
- Fast to high pressure setpoints
- HART communication
- Pressure leakage testing
- Powerful Li-ion battery
- Two models available
SKU
FLK-729-PRO
The Fluke 729 Pro internal electric pump simplifies pressure generation. It is available in two models: the Fluke 729 Pro 4M for calibrations up to 600 psi (40 bar, 4000 kPa) and the Fluke 729 Pro 7M for calibrations up to 1000 psi (70 bar, 7000 kPa).
One of the key features is automatic pressure generation and control. Technicians can input the target pressure, and the calibrator automatically adjusts to the set point. The replaceable pressure control modules allow for easy customisation, and the internal fine adjustment ensures that pressure stabilises precisely at the desired value. The 729 Pro can also perform multi-point pressure calibration tests, automatically pumping to and documenting each test point with a single button press.
The Fluke 729 Pro automatically tests multiple pressure points, flags out-of-tolerance results in red on the display, and captures critical data such as applied pressure, measured values (mA, mV, or digital PV), and percentage error for each test point. Manage results and upload data using DPCTrack2 Calibration Management Software.
HART communication capabilities, HART transmitter mA adjustments, configuration tasks like changing transmitter tags and measurement units, and troubleshooting features are incorporated.
The 729 Pro is rugged and portable, with a 1-meter drop test certification. For those requiring greater accuracy in low-pressure calibrations, the 729 Pro allows users to select from six Fluke Pressure Modules, expanding the pressure range between 0-600 psi (40 bar, 4000 kPa) for more precise measurements.
Fluke 729 Pro Automatic Pressure Calibrator
Key Features
- Automatic pressure generation and regulation up to 1000 psi, 7 MPa
- Replaceable pressure control modules
- Fast to high pressure setpoints, get more done
- Built-in test template, easy one-button documented calibration
- HART communication
- Pressure leakage testing
- Automatic fine-pressure adjustment, automatic pressure stabilization
- Powerful Li-ion battery
- Extends measurement range with 750PSeries pressure modules
- Measure temperature with 720RTD probe
- Bright dual-three-channel/color graphic display
- Rugged and portable design with standard Fluke 3-year warranty
What's Included?
- Choice of 729 Pro Automatic Pressure Calibrator
- AC/DC converter
- Power cord
- Rechargeable Li-ion battery
- Stackable test lead set
- AC280 Sure Grip hook set (red and black)
- Alligator clips (red and black)
- One set of TP220 test probes (red and black)
- USB communication cable: 3 ft (1 m) Type A plug for host (PC) to Mini-B plug for device
- Flexible hose, 2 mm diameter, 1.5 m (5 ft) length
- Fitting, 1/8 in NPT-Female x 1/4 in NPT-Female
- Fitting, 1/8 in NPT-Male x 1/4 in NPT-Male
- Fitting, 1/8 in NPT-Female x M20 Female
- Fitting, 1/4 in BSP-Female x 1/8 in NPT-Female
- Pressure Measurement Module (PMM)
- Hose for draining condensed water generated inside the Product. 1/8 in diameter, 1 ft length
- Adjustable quick-release strap for hanging the product, Safety Information, Traceable calibration report with data, PTFE tape
Pressure Module Selection Table
| Pressure Module | Pressure Type | Range | Resolution | Overall Uncertainty | 729 Pro 4M | 729 Pro 7M |
|---|---|---|---|---|---|---|
| FLK-PMM-200K | Gauge | (-15 to 30) psi | 0.0001 psi | 0.02 % FS / year, maximum | • | • |
| (-100 to 200) kPa | 0.001 kPa | |||||
| (-1 to 2) bar | 0.00001 bar | |||||
| FLK-PMM-200KA | Absolute | (0 to 30) psi | 0.0001 psi | 0.05 % FS / year, maximum | • | • |
| (0 to 200) kPa | 0.001 kPa | |||||
| (0 to 2) bar | 0.00001 bar | |||||
| FLK-PMM-2000K | Gauge | (-13 to 300) psi | 0.001 psi | 0.02 % FS / year, maximum | • | • |
| (-90 to 2000) kPa | 0.01 kPa | |||||
| (-0.90 to 20) bar | 0.0001 bar | |||||
| FLK-PMM-4000K | Gauge | (-13 to 600) psi | 0.01 psi | 0.02 % FS / year, maximum | • | • |
| (-90 to 4000) kPa | 0.01 kPa | |||||
| (-0.90 to 40) bar | 0.0001 ba | |||||
| FLK-PMM-7000K | Gauge | (-13 to 1000) psi | 0.01 psi | 0.02 % FS / year, maximum | • | |
| (-90 to 7000) kPa | 0.01 kPa | |||||
| (-0.90 to 70) bar | 0.0001 ba | |||||
| FLK-PMM-7000KA | Absolute | (0 to 1000) psi | 0.01 psi | 0.02 % FS / year, maximum | • | |
| (0 to 7000) kPa | 0.01 kPa | |||||
| (0 to 70) bar | 0.0001 ba | |||||
| Dry air or non-corrosive gases only / 15 °C to 35 °C, all ranges | ||||||
Product Range
- Fluke 729 Pro 4M Automatic Pressure Calibrator, 600 Psi (with FLK-PMM-4000K)
- Fluke 729 Pro 7M Automatic Pressure Calibrator, 1,000 Psi (with FLK-PMM-7000K)
Offers
Buy a Fluke Get One Free (Spend £150+)
Spend £150+ (Ex VAT) on any qualified Fluke or Beha-Amprobe product(s) and claim a free tool of your choice from the list at Fluke Promotion. Valid February 17 2025 - July 31 2025.
Claims are made direct to Fluke. Terms and conditions apply.
Technical Information
Specification
| 729 Pro 4M | 729 Pro 7M | |
|---|---|---|
| Pressure control range | -13 to 600 psi, -90 to 4000 kPa, -0.90 to 40 bar |
-13 to 1000 psi, -90 to 7000 kPa, -0.90 to 70 bar |
| Pressure type | Gauge/absolute (Depends on the internal or external pressure module) | |
| Pressure accuracy and Control stability | 0.02% of FS, 0.005% of FS | |
| Replaceable pressure measurement modules | Yes, 4 modules | Yes, 6 modules |
| mA sourcing/measurement | Yes | |
| Voltage measurement | Yes | |
| Loop power | 24 V dc | |
| Pressure switch testing | Yes | |
| Pressure leakage testing | Yes | |
| HART Communication | Yes, basic commands supported | |
| Autostep / auto ramp | Yes (with customizable speed, mode and style) | |
| Battery | Rechargeable lithium battery with charge indication (charged in the instrument or separately) | |
| Language | English | |
| Electrical Specification | ||
| All specifications are valid to 110% of the range, except the 24 mA source and simulate, which are valid to 100% of the range. | ||
| Ranges | ||
| mA measure, source and simulate | 0 mA to 24 mA | |
| Volts DC measurement | 0 V dc to 30 V dc | |
| Resolution | ||
| mA dc source, simulate and measure | 1 μA | |
| Voltage DC measurement | 1 mV | |
| Accuracy | 0.01% FS ±2 LSD all ranges (at 23 °C ±5 °C) | |
| Stability | 20 ppm FS /°C (-10 °C to +18 °C and 28 °C to 50 °C) | |
| mA simulation working voltage | 12 V dc to 30 V dc | |
| Loop compliance voltage | 24 V dc @ 20 mA | |
| Temperature measurement, 100 Ω Pt(385) RTD | -50 °C to 150 °C | |
| Temperature resolution | 0.01 °C | |
| Temperature accuracy | ±0.1 °C ±0.25 °C combined uncertainty when using 720 RTD probe (optional accessory) | |
| Drive capability (mA source) | 1200 Ω (without HART resistor), 950 Ω (with internal HART resistor) | |
| Mechanical specification | ||
| Dimension (HxWxL) | 290 x 215 x100 mm, (4.3 x 4.4 x 9.4 in) | |
| Weight | 4.9 kg (10.8 lbs) | |
| Environmental specification | ||
| Operating temperature | -10 °C to 50 °C | |
| Pressure control | 0 °C to 50 °C | |
| Battery charging | 0 °C to 40 °C | |
| Storage temperature | -20 °C to 60 °C | |
| Operating altitude | <3000 m | |
| Storage altitude | <13000 m | |
| Operating humidity | Non-condensing (<10°C) ≤90 % RH (10 °C to 30 °C) ≤75 % RH (30 °C to 40 °C) ≤45 % RH (40 °C to 50 °C) |
|
Document Downloads
Fluke 729 Pro Automatic Pressure Calibrator Datasheet
Fluke 729 Pro Automatic Pressure Calibrator Safety Information
Fluke 729 Pro Automatic Pressure Calibrator User Manual
Fluke 729 Pro Automatic Pressure Calibrator Quick Start Guide
