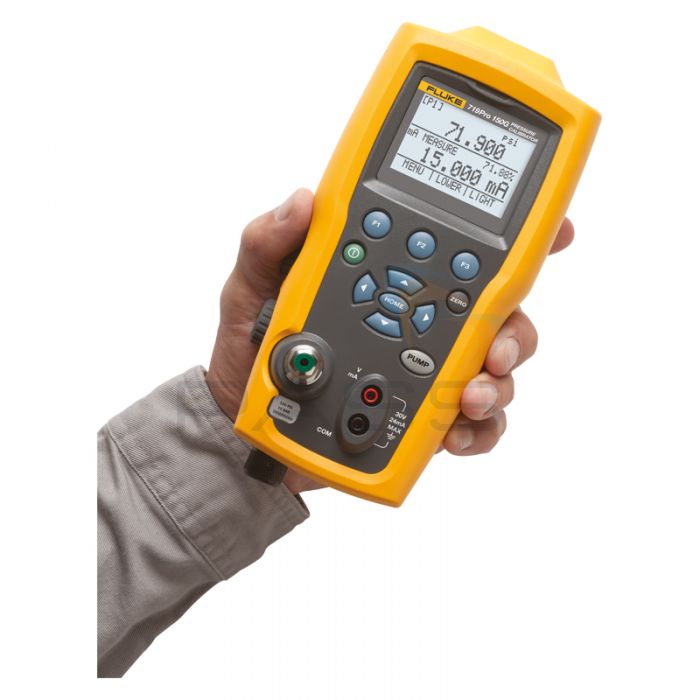

Fluke 719PRO Electric Pressure Calibrator (Choice of Range)
Note: this product is available with several ranges. Use the dropdown box above to make your selection up to 300PSI/20bar.
Use this portable calibration tool to accurately calibrate transmitters, pressure switches and pressure gauges.
Including a full loop calibrator, the 719PRO can be used to source, simulates and measure mA signals and can also perform pressure measurements from either the internal or external sensor. By using an optional RTD probe (sold separately), this calibrator can be used to measure temperature as well.
The pressure measurement range of 719PRO can be further extended by using a selection of Fluke's 29 700Pxx Pressure Modules (sold separately).
Fluke 719PRO Electric Pressure Calibrator Key Features
- Pressure measurements via either internal or external sensors
- Sourced/simulated or measured mA values
- Temperature measurements via optional RTD probe
- Unique integrated electric pump allows one-handed pressure calibration
- Switch test function - easy switching of test pressure
- Precision pressure adjust vernier for easy and accurate pressure calibration
- 0.025% accuracy for reference-class transmitter calibration
- Selectable units - 30PSI, 150PSI and 300PSI
- Programmable pressure calibrator pump limit eliminates over-pressurisation and allows the user to program target pressures for pumping
- Extend the functionality of the calibrator using Fluke's 29 optional pressure modules (sold separately)
- Special pump cleanout ports - reduce the risk of failing due to moisture and fluid damage
- Fluid trap included
What's Included?
- Fluke 719PRO Electric Pressure Calibrator
- Test Leads with Alligator Clips
- Printed User Manual
- User Manual on CD ROM
- Fluid Trap
- Carrying Case
- 1/4" Inch NPT to 1/4 Inch ISO Adapter
- Accessory Hose Kit with (2) 1/8 Inch Quick Fit Adapters and 1m Hose
- Traceable Certificate of Calibration
Fluke 719PRO Technical Specifications
| Pressure Measurement | Range | Resolution | Accuracy | Comment |
|---|---|---|---|---|
| Fluke-719Pro-30G | -12 to 30PSI / -0.8 to 2bar | 0.001PSI, 0.0001 bar | ±0.025% of full scale, 6 months ±0.035% of full scale, 1 year |
Dry Air and non-corrosive gas only |
| Fluke-719Pro-150G | -12 to 150PSI / -0.8 to 10bar | 0.01 PSI, 0.001 bar | ||
| Fluke-719Pro-300G | -12 to 300PSI / -0.8 to 20bar | 0.01 PSI, 0.001 bar | ||
| Temperature Effect (All Ranges) | Add ±0.002% % F.S./°C for temps outside of 15°C to 35°C | No effect on accuracy on all functions from 15°C to 35°C | ||
| Function | Range | Resolution | Accuracy (1 Year) | Comment |
| mA DC (simulation and measurement) | 0-24mA DC | 0.001mA | ±0.015% of reading ± 2 counts | 1000Ω maximum load in mA source, 26V DC maximum voltage in mA simulate |
| Volts DC (measurement only) | 30V DC | 0.001V | ±0.015% of reading ± 2 counts | No AC voltage measurement, do not exceed 30V DC |
| Temperature (measurement only, Pt100 RTD) | -50 to 150°C (-50 to 302°F) | 0.01°C 0.01°F |
Temperature ± 0.1°C (0.2°F) | ±0.25°C (±0.45°F) combined uncertainty when using 720 RTD probe (optional accessory) |
| Environmental | ||||
| Operating Temperature | -10 to 50°C | |||
| Storage Temperature (Without Batteries) | -20 to 60°C) | |||
| Power Requirements | ||||
| Battery | Eight (8) standard alkaline AA batteries | |||
| Battery Life | 300 pump cycles to 150 PSI minimum; 1000 pump cycles to 30 PSI; 100 pump cycles to 300 PSI minimum | |||
| Physical | ||||
| Dimensions (H x W x D) | 24.13 cm x 11.18 cm x 7 cm (9.5 in x 4.4 in x 2.8 in) | |||
| Weight | With holster 1.2kg (2.5lb) | |||
| Connections | ||||
| Pressure | 1/8 inch female NPT | |||
| Electrical | Standard banana jacks | |||
| RTD | 4 pin miniature circular | |||
| External Module | 6 pin miniature circular | |||
| Engineering Units (Configurable) | ||||
| psi, bar, mbar, kPa, kgcm2, cmH2O@4 °C, cmH2O@20 °C, mH2O@4 °C, mH2O@20 °C, inH2O@4 °C, inH2O@20 °C, inH2O@60 °F, mmHg@0 °C, inHg@0 °C, ftH2O@4 °C, ftH2O@20 °C, ftH2O@60 °F |
||||
