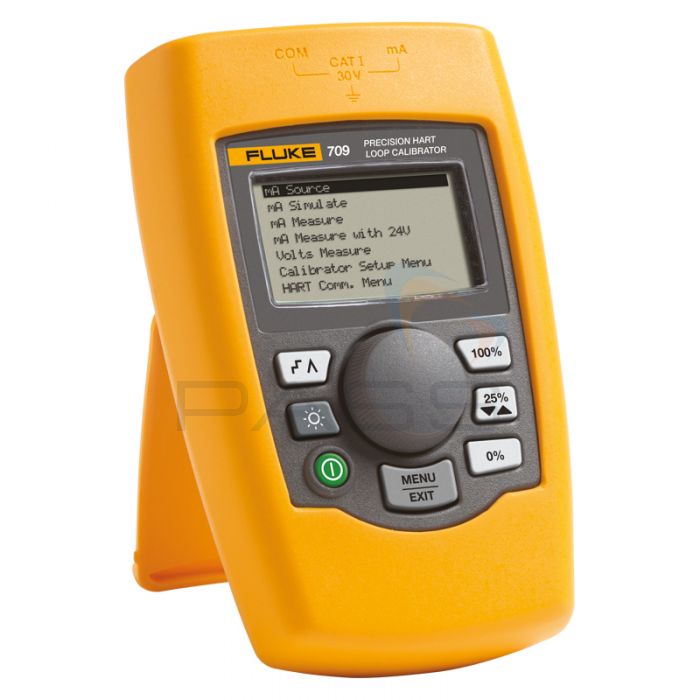

Fluke 709 Precision Loop Calibrator

The Fluke 709 Precision Loop Calibrator can be used to perform mA, source, mA simulate, mA read, mA read/loop power and volts read functions with ranges of 0 to 24mA and 0 to 30V DC.

Fluke's 709 is a portable, handheld unit that's designed to save time carrying out calibration procedures, speeding up time and producing high quality results as well. It's designed to reduce the overall time users spend measuring or sourcing voltage/current or alternatively powering up a loop.

Featuring high accuracy readings (with best in class accuracy of 0.01% reading), the Fluke 709 also comes with a large built-in screen and rotary dial for quickly adjusting the tester. It also has a built in 25Ω resitor for HART communication.

Fluke 709 Precision Loop Calibrator Key Features

• High accuracy loop calibration system
• Small and rugged design - portability and durability in one unit
• Simple-to-use user interface with rotary knob for ease of use
• Built in selectable 25Ω resistor for HART communication
• 24V DC loop power when using mA measure mode (-25% to 125%)
• Resolution of 1μA on mA ranges and 1mV on voltage ranges
• Simple two wire connection
• Auto shutdown when left idle
• Variable step and ramp time in seconds
• Adjustable span selection
• Valve test

Full List of Products Included

• Fluke 709 Precision Loop Calibrator
• AC175 Alligator Clip Set
• TL75 420L Test Leads
• Soft Case
• Six AAA Batteries (Installed)
• Product Manual CD-ROM
• Quick Reference Guide
• Safety Information
