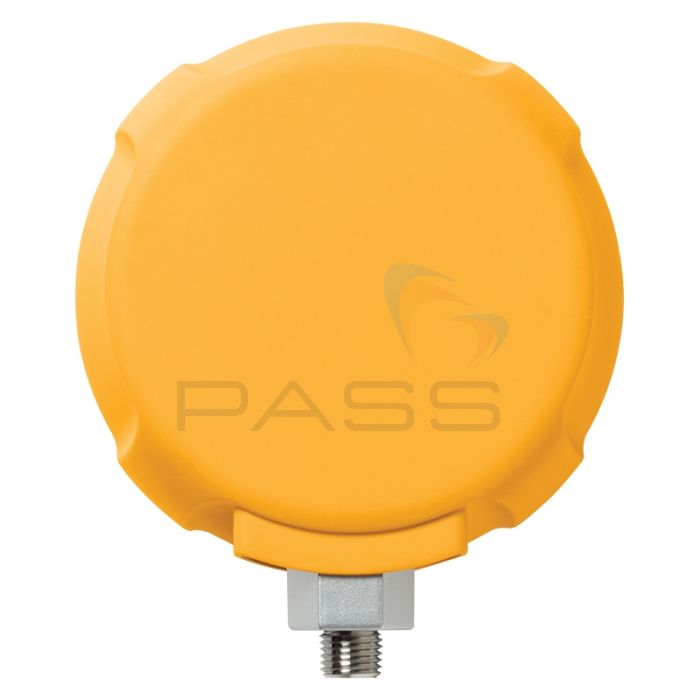

Fluke 700RG Reference Pressure Gauge

Description

The Fluke 700RG Reference Pressure Gauge is available in seven models with varying pressure ranges. For further details regarding these models and their ranges, please see the following table.

Product Code

Product Name

Range

Resolution

Accuracy

Burst Pressure

FLUKE-700RG05

Fluke 700RG05 Reference Pressure Gauge - 2 bar

-14 to +30 psi

-0.97 to +2 bar

0.001 psi

0.0001 bar

Positive pressure:

± 0.04 % of reading

+.01 % of range,

Vacuum:

± 0.05 % of range

90 psi

6 bar

FLUKE-700RG06

Fluke 700RG06 Reference Pressure Gauge - 6.9 bar

-12 to 100 psi

-0.83 to 6.9 bar

0.01 psi

0.0001 bar

Positive pressure:

± 0.04 % of reading

+.01 % of range,

Vacuum:

± 0.1 % of range

400 psi

27 bar

FLUKE-700RG07

Fluke 700RG07 Reference Pressure Gauge - 34 bar

-12 to 500 psi

-0.83 to 34 bar

0.01 psi

0.001 bar

2000 psi

138 bar

FLUKE-700RG08

Fluke 700RG08 Reference Pressure Gauge - 69 bar

-14 to 1000 psi

-0.97 to 69 bar

0.1 psi

0.001 bar

4000 psi

275 bar

FLUKE-700RG29

Fluke 700RG29 Reference Pressure Gauge - 200 bar

-14 to 3000 psi

-0.97 to 200 bar

0.1 psi

0.01 bar

10000 psi

690 bar

FLUKE-700RG30

Fluke 700RG30 Reference Pressure Gauge - 345 bar

-14 to 5000 psi

-0.97 to 340 bar

0.1 psi

0.01 bar

15000 psi

1035 bar

FLUKE-700RG31

Fluke 700RG31 Reference Pressure Gauge - 690 bar

-14 to 10000 psi

-0.97 to 690 bar

1 psi

0.01 bar

20000 psi

1380 bar

Each of these gauges is able to measure pressure to an accuracy of 0.04% of the reading. Measurements are displayed on the Fluke 700RG Reference Pressure Gauge’s 5.5-digit, 16.5mm display. This backlit display also includes a 20-segment bar graph.

Further to this, the Fluke 700RG Reference Pressure Gauge is able to indicate pressure measurements in eighteen user-selectable measurement units including psi, bar and kPa, allowing the user to tailor the gauge to his/her preferences.

Measurements can be logged to a PC when the Fluke 700RG Reference Pressure Gauge is used with Fluke’s 700G/Track Software (NOT included). The Fluke 700RG Reference Pressure Gauge is able to log up to 8493 measurements.

In addition to its compatibility with the Fluke 700G/Track Software, the Fluke 700RG Reference Pressure Gauge may also be used with the following Fluke products to perform pressure tests:

Fluke 700PTPK Pneumatic Test Kit
Fluke 700HTPK Hydraulic Test Kit
Fluke PTP-1 Pneumatic Pump
Fluke HTP-2 Hydraulic Pump

This gauge is easy to attach to the aforementioned instruments and features a rugged design that is compliant with CSA, Class 1, Div 2, Groups A-D and ATEX II 3 G Ex nA IIB T6 standards. This resilient design ensures that the Fluke 700RG Reference Pressure Gauge is suitable for use in demanding environments whilst also maintaining its longevity. Indeed, the Fluke 700RG Reference Pressure Gauge is supplied with a three-year warranty from Fluke.

The Fluke 700RG Reference Pressure Gauge is an accurate, rugged and adaptable pressure measuring instrument, it is ideal for extending the capabilities of the aforementioned Fluke pressure test kits and pressure pumps.

Fluke 700RG Reference Pressure Gauge – Choice of Range Key Features

Available in seven models with varying pressure ranges
Measure pressure to an accuracy of 0.04% of the reading
5.5 digit, 16.5mm, backlit display
The display includes a 20-segment bar graph
Eighteen user-selectable measurement units including psi, bar and kPa
Use with Fluke’s 700G/Track Software (NOT included) to log measurements to a PC in real-time
Capacity to log up to 8493 readings
Can be used with Fluke’s PTP-1 Pneumatic Pump and HTP-2 Hydraulic Pump
Transforms Fluke’s 700PTPK and 700HTPK Kits into pressure testing kits
Easy to attach
Rugged design
CSA, Class 1, Div 2, Groups A-D and ATEX II 3 G Ex nA IIB T6 compliant
Supplied with a three-year warranty from Fluke
An accurate, rugged and adaptable pressure measuring instrument
Ideal for extending the capabilities of the above pumps and kits

What’s Included?

Your Choice of Fluke 700RG Reference Pressure Gauge
¼ inch NPT to ¼ inch ISO Adapter
Traceable Certificate of Calibration
User Manual on CD-ROM (14 languages)
3-Year Warranty from Fluke

Tech Specs

Fluke 700RG Reference Pressure Gauge - Choice of Range Technical Specifications

Dimensions (HxWxD)	12.7 cm x 11.4 cm x 3.7 cm (5in x 4.5in x 1.5in)
Pressure connection	¼ in NPT Male
Housing/Weight	Cast ZNAL 0.56 kg (1.22 lb) with holster
Display	5 ½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100%
Power	Three AA alkaline batteries
Battery life	1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
Notes	700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy. For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C
Notes	Media compatibility: • 10 inH20, 1, 15, 30 psi: any clean dry non-corrosive gas • 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.
