Fluke 1746/ EUS Three-Phase Power Quality Logger

Fluke 1746/EUS Three-Phase Power Quality Logger - Choice of Kit

The Fluke 1746/ EUS Power Quality Logger is optimised for basic power quality logging and will record all the necessary parameters for this purpose. It can be used to help engineers and technicians make critical power quality and energy decisions pertaining to electrical network planning. This power quality analyser and logger can also be used to conduct energy saving studies.

This model is suitable for use in Europe, the UK and US; it is available in three kits that vary in regards to the included iFlex current probes:

FLUKE 1746/B/EUS - Fluke 1746/EUS Three-Phase Power Quality Logger WITHOUT Probes
FLUKE 1746/15/EUS - Fluke 1746/EUS Three-Phase Power Quality Logger with 1500A iFlex Probes
FLUKE 1746/30/EUS - Fluke 1746/EUS Three-Phase Power Quality Logger with 3000A iFlex Probes

Measurement Functions

As mentioned above, the Fluke 1746/ EUS Three-Phase Power Quality Logger can be used to capture all the relevant parameters for conducting energy saving studies and planning electrical networks. This inspection, diagnostic and maintenance tool’s eclectic measurement capabilities also make it suitable for carrying out quality-of-service surveys, quantifying energy usage and troubleshooting power distribution systems. This instrument is able to capture and save the following parameters:

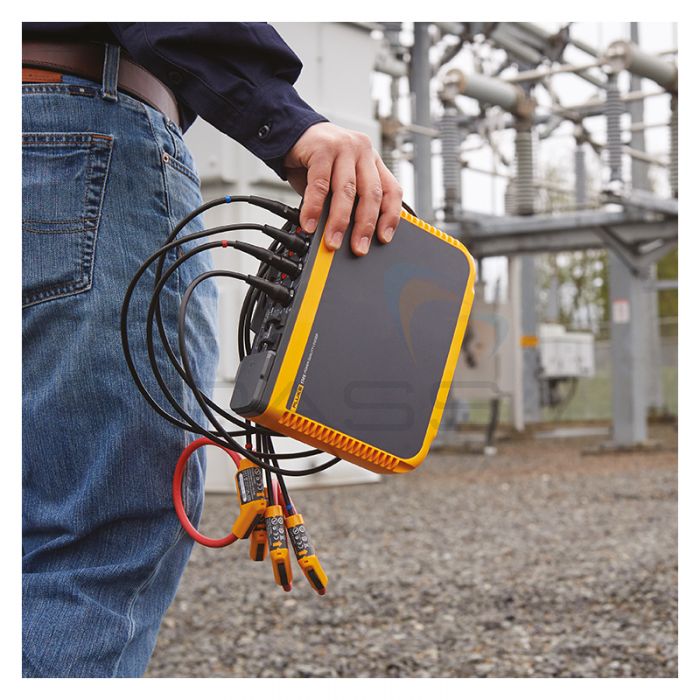

1746 Power Quality Logger in Use

Voltage
Current
Power
Power factor
Frequency
Energy forward/ reverse
Peak demand
THD
Flicker
Voltage and current harmonics (up to the 50^th)
Unbalance
Rapid voltage change events
Interharmonics (up to the 50^th)
Inrush current

It is able to record voltage events such as dips, swells, interruptions, current and inrush current. It can also measure all three voltage and current phases as well as neutral current when used with three-phase and neutral voltage test leads and four flexible current probes (NOT included with the Fluke 1746/B model).

The extensive measurement and logging capabilities of the Fluke 1746/ EUS make it suitable for assessing power quality in accordance with EN 50160 and IEEE 519 standards; additionally, this instrument is compliant with IEC 61000-4-30 Class A Edition 3. It can be used to perform measurements at various positions along the power installation, from the service entrance to the substation to the load.

Memory and Data Download

Logged parameters are saved to the logger’s internal memory; this instrument has the capacity to save in excess of twenty logging sessions. Moreover, to ensure that measurement trends are complete, it will automatically log a number of power parameters.

Recorded data can be downloaded to a PC using a USB interface, an Ethernet connection or via Wi-Fi. Transferring data to a PC via Wi-Fi allows the user to view measurement trends remotely and in real-time, thereby facilitating quick decision-making whilst reducing the need for PPE as the engineer/ technician is able to remain outside of dangerous environments.

Further to this, as the Fluke 1746/ EUS includes two USB ports, data can be saved directly to a USB memory stick whilst the instrument transfers information to a connected PC or laptop via a USB interface. As a result, data can be saved and viewed without removing the Power Quality Logger from the field.

Analysis and Reporting

It is supplied with Fluke's Energy Analyse Plus Software. This program allows the user to view data that has been transferred from the Fluke 1746/ EUS Three-Phase Power Quality Logger to a PC either by a wired or wireless connection.

Additionally, the Fluke Energy Analyse Plus Software can be used to analyse transferred data; it is capable of investigating every detail of the energy consumption and power quality state-of-health. The user can select a particular parameter to create a customised view thereby facilitating advanced data correlation. Additionally, it is possible to perform day/day, week/week and hour/hour comparisons. Data can be exported in PQDIF and NeQual formats, allowing for further analysis using third-party software.

Moreover, downloaded data can be used to create EN 50160, IEEE 519, GOST 33073 reports. These reports can be generated at the touch of a button and their templates may be altered in order to keep up with evolving standards.

Ergonomic, Rugged Design

As mentioned above it is possible to transfer data using a variety of methods and it is also possible to connect multiple current probes to the Fluke 1746. As a result, it is equipped with a number of ports (including AUX, I/O, USB and Ethernet ports) all of which have an IP65 rating ensuring that they are protected from dust and moisture ingress when not in use.

It has the highest safety rating in the industry (600V CAT IV / 1000V CAT III), making it suitable for applications at service entrances and downstream.

Also adding to the practicality is its ability to be powered by the circuit-under-investigation and, to this end, includes a wide power range: it will go from 100V to 500V automatically. Alternatively, it can be powered via a wall line cord or by its lithium-ion battery. The lithium-ion battery is able to provide up to four hours of power per charge, ensuring that it is able to withstand temporary power disruptions.

The small dimensions (23cm x 18cm x 5.4cm) makes it suitable for use in tight spaces whilst its ability to be secured using a standard chain or other security instrument means that it is protected from theft and can be left in the field.

Accessories

The Power Quality Logger’s supplied accessories also make it suitable for use in small, rugged places. The 2m test lead allows the user to access difficult-to-reach conductors as do the flexible, IP65, thin current probes (NOT included with the Fluke 1746/B).

Furthermore, these flexible current probes feature a wide range (probe dependent) ensuring a high accuracy despite the application. They can be connected to the logger separately thereby ensuring maximum flexibility.

System Interface

The Fluke 1746/ EUS Three-Phase Power Quality Logger’s verification feature will ensure that accessories such as flexible current probes, clamps and test leads are connected correctly. The power button will shine an amber light when connections are faulty, changing to green when they have been corrected. This feature is able to digitally correct unsatisfactory connections without the user having to disconnect any of the components.

In addition to this, it isis able to recognise, scale and power connected clamps and/or probes and will do this automatically upon connection. This ensures that the 1746 and the connected probes and/or clamps are configured correctly enabling accurate and reliable measurements.

Configuring the Fluke 1746/ EUS Three-Phase Power Quality Logger for each application is made easy due to the inclusion of a quick, guided, graphical PC-application setup interface.

Overall it is an accurate and adaptable three-phase power quality analyser with an array of measurement capabilities for basic power quality logging.

Key Features

Optimised for basic power quality logging
Records all the necessary parameters for basic power quality logging
Provides the necessary data for making critical energy and power quality decisions
Suitable for electrical network planning applications
Can be used to conduct energy saving studies
Suitable for carrying out quality-of-service surveys, quantifying energy usage and troubleshooting power distribution systems
Suitable for use in Europe, the UK and the US
Available in three kits that vary in regards to the included iFlex current probes
Can capture an array of power parameters
Voltage
Current
Power
Power factor
Frequency
Energy forward/ reverse
Peak demand
THD
Flicker
Voltage and current harmonics (up to the 50^th)
Unbalance
Rapid voltage change events
Interharmonics (up to the 50^th)
Inrush current
Records voltage events such as dips, swells, interruptions, current and inrush current
Use with three-phase and neutral voltage test leads and four flexible current probes to measure all three voltage and current phases and neutral current
Assess power quality in accordance with EN 50160 and IEEE 519 standards
Compliant with IEC 61000-4-30 Class A Edition 3
Can be used to perform measurements at various positions along the power installation
Log parameters at the service entrance, substation or at the load
Internal memory: capacity to store in excess of twenty logging sessions
Automatically logs a number of parameters to ensure measurement trends are complete
Download data to a PC via a USB interface, Ethernet connection or via Wi-Fi
Wi-Fi connectivity allows the user to view data remotely and in real-time
Wi-Fi connectivity means the user is able to remain outside of dangerous environments
Includes two USB ports
Data can be downloaded directly to a USB memory stick
Supplied with Fluke Energy Analyse Plus Software
Fluke Energy Analyse Plus Software can be used to view measurements remotely, analyse data and create reports
Fluke’s Energy Analyse Plus Software can be used to investigate every detail of the energy consumption and power quality state-of-health
Create a customised view of a single power parameter for advanced data correlation using the Fluke Energy Analyse Plus Software
View day/day, week/week and hour/hour comparisons using the included software
Create EN 50160, IEEE 519, GOST 33073 reports at the touch of a button using the included software
Report templates can be altered to accommodate evolving standards
Data can be exported in PQDIF and NeQual formats using the Fluke Energy Analyse Plus Software
IP65 ports
Highest safety rating in the industry: 600V CAT IV / 1000V CAT III
Suitable for applications at service entrances and downstream
Can be powered by the circuit-under-investigation
Wide power range: will go from 100V to 500V automatically
Can be powered using a wall line cord or by the lithium-ion battery
The lithium-ion battery can provide up to four hours of power per charge
Small size for use in tight spaces: 23cm x 18cm x 5.4cm
Can be secured using a standard chain or another security instrument
2m test lead facilitates access to difficult-to-reach components
Flexible, thin, IP65 current probes (NOT included with the Fluke 1746/B) also facilitate access to awkwardly placed components
Wide probe range (probe dependent) ensuring high accuracy regardless of the application
Up to four probes can be connected separately ensuring maximum flexibility
Intelligent verification feature ensures that clamps, probes and test leads are connected correctly
Incorrect connections are indicated by an amber light
Correct connections are indicated by a green light
The intelligent verification feature will digitally correct faulty connections without the user having to disconnect any components
Automatically recognises, scales and powers connected clamps and/or probes
Quick, guided, graphical PC-application setup interface
An accurate and adaptable three-phase power quality analyser with an array of measurement capabilities for basic power quality logging

What’s Included?

Your Choice of Fluke 1746/ EUS Three-Phase Power Quality Logger Kit (see below)

Items	FLUKE1746/B/EUS	FLUKE1746/15/EUS	FLUKE1746/30/EUS
Fluke 1746/EUS Three-Phase Power Quality Logger	•	•	•
1500A iFlex Current Probes (60cm)	-	•	-
3000A iFlex Current Probes (60cm)	-	-	•
USB Stick	•	•	•
USB Cable	•	•	•
3PHVL-1730 3-Phase + neutral voltage test lead	•	•	•
Test lead set red/black 0.18 m	•	•	•
Test lead set red/black 1.5 m	•	•	•
Alligator clips	4	4	4
173x/174x Soft Case	•	•	•
Cable marker kit	•	•	•
MP1-3R/1B-Magnet Probe 1 set (3 red, 1 black)	1	1	1

The Fluke 1746/EUS Three-Phase Power Quality Logger can be upgraded to the Fluke 1748/EUS Three-Phase Power Quality Logger; please contact our sales team for further information.

Offers

FREE Powerbank / Wireless Charger

PASS Power Bank & Magnetic Wireless Charger (10 000mAh 15W) - PASSPOWER-PLUS, typically £49.00

Tech Specs

Fluke 174X Three-Phase Power Quality Loggers Technical Specifications

Please note that the Fluke 1746/EUS Three-Phase Power Quality Loggers are part of Fluke's range of 174X Three-Phase Power Quality Loggers; the table below details the technical specifications for all the models included in this range.

Specifications
Accuracy
Parameter		Range	Maximum Resolution	Intrinsic Accuracy at Reference Conditions (% of Reading +% of Range)
Voltage		1000 V	0.1 V	±0.1 % of nominal voltage 1, 2
Current: Direct input	i17xx-flex 1500IP 24 1500 A	150 A	0.01 A (min. 1.5A)3	±(1% + 0.02%)
		1500 A	0.1 A
	i17xx-flex 3000IP 24 3000 A	300 A	0.01 A (min. 3.0 A)3	±(1% + 0.03%)
		3000 A	0.1 A
	i17xx-flex 6000IP 36 6000 A	600 A	0.01 A (min. 6.0 A)3	±(1.5% + 0.03%)
		6000 A	0.1 A
	i40s-EL clamp	4 A	1 mA	±(0.7% + 0.02%)
		40 A	10 mA
Frequency		42.5 Hz to 69 Hz	0.01 Hz	±(0.1%)2
Auxiliary input		±10 V dc	0.1 mV	±(0.2% + 0.02%)
Voltage min/max		1000 V	0.1 V	±0.2 % of nominal input voltage1
Current min/max		Defined by accessory	Defined by accessory	±(5% + 0.2%)
THD on voltage		1000%	0.10%	± 2.5%
THD on current		1000%	0.10%	± 2.5%
Voltage harmonics 2nd to 50th		1000 V	0.1 V	≥ 1 V: ±5% of reading
				< 1 V: ±0.05V
Current harmonics 2nd to 50th		Defined by accessory	Defined by accessory	≥ 3% of current range: ±5% of reading
				< 3% of current range: ±0.15% of range
Flicker PLT, PST		0 to 20	0.01	5%
Current probe accuracy
Parameter	Influence quantity/	iFlex1500IP-24	iFlex3000IP-24	iFlex6000IP-36	i40S-EL
		150 A / 1500 A	300 A / 3000 A	600 A / 6000A	4 A / 40 A
Active Power P	PF ≥ 0.99	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Active Energy Ea
Apparent power S	0 ≤ PF ≤ 1	1.2% + 0.005%	1.2% + 0.0075%	1.7% + 0.0075%	1.2% + 0.005%
Apparent Energy Eap
Reactive power Q	0 ≤ PF ≤ 1	2.5% of measured apparent power
Reactive Energy Er
Power Factor PF	-	±0.025
Displacement Power
Factor DPF/cosΦ
Additional uncertainty in% of range	VP-N>250 V	0.015%	0.023%	0.023%	0.015%
1 In the range of 100 V … 500 V; also known as Udin 2 0 °C … 45 °C: Intrinsic accuracy x 2, outside of 0 °C … 45 °C: Intrinsic accuracy x 3 3 Consult operators manual for details Reference conditions: Environmental: 23 °C ± 5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, RH <65 % Input conditions: Cosφ/PF=1, Sinusoidal signal f=50 Hz/60 Hz, power supply 120 V/230 V ±10 %. Current and power specifications: Input voltage 1 ph: 120 V/230 V or 3 ph wye/delta: 230 V/400 V Input current: I > 10 % of I range Primary conductor of clamps or Rogowski coil in center position Temperature coefficient: Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C
Electrical Specifications
Power Supply
Voltage range	100 V to 500 V using safety plug input when powering from the measurement circuit
	100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
Power consumption	Maximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
Efficiency	≥ 68.2% (in accordance with energy efficiency regulations)
Maximum no-load consumption	< 0.3 W only when powered using IEC 60320 input
Mains power frequency	50/60 Hz ±15%
Battery	Li-ion 3.7 V, 9.25 Wh, customer-replaceable
On-battery runtime	Typically 4 hours
Charging time	< 6 hours
Data Acquisition
Resolution	16-bit synchronous sampling
Sampling frequency	10.24 kHz at 50/60 Hz, synchronized to mains frequency
Input signal frequency	50/60 Hz (42.5 to 69 Hz)
Circuit types	1-Φ, 1-Φ IT, split phase, 3-Φ delta, 3-Φ wye, 3-Φwye IT, 3-Φ wye balanced, 3-Φ Aron/Blondel (2-element delta), 3-Φ delta open leg, currents only (load studies)
Data storage	Internal flash memory (not user replaceable)
Memory size	Typical 20 logging sessions of 4 weeks with 1-minute intervals and 500 events
Basic Interval
Measured parameters	Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy
Averaging interval	User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min
Averaging time min/max values	Voltage, Current: Full cycle RMS updated every half cycle (URMS1/2 according to IEC61000-4-30 Aux, Power: 200ms)
Demand Interval (Energy Meter Mode)
Measured parameters	Energy (Wh, varh, VAh), PF, maximum demand, cost of energy
Interval	User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off
Power Quality Measurements
Measured parameter	Voltage, frequency, unbalance, voltage harmonics, THD V, current, harmonics, THD A, TDD, voltage interharmonics, TID V, current interharmonics, TID A, Flicker, Mains Signaling, under/over deviation
Averaging interval	10 min for all parameters 2 hrs (long term Flicker PLT) 150/180 cycles (3 s) for harmonics (requires software license IEEE519/REPORT)
Individual harmonics	2nd to 50th harmonic Grouping according to IEC 61000-4-7 user configurable depending on application: Sub-grouped (harmonics + interharmonics), grouped or harmonic bins only
Interharmonics	1st to the 50th interharmonic
Total harmonic distortion	Calculated on 50 voltage harmonics
Events	Voltage: dips, swells, interruptions, current: inrush current 1748: mains signaling, transients (low frequency)
Triggered recordings	RMS profile: Full cycle RMS updated every half cycle of voltage and current up to 11 s (URMS1/2 according to IEC 61000-4-30)
	Waveform of voltage and current up to 200 ms, 10/12 cycles
	Mains signaling: 10/12 cycle RMS recording of the configured frequencies up to 120s
Inrush	RMS profile based on 1/2 cycle RMS steady state triggering
Flicker	In accordance with IEC 61000-4-15 and IEEE 1453
Mains signaling	Two user defined frequencies up to 3 kHz
PQ Health	Summarizes power quality measurements in one table. Detailed data available for each parameter
EN 50160	Compliance with standard
Programmable PQ limits	Enables user defined limits for local standards compliance
Standards Compliance
Harmonics	IEC 61000-4-7: Class 1
	IEEE 519 (short time and very short time harmonics)
Power quality	IEC 61000-4-30 Class A, IEC 62586-1, IEC 62586-2 (PQI-A-PI device)
Power	IEEE 1459
Power quality compliance	EN 50160
Safety	General: IEC 61010-1: Pollution Degree 2
	Measurement: IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V
	Power Supply: Overvoltage Category IV, Pollution Degree 2
	Li-ion Battery: IEC 62133
Interfaces
USB-A	File transfer via USB flash drive, firmware updates, max. supply current: 120 mA
WiFi	File transfer and remote control via direct connection or WiFi infrastructure
Bluetooth	Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires supported USB to BLE or WiFi/BLE adapter, check for availability)
USB-mini	Data download device to PC
Current Inputs
Number of inputs	4 (3 phases and neutral), mode selected automatically for attached sensor
Input voltage	Clamp input: 500 mVrms/50 mVrms; CF 2.8
	Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4 all at nominal probe range
Range	1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 IP 24
	3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 IP 24
	6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 IP 36
	40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL
Bandwidth	42.5 Hz - 3.5 kHz
Scaling	1:1 and variable
Auxiliary Inputs
Number of inputs	2 (Analog with auxiliary adapter, or up to 2 BLE devices simultaneously)
Input range	0 to ± 10 V dc, or 0 to ± 1000 V dc (with optional adapter), 1 reading/s
Scale factor	Format: mx + b (gain and offset) user configurable
Displayed units	User configurable (7 characters, for example, °C, psi, or m/s)
Wireless Bluetooth connection (check for availability)
Number of inputs	2
Supported modules	Fluke Connect® 3000 series
Acquisition	1 reading/s
Environmental Specifications
Operating temperature	-25 °C to +50 °C (-13 °F to 122 °F)1
Storage temperature	Without battery: -25 °C to +60 °C (-13 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F)
Operating humidity	IEC 60721-3-3: 3K6:
	-25 °C to +30 °C (-13 °F to +86 °F): ≤ 100 %
	40 °C (104 °F): 55 %
	50 °C (122 °F): 35 %
Operating Altitude	2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
Storage altitude	12,000 m
Enclosure	IEC 60529: IP50
	IEC 60529: IP65 with IP65 rated voltage connector
Vibration	IEC 60721-3-3 / 3M2
Electromagnetic compatibility (EMC)	EN 61326-1: Industrial CISPR 11: Group 1, Class A
	IEC 61000-6-5 Power station environment
	Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment)
	USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
General Specifications
Warranty	Two-years (battery not included)
	Accessories: one-year
	Calibration cycle: two-years
Dimensions	23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
Weight	Instrument: 1 kg (2.2 lb)
Tamper protection	Accept securing cables (max. Φ 6mm)
1Warm up the product to -10 °C (+14 °F) before you power the unit on
Flexible Current Probe Specifications
Specifications	i17XX-FLEX1.5KIP			i17XX-FLEX3KIP
Measuring range	1 to 150 A ac/10 to 1500 A ac			1 to 300 A ac 10 to 3000 A ac
Probe cable length	610 mm (24 in)			610 mm (24 in)
Probe cable diameter	7.5 mm (0.3 in)			7.5 mm (0.3 in)
Weight	170 g (0.38 lb)			170 g (0.38 lb)
Minimum bending radius	38 mm (1.5 in)
Nondestructive current	100 kA (50/60 Hz)
Temperature coefficient over operating temperature range	0.05 % of reading/°C (0.028 % of reading/°F)
Working voltage	1000 V CAT III, 600 V CAT IV
Output cable length	2.0 m (6.5 ft)
Probe cable material	TPR
Weight	115 g
Probe cable material	TPR
Coupling material	POM + ABS/PC
Output cable	TPR/PVC
Operating temperature	-20 °C to +70 °C (-4 °F to 158 °F) temperature of conductor under test shall not exceed 80 °C (176 °F)
Temperature, non-operating	-40 °C to +80 °C (-40 °F to 176 °F)
Relative humidity, operating	15% to 85% non-condensing
IP rating	IEC 60529: IP65
Warranty	One-year

Fluke 174X Three-Phase Power Quality Loggers Comparison Table

Functions	1742 Power Quality Loggers	1746 Power Quality Loggers	1748 Power Quality Loggers
Voltage, current, power, power factor, frequency	X	X	X
Energy forward/reverse	X	X	X
Peak Demand	X	X	X
THD	X	X	X
Voltage and current harmonics (to 50th)1		X	X
Flicker	X	X	X
Unbalance1		X	X
Rapid voltage change events1		X	X
Interharmonics (to 50th)1		X	X
Dips, swells, interruption and transient events tables1		X	X
Mains signaling		X	X
Inrush current1		X	X
Transients (low frequency)/Waveform deviation events2			X
Recording	1742 Power Quality Loggers	1746 Power Quality Loggers	1748 Power Quality Loggers
Trend	X	X	X
Waveform snapshots2			X
RMS profile2			X
Communication	1742 Power Quality Loggers	1746 Power Quality Loggers	1748 Power Quality Loggers
Ethernet	X	X	X
USB (mini B)	X	X	X
WiFi download Instrument to device	X	X	X
Wifi download via WiFi hub (requires registration)	Opt	Opt	Opt
Included accessories	1742 Power Quality Loggers	1746 Power Quality Loggers	1748 Power Quality Loggers
Flexible current probe	not /B version	not /B version	not /B version
USB stick	X	X	X
USB cable	X	X	X
3PHVL-1730 3-Phase + neutral voltage test lead	X	X	X
Test lead set red/black 0.18 m	X	X	X
Test lead set red/black 1.5 m	X	X	X
Alligator clips	4	4	4
173x/174x Soft Case	X	X	X
Cable marker kit	X	X	X
MP1-3R/1B-Magnet Probe 1 set (3 red, 1 black)	Opt	1	1
174x-Hanger Kit	Opt	Opt	X

Downloads

SKU	Fluke/1746/EUS
Manufacturer Part Code	4920726

Help & Advice

Fluke 1746/ EUS Three-Phase Power Quality Logger – Choice of Kit
