Fluke 1524-256 2-Channel Handheld Thermometer Kit 4
The Fluke 1524-256 2-Channel Handheld Thermometer Kit 4 contains:
- 1x Fluke 1524-256 2-Channel Handheld Thermometer and Accessories
- 1x Fluke 5615-12-P Secondary Reference Temperature Probe
- 1x Fluke 2373-LTC Lemo to Universal Thermocouple Adapter
- 1x Carry Case
For further information regarding these products, please see the description below.

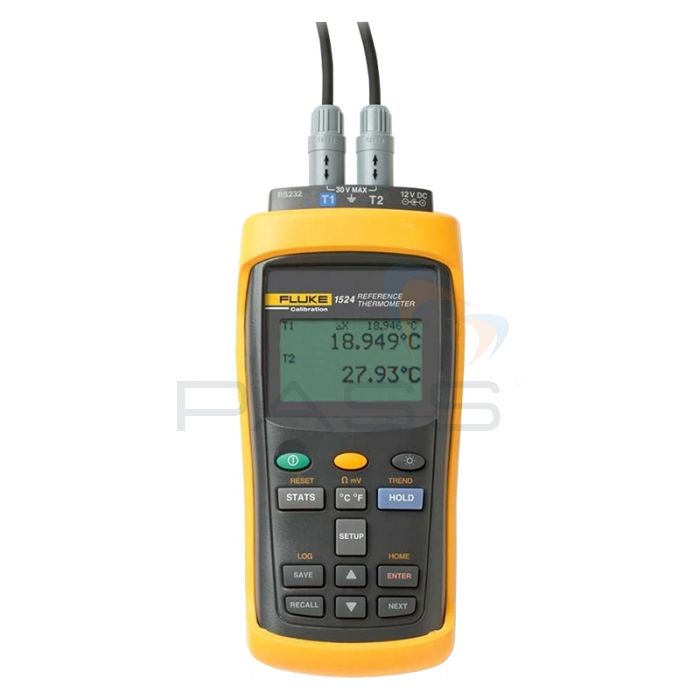

Fluke 1524-256 2-Channel Handheld Thermometer Description
The Fluke 1524-256 2-Channel Handheld Thermometer can be used to measure, graph and record PRTs, thermistors and thermocouples. It is also suitable for logging temperature data.
To facilitate its extensive measurement and data logging capabilities the Fluke 1524-256 includes three sensors with the following ranges and accuracies:
- PRT sensor: -200°C to 1000°C (±0.011°C)
- Thermocouple sensor: -200°C to 2315°C (±0.24°C for J, K, L and M)
- Thermistor sensor: -50°C to 150°C (±0.002°C)
Measurements can be taken simultaneously via the Fluke 1524-256’s two channels. Readings from both channels may also be viewed simultaneously via the 128 x 64-pixel, backlit, LCD display, along with a trend graph that is plotted and scaled in real-time. The resolution of the graph can be altered using a dedicated function button, allowing the user to monitor processes over time and determine temperature stability quickly and without the use of statistics.
The Fluke 1524-256 2-Channel Handheld Thermometer has a standard sample rate of one reading per second. However; it can be used in Fast Mode to take measurements once every 0.3 seconds. In addition to this, it is possible to configure the instrument to take readings as sporadically as once every hour. Sample rates can be set to occur anywhere between once every hour and once every 0.3 seconds, allowing the user to tailor the instrument to the application.
Adding to this instrument’s adaptability is its ability to accommodate RTDs/PRTs, thermistors and thermocouples. Probes can be locked to particular channels via the use of a password in order to preserve system calibration traceability. This instrument is able to recognise which probe has been connected and will recall the relevant calibration information from the Fluke 1524-256 2-Channel Handheld Thermometer’s INFO-CON memory chip. This ensures that the Fluke 1524-256 2-Channel Handheld Thermometer is suitably adjusted to perform correct temperature conversions for accurate measurements.
Probe configurations can be created using the included Fluke 9940 Toolkit Software and may be uploaded to the Fluke 1524-256 2-Channel Handheld Thermometer via the RS-232 interface. These accessories can also be used to send commands directly to the Fluke 1524-256 2-Channel Handheld Thermometer, as well as log and organise data captured by the thermometer.
The Fluke 1524-256 2-Channel Handheld Thermometer includes an extensive onboard memory capable of saving up to 15 000 measurements. These readings can be saved with date and time stamps due to the inclusion of a real-time clock.
This instrument also includes a highly stable reference voltage source and precision thermistors. These components maintain the Fluke 1524-256 2-Channel Handheld Thermometer’s accuracy regardless of external temperature conditions. The Fluke 1524-256 2-Channel Handheld Thermometer has also been tested in extremes of temperature and harsh vibration conditions to ensure its accuracy and functionality are maintained in challenging environments.
Also working to preserve the accuracy of this instrument is the utilisation of a current-reversal technique which eliminates thermal EMFs.
In addition to this product’s accuracy, reliability and versatility, it has also been designed for longevity of operation. As such it may be powered for up to twenty hours using three AA batteries and includes power-saving settings which may be activated in order to extend its operating time. Furthermore, the Fluke 1524-256 2-Channel Handheld Thermometer is supplied with a DC adapter which allows the instrument to remain functional in between charges.
The Fluke 1524-256 2-Channel Handheld Thermometer’s accuracy, reliability, versatility and practicality make it suitable for a variety of applications including:
- Calibration
- Loop-checking
- Plant start-up
- Troubleshooting
- Maintenance
- Repair
It is also suitable for use as a temperature reference and temperature logger in calibration baths, dry-block calibrators, thermowells, clean rooms, engines, heat exchangers, furnaces and freezers. It is ideal for a variety of temperature measurement and calibration applications.
Fluke 1524-256 2-Channel Handheld Thermometer Key Features
- Can be used to measure, graph and record PRTs, thermistors and thermocouples as well as log temperature data
- PRT sensor: -200°C to 1000°C (±0.011°C)
- Thermocouple sensor: -200°C to 2315°C (±0.24°C for J, K, L and M)
- Thermistor sensor: -50°C to 150°C (±0.002°C)
- Conduct measurements simultaneously using both channels
- View readings from both channels simultaneously via the display
- View the trend graph, scaled and plotted in real-time, via the display
- Function button for altering the resolution of the graph
- Monitor processes over time
- Determine temperature stability quickly and without the use of statistics
- 128 x 64-pixel, backlit, LCD display
- A standard sample rate of one reading per second
- A Fast Mode sample rate of one reading per 0.3 seconds
- Can be set to record measurements at one reading per hour and anywhere between this rate and the rate of the Fast Mode
- Can accommodate RTDs/ PRTs, thermistors and thermocouples
- Probes can be locked to particular channels using a password in order to preserve system calibration traceability
- Recognises the connected probe and recalls the relevant calibration information from the INFO-CON memory chip
- Supplied with an RS-232 interface and Fluke’s 9940 Toolkit Software
- Interface and software can be used to create and upload probe configurations to the thermometer
- Interface and software can be used to send commands to the thermometer
- Interface and software can be used to log and organise data collected using the thermometer
- An extensive onboard memory capable of saving up to 15 000 measurements
- Measurements can be saved with date and time stamps due to the inclusion of a real-time clock
- Includes a highly stable reference voltage source
- Includes precision thermistors
- Tested in extreme temperatures and harsh vibration conditions to ensure that its accuracy and functionality are maintained in challenging environments
- Utilises a current-reversal technique to eliminate EMFs
- Can be powered by three AA batteries for up to twenty hours
- Power-saving settings
- DC adapter extends operating time
- Suitable for calibration, loop-checking, plant start-up, troubleshooting, maintenance and repair applications
- Suitable for use as a temperature reference and temperature logger during calibrations
- Ideal for a variety of temperature measurement and calibration tasks
What’s Included with the Fluke 1524-256 2-Channel Handheld Thermometer?
- Fluke 1524-256 2-Channel Handheld Thermometer
- NIST-traceable Certificate of Calibration
- User Guide
- CD-ROM Containing the Technical Manual
- 12V DC Universal Power Supply
- RS-232 Cable
- Fluke 9940 I/O Toolkit Software
Fluke 5615-12-P Secondary Reference Temperature Probe Description
The Fluke 5615-12-P Secondary Reference Temperature Probe can be used with the Fluke 1524-256 2-Channel Handheld Thermometer to measure temperatures between -200°C and 420°C.
This instrument has been optimised for accuracy (±0.012°C at 0°C). It is supplied with an NVLAP- accredited calibration (lab code 200706-0) and has been calibrated between -196°C and 420°C.
Further to this, the Fluke 5615-12-P Secondary Reference Temperature Probe has been calibrated using ITS-90 coefficients making it suitable for use with Fluke’s more sensitive temperature calibrators.
As well as the NVLAP-accredited calibration, the Fluke 5615-12-P Secondary Reference Temperature Probe is supplied with sensor resistance information in 1°C increments.
The design of this probe also works to maintain its accuracy and reliability. It is made from reference-grade platinum wire (99.999% purity), ensuring stability. This wire is then wound in a coil and placed in a mandrel in order to ensure that it is uniformly supported, thereby keeping hysteresis to a minimum.
In addition to this, the Fluke 5615-12-P Secondary Reference Temperature Probe’s electrical configuration, a four-wire, current-potential hookup, removes the effects of lead-wire resistance.
Furthermore, the element of this probe is protected by an Iconel™ 600 sheath (305mm in length and 6.35mm in diameter) and a ceramic case with a hermetic glass seal. These components protect the probe from contaminants and moisture thereby preserving the Fluke 5615-12-P Secondary Reference Temperature Probe’s longevity and outward stability.
The Fluke 5615-12-P Secondary Reference Temperature Probe is a cost-effective, accurate and reliable alternative to 100Ω RTDs and SPRTs. It is ideal for expanding the Fluke 1524-256 2-Channel Handheld Thermometer’s scope-for-use.
Fluke 5615-12-P Secondary Reference Temperature Probe Key Features
- Can be used with the Fluke 1524-256 2-Channel Handheld Thermometer to measure temperatures
- Temperature range: -200°C to 420°C
- Optimised for accuracy (±0.012°C at 0°C)
- Supplied with an NVLAP-accredited calibration (lab code 200706-0)
- Calibrated between -196° and 420°C
- Calibrated using ITS-90 coefficients
- Suitable for use with Fluke’s more sensitive temperature calibrators
- Supplied with sensor resistance information in 1°C increments
- Made from reference-grade platinum wire (99.999% purity), ensuring stability
- The platinum wire is wound in a coil and placed in a mandrel to ensure that it is uniformly supported and hysteresis is kept to a minimum
- Electrical configuration: four-wire, current-potential hookup
- Electrical configuration removes the effects of lead-wire resistance
- Iconel™ 600 sheath: 305mm in length and 6.35mm in diameter
- Ceramic case with a hermetic glass seal
- Sheath and case protect the element from contaminants and moisture thereby preserving the probe’s longevity and outward stability
- A cost-effective, accurate and reliable alternative to 100Ω RTDs and SPRTs
- Ideal for expanding the Fluke 1524-256 2-Channel Handheld Thermometer’s scope-for-use
Fluke 2373-LTC Lemo to Universal Thermocouple Adapter Description
The Fluke 2373-LTC Lemo to Universal Thermocouple Adapter includes a precision thermistor and supports reference junction compensation.
This instrument can be used to facilitate a connection between any thermocouple with a mini-thermocouple jack and the Fluke 1524-256 2-Channel Handheld Thermometer.
The Fluke 2373-LTC Lemo to Universal Thermocouple Adapter can also be used to expand the Fluke 1524-256 2-Channel Handheld Thermometer’s scope-for-use.
Fluke 2373-LTC Lemo to Universal Thermocouple Adapter Key Features
- Includes a precision thermistor
- Supports reference junction compensation
- Can be used to facilitate a connection between any thermocouple with a mini-thermocouple jack and the Fluke 1524-256 2-Channel Handheld Thermometer
- Can be used to expand the Fluke 1524-256 2-Channel Handheld Thermometer’s scope-for-use
What’s Included in the Fluke 1524-256 2-Channel Handheld Thermometer Kit 4?
- 1x Fluke 1524-256 2-Channel Handheld Thermometer and Accessories
- 1x Fluke 5615-12-P Secondary Reference Temperature Probe
- 1x Fluke 2373-LTC Lemo to Universal Thermocouple Adapter
- 1x Carry Case
Fluke 1524-256 2-Channel Handheld Thermometer Kit 4 Technical Specifications
Please find the available technical specifications for the items included in this kit.
Fluke 1524-256 2-Channel Handheld Thermometer Technical Specifications
Please note that the Fluke 1524-256 2-Channel Handheld Thermometer has a sister product, the Fluke 1523-256 1-Channel Handheld Thermometer, please find below the technical specifications for both of these models.
| Specification | 1523 | 1524 |
| Input channels | 1 | 2 |
| Resolution | PRTs and thermistors: 0.001° thermocouples: 0.01° | |
| Logging | 25 readings with statistics | 25 readings with statistics15,000 time and date stamped |
| Sample interval (normal) | 1 second | 1 second (simultaneous measurement) |
| Typical sample interval (fast mode) | 0.3 seconds | |
| Sensor types | PRTs, RTDs, thermistors, and thermocouples | |
| Thermocouple types | C, E, J, K, L, M, N, T, U, B, R, S | |
| Statistics | Maximum, minimum, average, standard deviation | |
| Trending | Scale: ±10 °C (18 °F), ±1 °C (1.8 °F), ± 0.1°C (0.18 °F), ± 0.01°C (0.018 °F), 10 minutes of real-time data | |
| Power requirements | 3 AA alkaline batteries, 12 V dc universal power supply | |
| Size (HxWxD | 96 mm x 200 mm x 47 mm (3.75 in x 7.9 in x 1.86 in) | |
| Weight | 0.65 kg (1.4 lb) | |
| Computer interface | RS-232, 9940 I/O ToolKit software included | |
| Safety | EN61010-1:2001, CAN/CSA C22.2 No. 61010.1-04 | |
| Environmental conditions for best accuracy: 13 °C to 33 °C (55.4 °F to 91.4 °F) | ||
| Millivolt range and accuracy | –10 mV to 75 mV, ± (0.005 % + 5 µV) | |
| Internal reference junction compensation | ± 0.2 °C (± 0.36 °F) | |
| Resistance range and accuracy |
0 Ω to 400 Ω ± (0.004 % + 0.002 Ω) 200 Ω to 50 kΩ ± (0.01 % + 0.5 Ω) 50 kΩ to 500 kΩ ± (0.03 %) |
|
|
Temperature coefficient, voltage: –10 °C to 13 °C , +33 °C to 60 °C (14 °F to 55.4 °F, 91.4 °F to 140 °F) |
± (0.001 %/°C + 1 mV/°C) | |
|
Temperature coefficient, resistance: –10 °C to 13 °C ,+33 °C to 60 °C (14 °F to 55.4 °F, 91.4 °F to 140 °F) |
0.0008 %/°C + 0.0004 Ω (0 Ω to 400 Ω) 0.002 %/°C + 0.1 Ω (0 Ω to 50 kΩ) 0.06 %/°C + 0.1 Ω (50 kΩ to 500 kΩ) |
|
| Excitation current, resistance | 1 mA (0 Ω to 400 Ω) 10 µA (0 Ω to 50 kΩ) 2 µA (50 kΩ to 500 kΩ) | |
| *See technical manual for sample interval details by sensor type and number of inputs. | ||
Fluke 5615-12-P Secondary Reference Temperature Probe Technical Specifications
| Temperature range | –200 °C to 420 °C | |
| Nominal resistance at 0 °C | 100 Ω ± 0.10 Ω | |
| Temperature coefficient | 0.0039250 Ω/Ω/°C | |
| Accuracy[1] | ± 0.024 °C at –200 °C | |
| ± 0.012 °C at 0 °C | ||
| ± 0.035 °C at 420 °CC | ||
| Short-term repeatability[2] | ± 0.009 °C at 0.010 °C | |
| Drift[3] | ± 0.007 °C at 0.010 °C | |
| Sensor length | 28 mm (1.1 in) | |
| Sensor location | 6.9 mm ± 3.3 mm from tip (0.27 in ± 0.13 in) | |
| Sheath dimensions | 305 mm x 6.35 mm (12.0 in x 0.250 in) | |
| Sheath diameter tolerance | ± 0.127 mm (± 0.005 in) | |
| Sheath material | Inconel™ 600 | |
| Minimum insulation resistance | 1000 MΩ at 23 °C | |
| Transition junction temperature range[4] | –50 °C to 200 °C | |
| Transition junction dimensions | 71 mm x 13 mm dia (2.8 in x 0.5 in) | |
| Maximum immersion length | 254 mm (10 in) | |
| Response time[5] | 9 seconds typical | |
| Self heating (in 0 °C bath) | 50 mW/°C | |
| Lead-wire cable type | PTFE insulated with PTFE jacket, 22 AWG | |
| Lead-wire length | 183 cm (72 in or 6 ft) | |
| Lead-wire temperature range | –50 °C to 200 °C | |
| Calibration | NVLAP-accredited calibration included, lab code 200706-0. Please see calibration uncertainty table and its explanation of changeable uncertainties. | |
| Notes | [1] Includes calibration and 100 hr drift (k=2) | |
| [2] Three thermal cycles from min to max temp, includes hysteresis, 95 % confidence (k=2) | ||
| [3] After 100 hrs at max temp, 95 % confidence (k=2) | ||
| [4] Temperatures outside this range will cause irreparable damage. For best performance, transition junction should not be too hot to touch. | ||
| [5] Per ASTM E 644 | ||
|
NVLAP† Calibration Uncertainty |
||
| Temperature | Expanded Uncertainty (k=2) | |
| –196 °C | 0.024 °C | |
| –38 °C | 0.011 °C | |
| 0 °C | 0.010 °C | |
| 200 °C | 0.018 °C | |
| 420 °C | 0.029 °C | |
| Note: Calibration uncertainties depend on the uncertainties of the lab performing the calibration. Subsequent calibrations of this probe performed with different processes, at different facilities, or with changed uncertainty statements may state different uncertainties. †Lab code 200706-0 |
||
