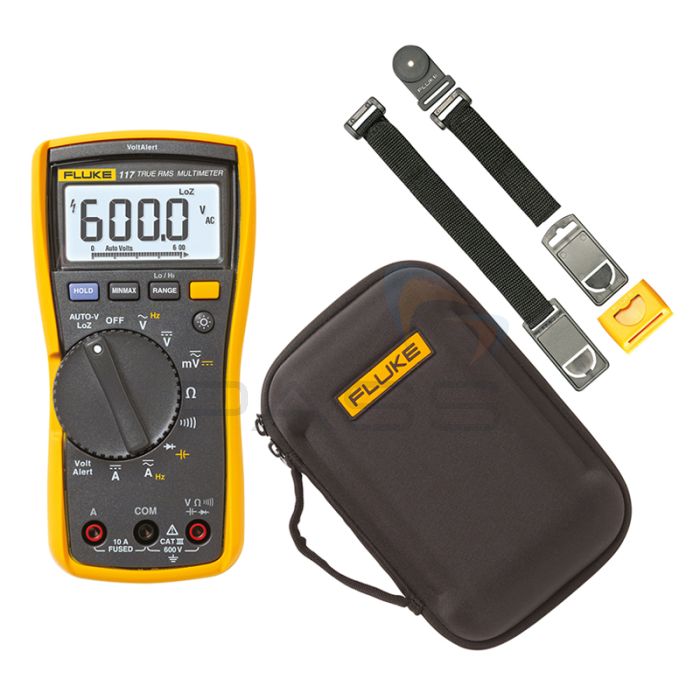

Fluke 117 Multimeter Kit with C11XT Case & TPAK Hanging Kit
Fluke 117 Multimeter Kit with C11XT Case & TPAK Hanging Kit
Ideal for electricians, electrical contractors, and field service technicians, this Fluke 117 Multimeter Kit Offer includes:
- Fluke 117 Digital Multimeter
- Fluke C11XT Hard Case
- Fluke TPAK Hanging Kit
Buy now as this Fluke 117 Multimeter Kit Promotion is only available until the 31st December 2024.
Fluke 117 Digital Multimeter Overview
The Fluke 117 Multimeter is a true-RMS digital multimeter capable of measuring AC/DC voltage up to 6000V; AC/DC current up to 10A; resistance up to 40MΩ; capacitance up to 10 000µf; and frequency up to 50kHz. It can determine min, max, and average measurements; data is displayed on the Fluke 117’s 6000-count, backlit LCD. To prevent inaccuracies caused by ghost voltages, the 117 includes a Low Input Impedance function. The Fluke 117 is also equipped with VoltAlert and AutoVolt technology for detecting voltage.
To learn more about the Fluke 117 Digital Multimeter, please click here.
Fluke C11XT Hard Case Overview
This durable, zipped case is made from high-quality 600D EVA foam. Fluke C11XT Hard Case also features mesh internal pockets and a carrying handle.
To read more about the Fluke C11XT Hard Case, please click here.
Fluke TPAK Hanging Kit Overview
Comprised of a nine-inch hook and loop strap; a universal hanger clip; a hook hanger for non-magnetic surfaces; and a strong magnet, the Fluke TPAK Hanging Kit can be used to hang your Fluke 117 Multimeter on nails, hooks, and other objects.
For more information about the Fluke TPAK Hanging Kit, please click here.
What’s Included?
- Fluke 117 Digital Multimeter
- 4mm Silicone Test Lead Set
- Rubber Boot
- Fluke 117 User Manual
- Fluke C11XT Hard Case
- Fluke TPAK Hanging Kit
FREE Oxford Carry Case
- PASS Oxford Black Small Test Equipment Carry Case - PASSCASE-SM, typically £14.99
Fluke 117 Multimeter Technical Specifications
| Specifications | ||
| Maximum voltage between any terminal and earth ground | 600 V | |
| Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) | |
| Display | Digital: 6,000 counts, updates 4 per second | |
| Bar graph | 33 segments, updates 32 per second | |
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to +60°C | |
| Battery type | 9 volt Alkaline, NEDA 1604A / IEC 6LR61 | |
| Battery life | 400 hours typical, without backlight | |
| Accuracy Specifications |
||
| DC millivolts |
Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| DC volts |
Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | ±([% of reading] + [counts]): 0.5% + 2 | |
| Auto volts |
Range/resolution | 600.0 V / 0.1 V |
| Accuracy | 2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz) |
|
| AC millivolts¹ True RMS |
Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| AC volts¹ True RMS |
Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| Continuity |
Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer. |
|
| Ohms |
Range/resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode test |
Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance |
Range/resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF |
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z capacitance |
Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| AC amps True RMS (45 Hz to 500 Hz) |
Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.5% + 3 20 A continuous overload for 30 seconds max |
|
| DC amps |
Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3 20 A continuous overload for 30 seconds max |
|
| Hz (V or A input)² |
Range/resolution | 99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz |
| Accuracy | 0.1% + 2 | |
| Notes | 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. |
|
| Mechanical & General Specifications |
||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) |
|
| Weight | 550 g |
|
| Warranty | 3 years from Fluke |
|
Reviews
Additional Information
| SKU | FLK-117/C11XT/TPAK |
|---|---|
| Manufacturer Part Code | 6016671 |
