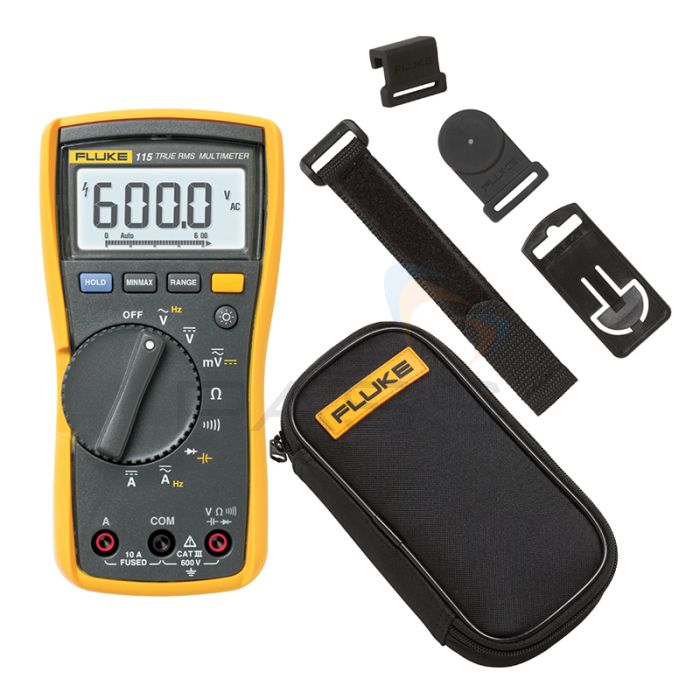

Fluke 115 Multimeter Kit with C50 Carry Case & TPAK Hanging Kit
- Fluke 115 measures voltage, current, continuity, resistance, & frequency
- Soft C50 Carry Case with an internal pocket, meter strap, & belt loop
- Hang 115 on nails, hooks & other objects with the TPAK Hanging Kit
SKU
115/C50/TPAK
MPN
5199008
Fluke 115 Multimeter Kit with C50 Carry Case & TPAK Hanging Kit
Available until the 31st December 2024, Fluke’s 115 Multimeter Kit Promotion includes:
- Fluke 115 Digital Multimeter
- Fluke C50 Carry Case
- Fluke TPAK Hanging Kit
This Fluke 115 Multimeter Kit is ideal for electricians/electrical contractors and field service technicians.
Fluke 115 Digital Multimeter Overview
Measure AC and DC voltage up to 600V; AC and DC current up to 10A; continuity to 600Ω; resistance up to 40MΩ; and frequency up to 50kHz with the Fluke 115 Multimeter. True-RMS and a built-in LoZ function, which filters out ghost voltages, ensure the Fluke 115’s accuracy. The 115 also supports Min/Max/Avg calculations; data is displayed on the large, backlit LCD. Finally, this compact digital multimeter features a rotary dial for selecting the required function.
To read more about the Fluke 115 Digital Multimeter, click here.
Fluke C50 Carry Case Overview
The Fluke C50 Carry Case is a soft case featuring an internal pocket, meter strap, and a belt loop.
To find out more about the Fluke C50 Carry Case, click here.
Fluke TPAK Hanging Kit Overview
Hang your 115 Multimeter on nails, hooks, and other objects using the Fluke TPAK Hanging Kit. This kit includes a nine-inch hook and loop strap; a universal hanger clip; a hook hanger for non-magnetic surfaces; and a strong magnet.
To discover more about the Fluke TPAK Hanging Kit, click here.
What’s Included?
- Fluke 115 Digital Multimeter
- Fluke TL75 Test Leads
- Rubber Boot
- 9V Battery
- Fluke 115 User Manual
- Fluke C50 Carry Case
- Fluke TPAK Hanging Kit
£235.00
£282.00 inc vat
In Stock:
Available Next Working Day*
Technical Information
Specification
Fluke 115 Multimeter Technical Specifications
| Specifications | ||
| Maximum voltage between any terminal and earth ground | 600 V | |
| Surge protection | 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2 | |
| Display | Digital: 6,000 counts, updates 4 per second | |
| Bar graph | 33 segments, updates 32 per second | |
| Operating temperature | -10°C to + 50°C | |
| Storage temperature | -40°C to + 60°C | |
| Battery type | 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 | |
| Battery life | 400 hours typical, without backlight | |
| Accuracy Specifications | ||
| DC millivolts | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| DC volts | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | ± ([% of reading] + [counts]): 0.5% + 2 | |
| AC millivolts1 True RMS | Range/resolution | 600.0 mV / 0.1 mV |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| AC volts1 True RMS | Range/resolution | 6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V |
| Accuracy | 1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz) |
|
| Continuity | Range/resolution | 600 Ω / 1 Ω |
| Accuracy | Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer |
|
| Ohms | Range/resolution | 600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ |
| Accuracy | 0.9% + 1 | |
| Range/resolution | 40.00 MΩ / 0.01 MΩ | |
| Accuracy | 5% + 2 | |
| Diode test | Range/resolution | 2.00 V / 0.001 V |
| Accuracy | 0.9% + 2 | |
| Capacitance | Range/resolution | 1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF |
| Accuracy | 1.9% + 2 | |
| Range/resolution | > 1000 μF | |
| Accuracy | 5% + 20% | |
| Lo-Z capacitance | Range | 1 nF to 500 μF |
| Accuracy | 10% + 2 typical | |
| AC amps True RMS (45 Hz to 500Hz) |
Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.5% + 3 20 A overload for 30-seconds max |
|
| DC amps | Range/resolution | 6.000 A / 0.001 A 10.00 A / 0.01 A |
| Accuracy | 1.0% + 3 20 A overload for 30-seconds max |
|
| Hz (V or A input)2 | Range/resolution | 99.99 Hz / 0.01 Hz 999.9 Hz / 0.01 Hz 9.999 kHz / 0.001 kHz 50 kHz / 0.01 kHz |
| Accuracy | 0.1% + 2 | |
| Notes | 1. All AC voltage ranges except Auto-V/LoZ are specified from 1% to 100% of range. Auto-V/LoZ is specified from 0.0 V. 2. Frequency is AC coupled, 5Hz to 30 kHz for AC voltage. 2. Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. 2. Frequency is AC coupled, 5 Hz to 50 kHz for AC voltage. Frequency is DC coupled, 45 Hz to 5 kHz for AC current. 2. Temperature Range/Resolution: -40°F to 752°F / 0.2°F. |
|
| Mechanical & General Specifications |
||
| Size | 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in) | |
| Weight | 550 g | |
| Warranty | 3 years from Fluke | |
Document Downloads
Fluke 11X Multimeter - Datasheet
Fluke 11X Multimeter - Safety Information
Fluke 11X Multimeter - User Manual
Fluke 11X Multimeter - Calibration Manual
Fluke 11X Multimeter - Quick Reference Guide
Fluke 11X Multimeter - Brochure
Fluke 11X Multimeter - Statement of Memory Volatility
