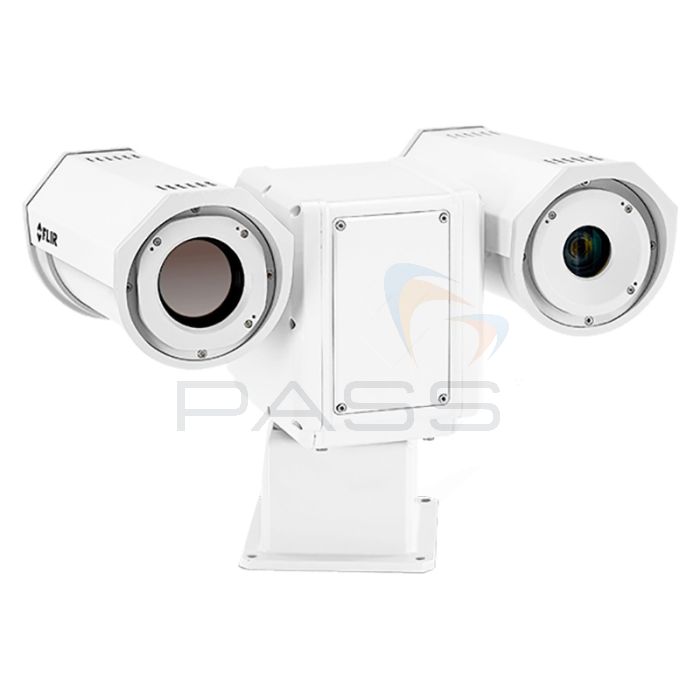

FLIR Triton PT-Series HD Thermal Security Camera, (8.3Hz) /w FOV, Zoom & Uncooled Options
- Superior image quality
- Designed for system integration
- Rugged housing
SKU
TRITON-PT6XX-HD-8.3HZ
The FLIR PT-Series HD is an advanced dual-sensor security system, combining a cooled or uncooled 640x480 resolution thermal sensor, a 1080p HD visible-light imaging sensor, and a high-speed, precision pan/tilt system. Integrates easily with FLIR United VMS 8.0, as well as other major third-party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
FLIR PT-Series HD thermal cameras detect intrusions at great distances. The weather-resistant housing includes deicing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.
Key Features
- 640 x 480 resolution thermal camera sees clearly in complete darkness or bright sunlight, through smoke, dust, and light fog
- High-performance thermal lens with 4X optical zoom and auto-focus
- 1080p HD camera with 30X optical zoom and outstanding low-light performance
- Deicing and de-fogging capabilities
- Sun-safe VOx uncooled thermal sensor technology
- Rated IP66 for dust and water ingress
- Vandal-resistant
- Integrates with FLIR's United VMS for such options as a fully programmable preset tour, dual-sensor viewing mode, and alarm functions
- Open IP standards for plug-and-play integration with 3rd party VMSs and devices
- Simultaneous IP and analog outputs of thermal and visible-light video
- ONVIF compliant
Product Range
- FLIR 427-0075-01-00S PT-606Z HD Thermal Security Camera, 640x480, US (30Hz) - 26-105mm
- FLIR 427-0075-03-00S PT-608 HD Thermal Security Camera, 640x480, US (30Hz) - 75mm
- FLIR 427-0075-04-00S PT-612 HD Thermal Security Camera, 640x480, US (30Hz) - 50mm
- FLIR 427-0075-05-00S PT-617 HD Thermal Security Camera, 640x480, US (30Hz) - 35mm
- FLIR 427-0075-06-00S PT-625 HD Thermal Security Camera, 640x480, US (30Hz) - 25mm
- FLIR 427-0075-08-00S PT-644 HD Thermal Security Camera, 640x480, US (30Hz) - 13mm
SUPERIOR IMAGE QUALITY
The PT-Series HD's thermal camera offers up to a 14x continuous zoom, while the low-light HD camera has a 30x optical zoom.
RUGGED HOUSING
The weather-resistant housing includes deicing and de-fogging capabilities, plus a changeable thermal payload cassette that significantly reduces maintenance time.
DESIGNED FOR SYSTEM INTEGRATION
When controlled using FLIR United VMS, enhanced capabilities are enabled, including automated PTZ tracking and fixed camera-target handoff.
Technical Information
Specification
Specifications
| PT-606Z HD | PT-608 HD | PT-612 HD | PT-617 HD | PT-625 HD | PT-644 HD | |
|---|---|---|---|---|---|---|
| General | ||||||
| Detector Type | Long-Life, Uncooled VOx Microbolometer | |||||
| Dimensions (L x W x H) | 13.7", 18.4", 12.8" (348mm, 467mm, 326 mm) | |||||
| Input Voltage | 24 VDC (21-30 VDC), 24 VAC (21-30 VAC) | |||||
| Power Consumption | 24 VAC: 85 VA (max w/o heaters) 215 VA (max w/heaters) 24 VDC: 65 W (max w/o heaters) 195 W (max w/heaters) | |||||
| Thermal Array Format | 640 x 480 | |||||
| Thermal Effective Resolution | 307,200 | |||||
| Thermal E-Zoom | Continuous E-Zoom to 4x | |||||
| Thermal Focus Range | Athermalized, Focus-Free | |||||
| Thermal Pixel Pitch | 17 µm | |||||
| Thermal Spectral Range | 7.5 µm to 13.5 µm | |||||
| Weight | 36 lbs. (16.4 kg) | |||||
| Zoom | 30X optical zoom with autofocus and 12X digital zoom | |||||
| Environmental | ||||||
| De-Icing/Anti-Icing | MIL-STD-810F, Method 521.1; - De-Icing | |||||
| Humidity | 0-95% relative | |||||
| IP Rating (dust & water ingress) | IP66 | |||||
| Operating Temperature Range | -40°C to 70°C cold start | |||||
| Shock | MIL-STD-810F "Transportation" | |||||
| Storage Temperature Range | -55°C to 85°C | |||||
| Vibration | IEC 60068-2-27 | |||||
| Measurement & Analysis | ||||||
| Programmable Presets | 256.0 | |||||
| Other | ||||||
| Type of Sensor | Full HD 1080p 1/2.8-type Exmor R CMOS | |||||
| PTZ | ||||||
| Pan Angle/Speed | Continuous 360°; 0.1° to 60°/sec | |||||
| Tilt Angle - Speed | +90° to -90°; 0.1° to 30°/sec | |||||
| System Integration | ||||||
| Ethernet | Yes | |||||
| External Analytics Compatible | Yes | |||||
| Network APIs | FLIR SDK FLIR CGI ONVIF Profile S | |||||
| Serial Control Interfaces | RS-232/-422; Pelco D, Bosch | |||||
| Supported Protocols | IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP | |||||
| Thermal Camera | ||||||
| Focal Length - Thermal | 26-105 mm | 75mm | 50mm | 35mm | 25mm | 13mm |
| Thermal Frame Rate | NTSC: 30 Hz; PAL: 8.3 Hz | |||||
| Thermal Image Settings | Auto AGC, Dynamic Detail Enhancement (DDE), Sensitivity | |||||
| Video & Recording | ||||||
| Composite Video NTSC or PAL | Yes: Hybrid IP & Analog | |||||
| Video Compression | Thermal: Two independent channels of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG | |||||
| Video Image Uniformity Optimization | Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers | |||||
| Video Streaming Resolution | Thermal: QVGA to VGA Visible: VGA to HD | |||||
| Video Thermal AGC Modes | Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity | |||||
| Video Thermal AGC Region of Interest [ROI] | Default, Presets, and User definable to ensure optimal image quality on subjects of interest | |||||
| Visible Camera | ||||||
| Array format | 640 x 480 | |||||
| Field of view (FOV) | 8.6° x 6.6° | 12° x 10° | 17° x 14° | 25° x 18° | 44° x 36° | |
| f-number | F1.6 to F4.7 | |||||
| Focal Length | 4.3 mm (wide) to 129.0 mm (Tele) | |||||
| Lens Field of View | 63.7° (wide end) to 2.3° (Tele end) | |||||
| Low Light Sensitivity | Color: 0.01 lx (F1.6, AGC on, 1/30s) | |||||
| Noise Reduction | Yes (6 steps) | |||||
| Sensitivity | <35mK @ 25c F# 1.0 | |||||
| Sensor Illumination | Back Light Compensation | |||||
| WDR | 120db | |||||
