FLIR EV45 EV Charger Test Adapter Set
- NACS or T2 plugs
- Tests residual current device (RCD)
- Compatible with Type 1 connectors
SKU
FLIR-EV45
These FLIR EV45 adapters help to ensure the safety and performance of electric vehicle (EV) charging stations. The test adapters verify the integrity of protective earth (PE) connections and electrical wiring while testing residual current devices (RCDs). When paired with an optional FLIR digital multimeter, they measure the charging voltage and frequency. Both adapters are compatible with Type 1 connectors and comply with CAT II 300 V and IEC 61851-1 EV safety standards. Available with NACS or T2 plugs.
Diagnose Problems and Increase Efficiency. See the Cleaner, Smarter EV Solutions from FLIR
Key Features
- Ensures EV charging station safety by verifying Protective Earth (PE) and electrical wiring integrity
- Tests residual current device (RCD)
- Indicates the maximum current output of EV chargers
- Compatible with Type 1 connectors
- Measures charging voltage and frequency when used with an optional FLIR digital multimeter
- Complies with CAT II 300 V and IEC 61851-1 EV safety standards
- Providing safe and reliable EV charging stations
- Installing and maintaining public and private EV chargers
- Diagnosing and troubleshooting EVSEs
What's Included?
- EV45-NACS or EV45-T2
- Converter for Type 1

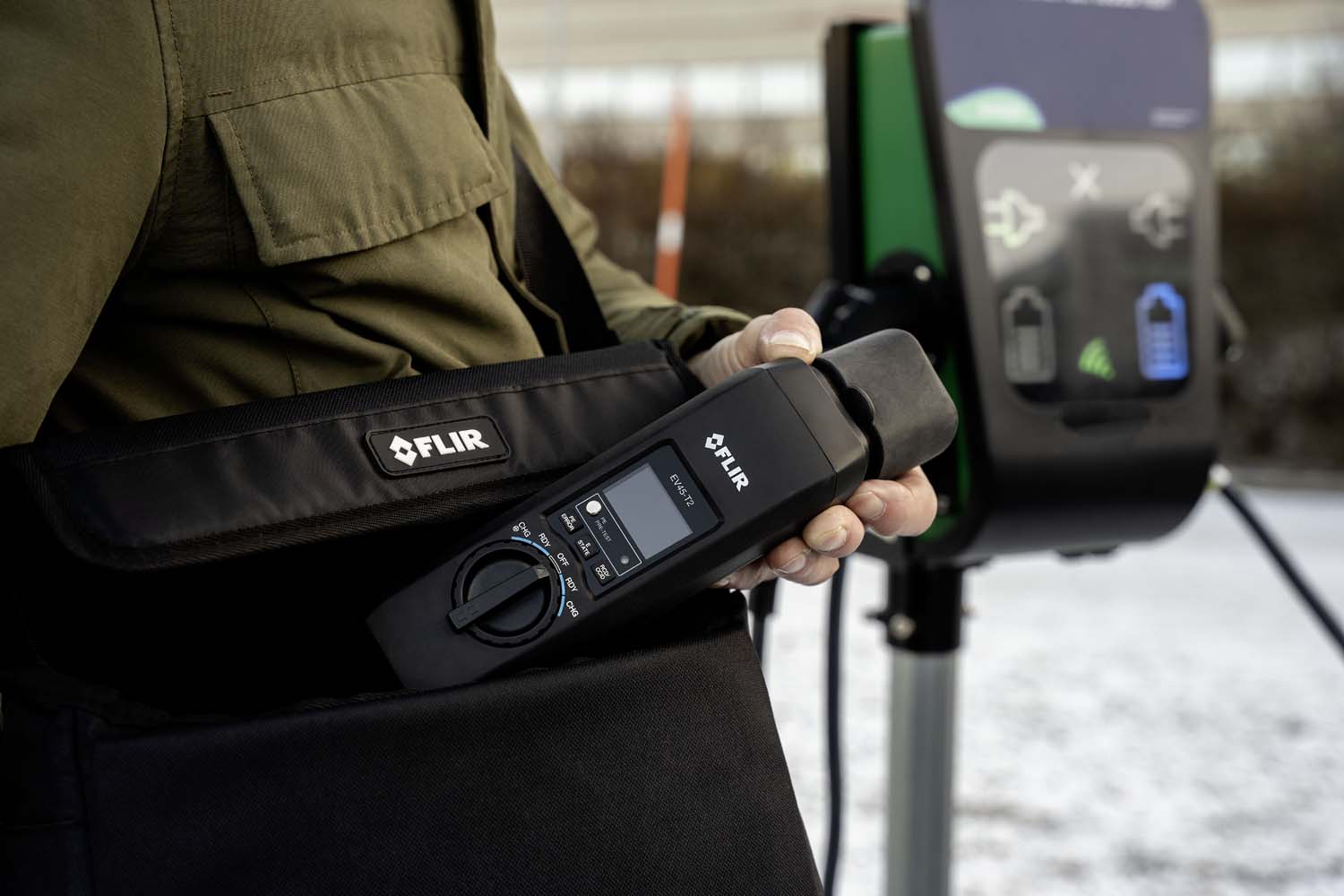

- Carrying Pouch
- Test Leads
- 4 x AA Batteries
- User Manual
Product Range
- FLIR EV45-NACS EV Charger Test Adapter with Type 1 Converter & NACS Plug
- FLIR EV45-T2 EV Charger Test Adapter with Type 1 Converter & Type 2 Plug
Technical Information
Specification
| Electrical Measurement | |
|---|---|
| PE Pre-Test | Pass / Fault (>50 V AC/DC between PE conductor and touch sensor) |
| PP State Indication | Open, 13 A, 20 A, 32 A, 63 A |
| CP State Simulation | A (Disconnected) B (Cconnected) C (Charging) D (Charging with ventilation) E (Error) |
| Voltage Phase Indication | L1 L2 L3 |
| CP Error (E State) Simulation | Pass / Fault (CP signal short-circuited to PE) |
| PE Error Simulation | Pass / Fault (interruption of PE conductor) |
| RCD/CCID Trip Test | Pass / Fault (Test RCD/CCID activation once tripped) |
| Outputs (For Test Purpose Only) | |
| Measuring terminals L1, L2, L3, PE, N | Max. 250 V (Single Phase) / 430 V (3 phase), 50 / 60 Hz, CAT II 300 V, Max. 10 A |
| Outputs (Optional Meters) | |
| Connect to DMM (DM286) | CP State C / D for AC Voltage with Hz measurement |
| Connect to Insulation Tester (IM75-2) | CP State B for EV cable Insulation Test |
| Power System | |
| Battery | 4 x AA Alkaline batteries |
| Battery Life | Paste |
| General Information | |
| Type 2 Connector (Built-in) | IEC 62196-2 Type 2 socket |
| Accessory Adaptor | IEC 62196-2 Type 2 to SAE J1772 Type 1 |
| Category Rating | CAT II-300 V |
| FLIR Warranty | Limited 3-Year Warranty |
| Certifications | |
| Certifications | ETL, CE, RCM |
| Safety Standards | IEC 61010-1 CAT II-300 V |
| EMC Standards | EN61326-1 |
| Environmental Data | |
| Operating Ambient Temperatures and Relative Humidity (RH) | -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Storage Temperature and RH | -20°C to 60°C (-4°F to 140°F), 0 to 80% RH (without batteries) |
| Operating Altitude | 2000 m (6560 ft) |
| Pollution Degree | 2 |
| Meter Physical Data | |
| Weight | 600 g (1.32 lbs) |
| Dimensions (L x W x H) | 237 mm x 65 mm x 56 mm (9.33 in x 2.56 in x 2.20 in) |
