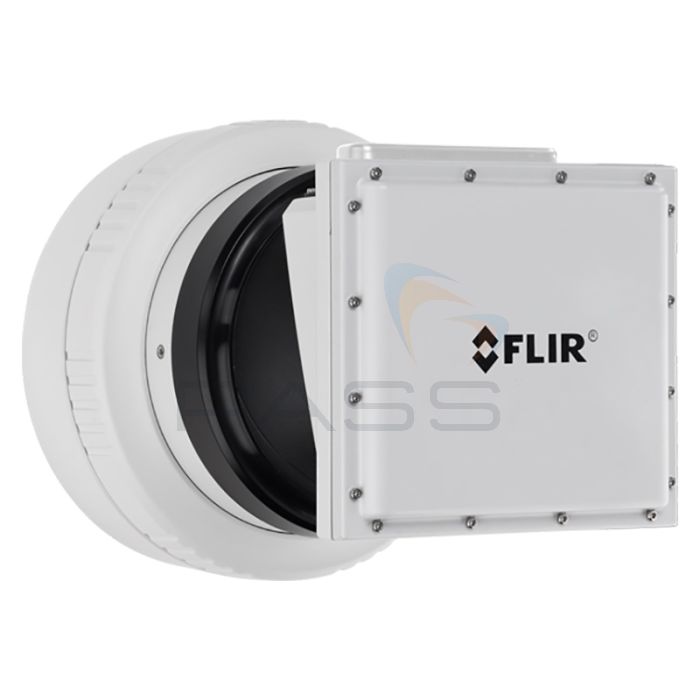

FLIR Elara™ R-190 Commercial Ground Security Radar (CE)

FLIR Elara™ R-190 Commercial Ground Security Radar (CE)

The FLIR Elara R-190 is a compact ground radar used to detect and provide early warning of intruders as part of a larger video surveillance system. Radars can track targets in all weather and lighting conditions and dynamically map them in real-time for position intelligence.

The Elara R-190 features a 90-degree field of view and up to a 300-metre range for vehicle tracking and a 125-metre range for human tracking, providing wide-area protection and situational awareness beyond the fence line. With simultaneous tracking of up to 32 targets and geolocation capability, the Elara R-190 can activate alarms and guide PTZ cameras for visual verification to maximize security coverage and increase the amount of time available to react to a threat.

Detect Intrusions Faster: Get advanced warning of intrusions beyond the fence line. Scan the field of view up to 10 times per second for quick target detection and smooth tracking of humans and vehicles.

Expand Situational Awareness: Continuously track and accurately locate up to 32 targets simultaneously. Intercept threats quickly in any environmental or weather condition.

Integrate Quickly and Affordably: Integrate radar target tracking information with video management systems (VMS) for precise accuracy and complete control.

Videos

Key Features

• Scan field of view up to 10 times per second for fast target detection and smooth target tracking
• Detect humans at distances up to 125 m (410 ft) and vehicles up to 300 m (984 ft)
• Long range and wide field of view enable a faster intrusion response than stand-alone camera systems
• Track targets in rain, snow, fog, light, and dark, while ignoring shadows and light reflections that trigger false alerts on visual-only systems
• Video stream birds-eye map with overlaid masking zones, alarm areas, targets, and associated target range
• Link multiple radars for large field-of-view requirements, and connect to a PTZ camera for seamless target tracking
• Combine multiple radars with overlapping coverage and no interference between units
• Compatible with FLIR United VMS and other third-party VMS using standard ONVIF S Conformant protocols
• Compatible with FLIR Triton PT-Series HD, FLIR Elara DX Series, and FLIR Saros DM Series Thermal Security Cameras; and Quasar 4K IR PTZ Visible Security Cameras

What's Included?

• Radar
• Back box
• Back box cover
• Back box side cover
• Wall mount plate
• RJ45 cover
• Screwdriver
• Hex wrench
• 10-pin I/O connector
