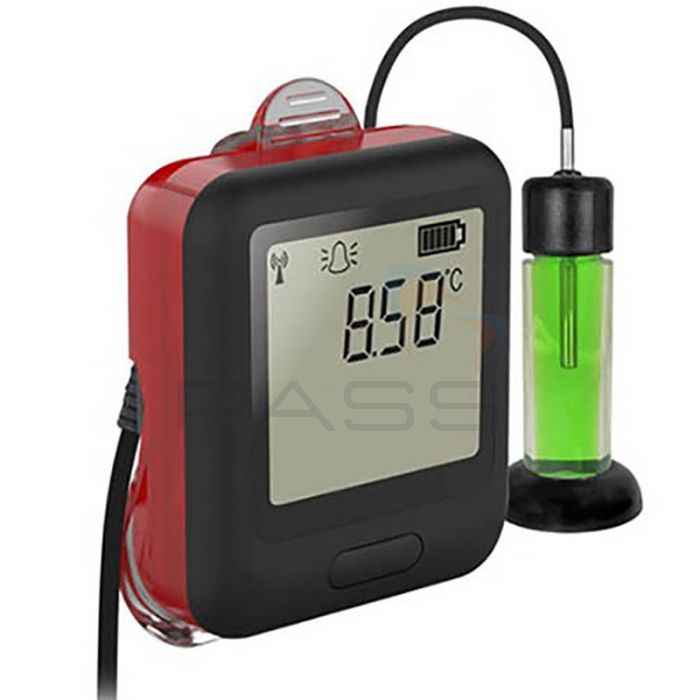

FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger

The FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger can be used to monitor the temperature of vaccine storage facilities. It streams temperature data via Wi-Fi to a PC, smartphone or tablet. Please see the video below for a brief introduction to FilesThruTheAir's EL-WiFi-X range.

This high-accuracy temperature data logger is fitted with a probe in a glycol-filled bottle which mimics the temperature response of vaccine samples. The FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger can measure the temperature of this probe to an accuracy of ±0.1-0.6°C. It has a temperature measurement range of -40°C to +60°C and is supplied with a traceable calibration certificate at 2°C and 8°C.

Moreover, the FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger does not need to be removed from service for recalibration as its probe can be replaced in the field, thereby maximising uptime.

Additionally, the FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger includes configurable alarm levels with audible and visual alerts. Its translucent back ensures users can easily see the red, flashing indicator while its audible beep means that those in close proximity will be alerted.

Data is streamed to PC, smartphone or tablet via any compatible Wi-Fi network and a browser or the EasyLog Cloud mobile app or the EasyLog Wi-Fi PC Software. The FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger supports WEP, WPA/WPA2 encryption and PEAP, TTLS and FAST enterprise networks; it is also IEEE 802.11bgn (2.4GHz) compliant.

If the FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger loses connection with the Wi-Fi network it will log readings until it can reconnect with the EasyLog Cloud. The FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger can log measurements at a maximum rate of every ten seconds for thirty days.

Using the EasyLog Cloud mobile app or EasyLog Wi-Fi PC Software, the operator can set up the FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger, as well as configure alarm email notifications. He/she can also view data gathered by multiple EL-WiFi-VACX Data Loggers and create graphs using historic data.

Finally, the FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger is a freestanding instrument that may also be mounted to a wall or surface using the supplied bracket. The body of the instrument has an ingress protection rating of IP42 while the probe has a rating of IP67.

The FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger is a simple, reliable and highly accurate wireless temperature datalogger optimised for monitoring vaccine temperatures.

FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger Key Features

• Monitors the temperature of vaccine storage facilities
• Streams data via Wi-Fi to a PC, smartphone or tablet
• Glycol-filled bottle mimics the temperature response of vaccines
• High accuracy: ±0.1 to ±0.6°C
• Temperature range: -40°C to +60°C
• Traceable calibration certificate at 2°C to 8°C
• Does not need to be removed from service for recalibration as the probe can be replaced in the field
• Configurable alarms with an audible and visual alert
• Translucent back ensures that users can easily see the red, flashing alarm indicator
• Audible indication alerts those in close proximity
• Supports WEP, WPA/WPA2 encryption
• Supports PEAP, TTLS and FAST enterprise networks
• IEEE 802.11bgn (2.4GHz) compliant
• Logs measurements when the Wi-Fi connection is lost
• Maximum logging rate: every 10 seconds for 30 days
• Easily set up the EL-WiFi-VACX and configure alarm email notifications using the EasyLog Cloud mobile app or EasyLog Wi-Fi PC Software
• View data gathered by multiple instruments and create graphs from historic data using the EasyLog Cloud mobile app or EasyLog Wi-Fi PC Software
• Freestanding instrument
• Can be mounted to a wall or surface using the supplied bracket
• IP42 instrument body
• IP67 probe
• Simple, reliable and highly accurate wireless temperature datalogger optimised for monitoring vaccines

What’s Included?

• FilesThruTheAir EL-WiFi-VACX Vaccine Temperature Data Logger
• Wall Mounting Bracket
• USB Type A to Micro B
