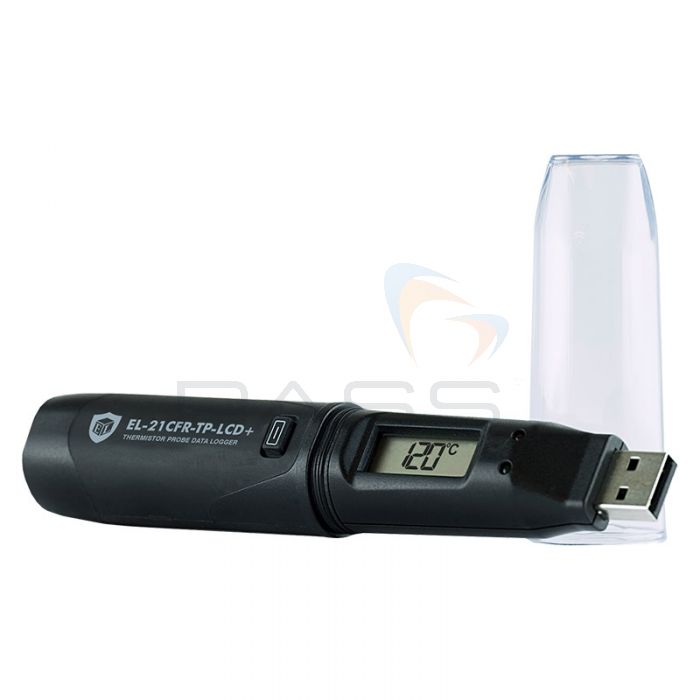

FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers

The FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Logger is available in two models which only differ in regards to the type of probe supplied with each logger, for further information, please see the following table.

These loggers have a temperature range of -40°C to +125°C (-40°F to 257°F) and are able to store approximately 32000 readings. They can be set to log measurements at rates ranging from once every second to once every twelve hours.

Current temperature readings can be viewed on the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers’ high-contrast LCD displays with a four-digit temperature display function. The FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers are able to display measurements to a resolution of 0.1°C (0.2°F) and feature a button that allows the user to cycle through the current temperature measurement as well as the minimum and maximum recorded temperature measurements.

Further to this, it is possible for the user to program the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers to include high and low alarms. When these alarms are breached the instruments will indicate this via a flashing, red LED light. Once the temperature returns to a value within the alarm range, a green LED will flash to indicate this.

Alarms are programmable using FilesThruThe Air’s free EasyLog 21 CFR Software (NOT included); this software can also be used to select the desired measurement unit (°C/ °F) and set the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers to begin logging with an immediate-, delayed- or when pushed-to-start. The user is also able to specify the sample rate using this software and can name the logger if required.

In addition to this the EasyLog 21 CFR Software can be used to graph, annotate, print or export data into other applications and/or PDF, jpeg or Excel files. Furthermore, it is possible to encrypt the data and the data is fully audit-traceable, these data security capabilities make the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Logger suitable for use as part of a 21 CFR Part 11 compliant system.

Moreover, the EasyLog 21 CFR Software can be used to create users with specific permissions, again adding to the security of this instrument. Other data management features available through this software include email alerts for failed logging attempts, software and session audit trails, the addition of digital signatures to reports and the ability to annotate particular readings.

Data is accessible via plugging the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Logger into the USB port of a computer with the above EasyLog 21 CFR Software installed.

In addition to the FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers’ versatility, adaptability and security, these instruments have also been optimised for longevity; as such, they are supplied with a lithium metal battery capable of sustaining the data logger for up to two years.

The FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Loggers are secure, practical and versatile instruments, suitable for use in FDA-regulated industries such as food and drug production.

FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Logger Key Features

• Available in two models which differ in regards to the type of probe supplied with each logger
• Temperature range: -40°C to +125°C (-40°F to 257°F)
• Capacity to store up to 32000 readings
• Sample rate ranging from once every second to once every twelve hours
• High-contrast LCD display
• Four-digit temperature display function
• Resolution: 0.1°C (0.2°F)
• Button for cycling through the current measurement as well as the minimum and maximum measurements
• User-programmable high and low alarms
• Flashing, red LED light indicates that an alarm has been breached
• A green LED light will flash to indicate that the temperature has returned to within the alarm range
• FilesThruTheAir’s free EasyLog’s 21 CFR Software (NOT included) can be used to configure the logger
• Via this software the user can set the sample rate, measurement unit (°C/ °F), alarm limits and configure the unit to begin logging with an immediate-start, delayed-start or when pushed-to-start
• Name the logger using the aforementioned software
• Graph, annotate, print and export data to other applications and/or in Excel, PDF or jpeg files using the EasyLog 21 CFR Software
• Data is fully audit-traceable and encrypted
• The data logger is suitable for use as part of 21 CFR Part 11 compliant systems
• EasyLog 21 CFR Software can be used to create users with specific permissions
• The software can be used to set-up email alerts for failed logging attempts, conduct software and session audit trails, add digital signatures to reports and annotate particular readings
• Plug into a PC with the free EasyLog 21 CFR Software installed to access data
• A practical, versatile and secure instrument suitable for use in FDA-regulated industries

What’s Included?

• Your Choice of FilesThruTheAir EL-21CFR-TP-LCD/+ Thermistor Probe Data Logger with the corresponding Thermistor Probe
• Battery
• Mounting Bracket
