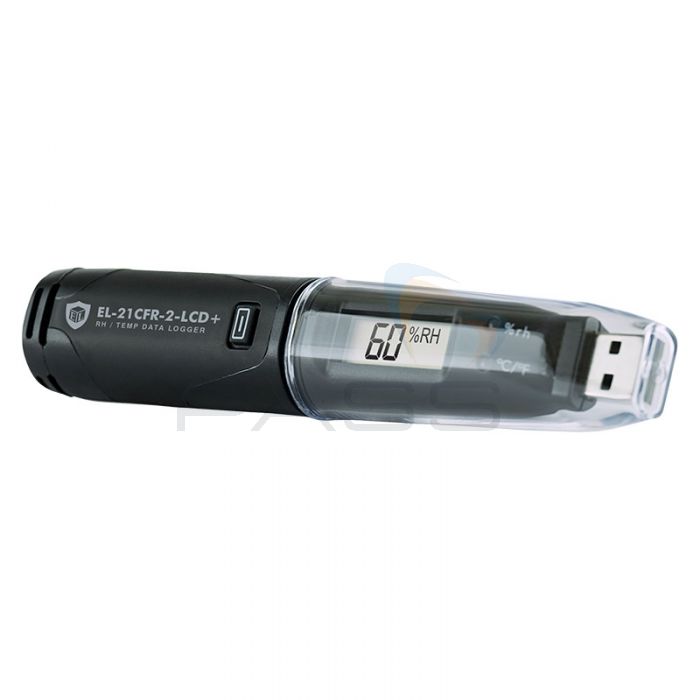

FilesThruTheAir EL-21CFR-2-LCD-X Temperature & Humidity Data Logger

The FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers can be used to measure and log temperature and humidity readings. They are capable of logging up to 16 000 readings for each of these entities.

Both models have a temperature range of -35 to +80°C (-31 to +176°F) with a resolution of 0.5°C (1°F) and a humidity range of 0 to 100% with a resolution of 0.5%RH. These models only differ in regards to their accuracies, for further information please see the following table.

The FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers can be programmed to begin logging immediately, with a delayed start or when pushed-to-start and may be programmed to log data as frequently as every ten seconds or as sporadically as ever 12 hours, as well as at a range of sample rates between these two extremes.

Further to this, the user is able to program high and low alarms for both temperature and humidity. If any of these alarm thresholds are breached, the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers will indicate this via a red flashing LED.

Temperature and humidity measurements are indicated on the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers' high-contrast LCD displays. They also feature a single-button which enables the user to cycle through the current temperature and humidity measurements and the minimum and maximum readings recorded for each parameter.

Data can be viewed and downloaded on to a PC via plugging the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Logger into a USB port. The user’s PC must have the FilesThruTheAir’s free EasyLog 21CFR Software (NOT included)  installed in order to access the logger’s information. This software can be used to graph data, including the calculated dew point, print data and export it either to other applications or into Excel, PDF or jpeg formats.

Further to this, the EasyLog 21 CFR Software can be used to configure the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers. It can be used to name the instrument, set the desired temperature unit (°C/°F), program alarms and set the unit to begin logging immediately or with a delayed start.

In addition to this, the EasyLog 21 CFR Software offers a number of features which allow the user to monitor and manage his/her data more effectively. It is possible to annotate readings, as well as add a digital signature to reports. Via this software, the user can also choose to receive email alerts regarding failed logging attempts.

Moreover, the software can be used to improve data security as it is possible to assign specific permissions to particular users as well as maintain full software and session data audit trails. These software capabilities, combined with the encrypted data’s full audit tracking, make the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers ideal instruments for complying with 21 CFR Part 11 requirements. As such these instruments are suitable for applications in food- and drug-production industries.

Furthermore, their durable design makes them well equipped for the rugged environments often found within these industry sectors. They feature a water and dust resistant casing which have an IP67 rating with the cap is fitted. This housing adds to the FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Loggers' physical longevity whilst their supplied lithium metal batteries ensure that the instruments remain operational for extended periods of time. This battery is able to power a data logger for up to 2 years.

The FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Logger is a comprehensive, reliable, durable instrument ideal for use in FDA-regulated industries.

FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Logger Key Features

• Measure and log temperature and humidity readings
• Capable of logging 16 000 readings for both temperature and humidity
• Temperature range: -35 to +80°C (-31 to +176°F)
• Temperature resolution: 0.5°C (1°F)
• Humidity range: 0 to 100%
• Humidity resolution: 0.5%RH
• Available in two models which differ in regards to their accuracies
• Can be programmed to begin logging immediately, with a delayed start or when pushed-to-start
• A range of sample rates spanning from every 10 seconds to every 12 hours
• Program high and low alarms for temperature and humidity
• Red LED flashes when alarms are triggered
• High-contrast LCD display
• Cycle through the current temperature and humidity reading as well as the minimum and maximum readings for these parameters via a single button
• Plug into a PC USB port to access recorded data
• Use with the EasyLog 21 CFR Software (NOT included) to graph, print and export data
• EasyLog 21 CFR Software can be used to configure the data logger
• Monitor, manage and protect data using the EasyLog 21 CFR Software
• Data is encrypted and features full audit tracking
• Suitable for maintaining compliance with 21 CFR Part 11 regulations
• Water and dust resistant casing
• IP67 with the cap attached
• Supplied with a lithium metal battery
• The battery is able to power the logger for up to two years
• A comprehensive, reliable, durable instrument ideal for use in FDA-regulated industries

What’s Included?

• Your Choice of FilesThruTheAir EL-21CFR-2-LCD-X Temperature and Humidity Data Logger
• Battery
• Mounting Bracket
