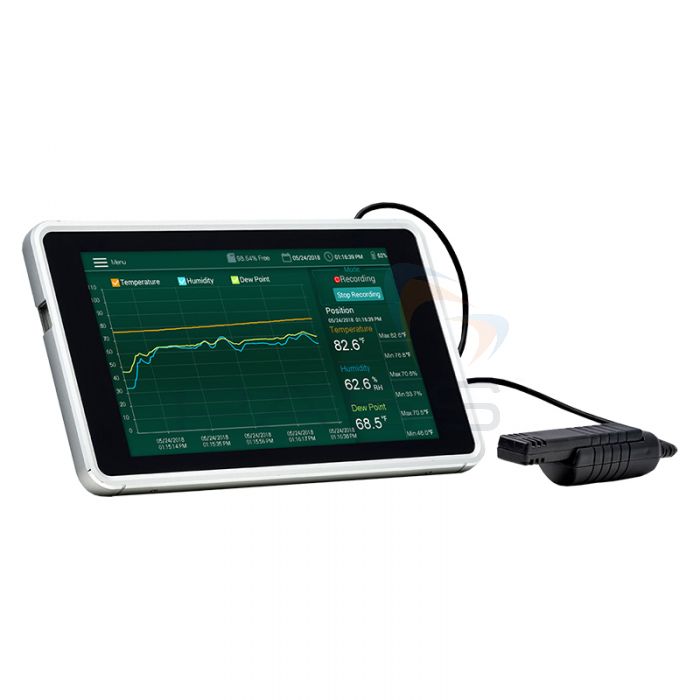

Extech RH550 Humidity & Temperature Chart Recorder

The Extech RH550 Humidity & Temperature Chart Recorder is a temperature, relative humidity and calculated dew point datalogger. It is capable of recording and monitoring all three of these parameters simultaneously; real-time readings can be viewed numerically and graphically on the Extech RH550 Humidity & Temperature Chart Recorder’s large, 7” (178mm) programmable touchscreen display.

The Extech RH550 Humidity & Temperature Chart Recorder will also indicate the date and time via its high-resolution (1024 x 600px), colour, TFT LCD display. This chart recorder features a display zoom feature and screen capture capability enabling the user to view the readings most relevant to him/her.

The user can program the Extech RH550 Humidity & Temperature Chart Recorder to include Min and Max alarm set points; it will issue a visual and audible alert when user-programmed limits are breached. Additionally, the dew point, temperature and humidity datalogger's MIN/MAX function will record the minimum and maximum readings for all three parameters.

This temperature, dew point and humidity logger can be set to record live data or may be set to save measurements at scheduled times. Furthermore, the Extech RH550 Humidity & Temperature Chart Recorder’s sampling rate can be adjusted as necessary. This humidity, dew point and temperature tablet's user-selectable sampling rate ranges from every second to every twenty-four hours.

Temperature, humidity and calculated dew point measurements can be saved to the Extech RH550 Humidity & Temperature Chart Recorder’s internal 16GB memory. It has the capacity to store up to 20 000 data points in a CSV format which may be transferred to a PC via a USB connection. The temperature, dew point and humidity tablet’s memory progress bar provides a visual indication of the memory used, as well as the percentage of the remaining memory.

It is possible to recall saved data files from the Extech RH550 Humidity & Temperature Chart Recorder’s memory using the History mode. Additionally, recorded alarm values can be displayed by date or may be sorted according to parameter: temperature or humidity.

The Extech RH550 Humidity & Temperature Chart Recorder can be used to monitor temperature, humidity and dew point in buildings, conference rooms, laboratories, cleanrooms, hospitals, hydroponics, greenhouses, food storage facilities and refrigerators. Allowing the user to adapt the dewpoint, humidity and temperature logger to accommodate various applications is its built-in stand for desktop use and supplied wall mount bracket. Its field-replaceable probe (no calibration required), may be attached to the tablet directly or to an extendable, 6.5ft (2m) cable allowing the user to monitor closed environments. Additionally, up to three probe cables may be connected together, allowing the user to access difficult-to-reach places.

The Extech RH550 Humidity & Temperature Chart Recorder is an adaptable, configurable and ergonomic environmental monitor and datalogger capable of measuring and recording temperature, relative humidity and calculated dew point.

Extech RH550 Humidity & Temperature Chart Recorder Key Features

• A relative humidity, calculated dew point and temperature datalogger
• Records and monitors all three parameters simultaneously
• Real-time readings can be viewed numerically and graphically
• Large (7”/ 178mm), high-resolution (1024 x 600px), colour, TFT LCD display
• Programmable touchscreen menu
• Screen capture
• Display zoom
• Programmable min and max alarm set points
• Issues an audible and visual alert when alarms are triggered
• MIN/MAX function will record the minimum and maximum readings for all three parameters
• Set to monitor and record live data or at scheduled times
• User-selectable sampling rate: 1 second to 24 hours
• Internal 16GB memory with the capacity to store up to 20 000 data points
• Data points are saved in a CSV format that may be transferred to a PC via a USB connection
• The memory progress bar indicates the memory used and the percentage of the remaining memory
• History mode: recall saved data files
• View recorded alarm details by parameter (temperature or humidity) or according to date
• Monitor temperature, humidity and dew point in buildings, conference rooms, laboratories, cleanrooms, hospitals, hydroponics, greenhouses, food storage facilities and refrigerators
• Built-in stand for desktop mount
• Supplied with a wall mount bracket
• Field-replaceable probe (no calibration required)
• The probe can be attached to the tablet or to the extendable, 6.5ft (2m) probe cable
• Use the probe cable to conduct measurements in closed environments
• Connect up to three probe cables to each other in order to access difficult-to-reach places
• An adaptable, configurable and ergonomic environmental monitor and datalogger

What’s Included?

• Extech RH550 Humidity & Temperature Chart Recorder
• Wall Mount Bracket
• Extech RH550-P Detachable Probe
• Extech RH550-C Probe Cable
• USB Cable
• Universal Adapter with Multi-Plugs (US, EU, UK and AU)
• Internal Rechargeable Lithium Polymer Battery
