Extech HD350 Pitot Tube Anemometer + Differential Manometer
- Measure pressure, air velocity, air flow and temperature
- Long-length pitot tube ideal for inserting into ventilation
- MIN/MAX/AVG mode, data hold and internal memory
SKU
HD350
MPN
HD350
Ideal for applications where common vane anemometers won't fit, the pitot tube included with the HD350 allows navigation into difficult ducts and other HVAC applications in order to measure air velocity, air flow and overall pressure inside ventilation.
A dual function instrument, the HD350 is capable of showing testing results simultaneously and can show a pressure, air velocity or air flow value plus a temperature reading at the same time. It also includes multiple testing units and when measuring pressure users can choose between psi, mbar, inH20, mmH20 and Pa measurement modes, while air velocity measurements can be calculated in ft/min, m/s, km/h, MPH and knots. Both CFM and CMM air flow measurements are also possible and temperature can be calculated in either Celsius or Fahrenheit.
The HD350 also contains the ability to log testing data and can store up to 99 readings in each mode for easy recall at a later date. It is also possible to send this data over to PC by connecting a USB cable to the device and porting it into the included software package.
Additional functions of this device include MIN/MAX/AVG parameter calculation, relative time stamping, data hold, auto power off and a backlit LCD screen for using the meter in darkened areas.
Extech HD350 Pitot Tube Anemometer + Differential Manometer Key Features
- Measure pressure, air velocity, air flow and temperature on one device
- Long-length thin pitot tube is ideal for insertion into ventilation
- 5 selectable pressure measurement units
- Five selectable air velocity measurement units
- CFM and CMM air flow measurements
- Celsius and Fahrenheit calculations
- MAX/MIN/AVG and relative time stamping
- Data hold function
- Auto power off function
- Large LCD display with backlighting
- Zero function for offset correction or measurement
- Store/recall up to 99 readings in each mode
- USB port includes software

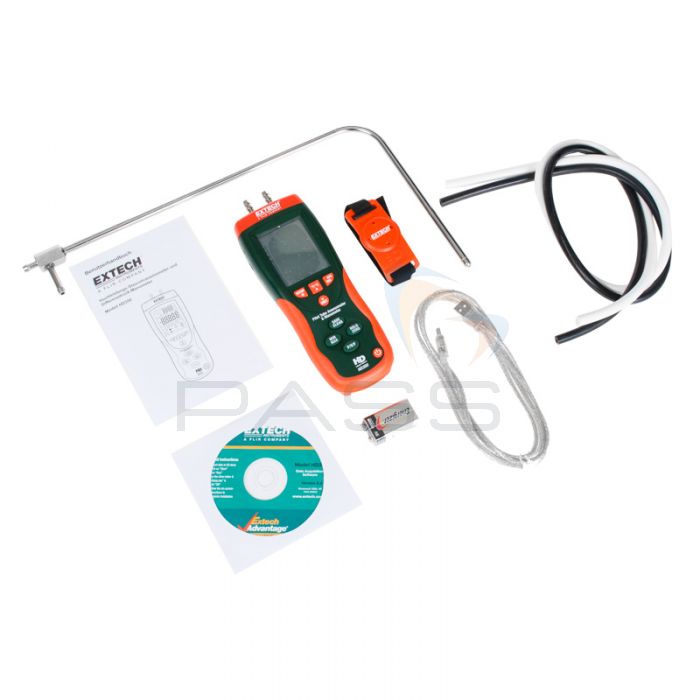

What's Included?
- Extech HD350 Pitot Tube Anemometer + Differential Manometer
- Windows Compatible Software with Cable
- 9V Battery
- Pitot Tube with Two 33.5" (85cm) Connection Hoses
- Hard Carrying Case
£237.60
£285.12 inc vat
4 in Stock:
Available Next Working Day*
Technical Information
Specification
Extech HD350 Technical Specifications
| Specifications | Range | Resolution | Accuracy |
| Pressure | |||
| psi | 0.7252psi | 0.0001psi | ±0.3%FS |
| mbar | 50.00mbar | 0.01mbar | ±0.3%FS |
| inH20 | 20.07inH2O | 0.01inH2O | ±0.3%FS |
| mmH20 | 509.8mmH2O | 0.01mmH2O | ±0.3%FS |
| Pa | 5000Pa | 1Pa | ±0.3%FS |
| Repeatability | ±0.2% (Max. ±0.5%FS) | ||
| Linearity/hysteresis | ±0.29FS | ||
| Maximum Pressure | 10psi | ||
| Response Time | 0.5s typical | ||
| Air Velocity | |||
| ft/min | 200 to 15733 | 1 | ±3% rdg |
| m/s | 1 to 80.00 | 0.01 | ±3% rdg |
| km/h | 3.5 to 288.0 | 0.1 | ±3% rdg |
| MPH | 2.25 to 178.66 | 0.01 | ±3% rdg |
| knots | 2.0 to 154.6 | 0.1 | ±3% rdg |
| Air Flow | |||
| CFM | 0 to 99999 | 0.001 | ±3% rdg |
| CMM | 0 to 99999 | 0.001 | ±3% rdg |
| Temperature | |||
| Fahrenheit | 32.0 to 122.0°F | 0.1° | ±2°F |
| Celsius | 0 to 50°C | 0.1° | ±1°C |
| Dimensions/WeightMeter: 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) / 12oz (340g) Pitot Tube:15.4 x 7.7” (390 x 195mm) / 7.2oz (204g) |
|||
Document Downloads
Extech HD350 Pitot Tube Anemometer + Differential Manometer - Datasheet
Extech HD350 Pitot Tube Anemometer - User Manual
