Extech EC510 Waterproof ExStik II pH/Conductivity Meter Kit

All Extech Products
  • RENEW feature which alerts users to replace electrode
  • Nine units of measurement
  • 25 labelled readings memory
SKU
EC510
MPN
EC510

Read More

View All pH Meters & Water Quality Testers

This bundle package contains everything you need for carrying out measurements of conductivity, TDS, salinity, pH and temperature.

The main tester that is included in this pack is the Extech EC500, a portable, lightweight testing device that can be used to measure all of the aforementioned parameters. The unit also features 9 different measurement units, with pH, μS/cm, mS/cm, ppm, ppt, mg/L, g/L, °C and °F measurements possible using this meter.

This multipurpose meter uses a high quality electrode in order to carry out measurements. The detected results from the electrode are relayed automatically through this device's LCD screen as both a numerical reading and analogue bargraph representation complete with full temperature information at the same time. Up to 25 of these records can also be stored on the devices' internal memory complete with labelled information.

The EC500 also contains a number of additional features which are outlined further below.

This kit also comes with a selection of accessories designed to be used in combination with the device (these also are detailed below).

Extech EC500 Waterproof ExStik II pH/Conductivity Meter Key Features

  • Measures conductivity from 0 to 199μS/cm, 200 to 1999μS/cm, 2.00 to 19.99mS/cm
  • Measures TDS from 0 to 99.9ppm (mg/L), 100-999ppm (mg/L), 1.00 to 9.99ppt
  • Measures pH from 0.00 to 14.00pH
  • Measures temperature from 23° to 194°F (-5 to 90°C)
  • IP57 wateproofing
  • 9 measurement units: pH, μS/cm, mS/cm, ppm, ppt, mg/L, g/L, °C and °F
  • Analogue bargraph display
  • Simultaneous display of measurement parameter plus temperature reading
  • In-built memory stores up to 25 labelled reading
  • Adjustable conductivity to TDS ratio from 0.4 to 1.0; 0.5 fixed salinity ratio
  • RENEW function lets users known when replacement electrodes are needed
  • Auto power off + plus low battery indication

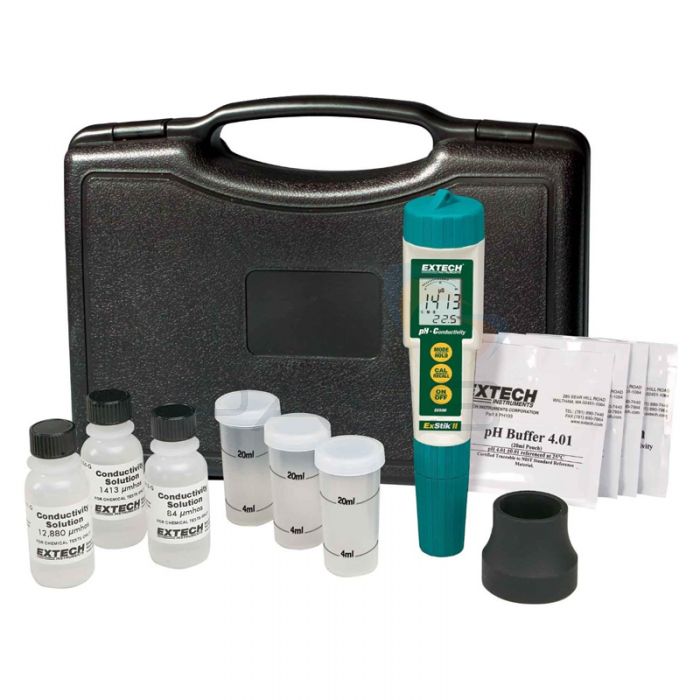

Full List of Products Included

  • Extech EC500 Waterproof ExStik II pH/Conductivity Meter
  • 84μS/cm Conductivity Calibration Standard
  • 1413μS/cm  Conductivity Calibration Standard
  • 12880μS/cm Conductivity Calibration Standard
  • pH Buffer Pouches (1 Each of 4, 7 and 10pH)
  • Rinse Solution
  • Weighted Base
  • 3 Sample Cups with Caps
  • Carrying Case (Hard)

*Please note that Extech pH meters must be kept moist using solution at a pH of 4 or they will dry out and not work.

£178.00
£213.60 inc vat
Important Notice
This item is made-to-order exclusively for you once your order is placed. As a result, it is not eligible for cancellation or return under our standard policy. Your statutory rights remain unaffected.
178 Reward Points 60 Days Return

Ask An Expert
Price Match
Technical Information
Specification

Extech EC500 Technical Specifications

Specifications Range Max Resolution Basic Accuracy
Conductivity 0 to 199μS/cm, 200 to 1999μS/cm, 2.00 to 19.99mS/cm 0.1μS/cm ±2%FS
TDS/Salinity 0 to 99.9ppm (mg/L), 100-999ppm (mg/L)
1.00 to 9.99ppt
0.1ppm (mg/L) ±2%FS
pH 0.00 to 14.00pH 0.01pH ±0.01pH
Temperature 23° to 194°F (-5 to 90°C) 0.1°F/°C ±1.8°F/1°C
Waterproof IP57
Memory 25 datasets
Dimensions 1.4 x 7.3 x 1.6" (36 x 186 x 41mm)
Weight 3.8oz (110g)
Document Downloads
Extech EC510 Waterproof II pH/Conductivity Meter Kit - Datasheet Datasheet
ExStik EX500 Kit - User Manual Manual/Guide
