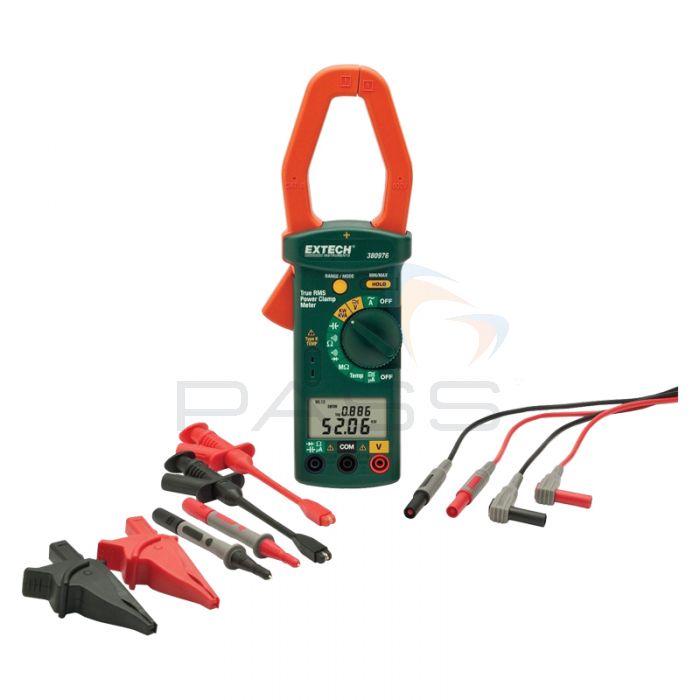

Extech 380976-K AC Power Clamp Meter + Test Lead Kit

Extech 380976 K Single Phase Three Phase 1000A AC Power Clamp Meter Kit

Measure both single and three phase
Measure current, insulation, resistance, temperature and power
40mm clamp jaws

SKU

380976-K

MPN

380976-K

View All AC & DC Clamp Meters

Description Technical Info Reviews Accessories

Built for use in AC power evaluation, motor generator installation repair and other applications such as HVAC flame rod testing, the Extech 380976-K allows the user to carry out measurements quickly and easily.

The jaws of this device have a 1.6" (40mm) jaw opening, allowing them to be clamped onto medium-to-larger conductors in order to carry out testing of AC current (with true-RMS) from 10mA up to 1000A. Its also possible to use a special μA current mode as well which can measure from 10nA to 1000μA (ideal for flame-rod testing).

As well as current measurements the 380976-K can also be used to measure1ϕ/3ϕ True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), plus Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. It also includes a suite of multimeter functions and can be used to measure AC/DC voltage, resistance, capacitance, frequency and type-K temperature.

This clamp meter is CAT III 600V safety rated.

Extech 380976-K AC Power Clamp Meter + Test Lead Kit Key Features

Comprehensive suite of power measurement tools
Measures true power
Apparent power
Reactive power
Horsepower
Power factor
Phase angle with lead/lag indicator
AC+DC μA current with 10mA resolution
MAX/MIN recording
Auto detection of AC/DC voltage measurements with frequency display at same time
Capacitance measurements to 7000μF with 0.001μF resolution
High resistance tests to 100MΩ
Type K temperature measurements with selectable °C/°F
Diode and continuity testing
Auto power off with disable function
1.6" (40mm) clamp jaw opening

Full List of Products Included

Extech 380976-K AC Power Clamp Meter
Test Lead Kit
General Purpose Type K Thermocouple Probe
Carrying Case
9V Battery

Contents of Test Lead Kit

2 x CAT IV-600V 72" (1.8M) Lead Extensions with Right Angle and Straight End Shrouded Banana Plugs
2 x Modular Test Probe Handles with Stainless Steel Tips
2 x Plunger Activated Retractable Jaw Clips
2 x Extra Large Alligator Clips

£189.00

£226.80 inc vat

Stock Due: Typically 1-2 Weeks

189 Reward Points 60 Days Return

Technical Information

Specification

Extech 380976-K Technical Specifications

Function	Max Range/Resolution	Basic Accuracy
True Power (W)	600kW / 10W	±5%
Apparent Power(kVA)	600kVA / 100VA	±2%
Reactive Power (kVAR)	600kVAR/10VAR	±5%
Horsepower (HP)	800HP/0.01HP	±5%
Phase Angle (f)	-60 to +60° / 0.1°	±6°
AC Current: (Trms)	1000A / 10mA	±2%
uA Current (AC+DC) (Trms)	1000μA / 10nA	±1%
AC/DC Voltage: (Trms)	600V / 0.1mV	±1%
Resistance (Ω)	1000kΩ / 0.1Ω	±1%
Resistance (MΩ)	100MΩ / 1kΩ	±5%
Capacitance	7000μF / 1nF	±1.5%
Frequency	40Hz to 1kHz / 0.1Hz	±0.5%
Temperature (Type K)	-58 to 1000°F / 0.1°F -50 to 900°C / 0.1°C	±1%
Dimensions	9 x 3 x 1.6" (228 x 76 x 39mm)
Weight	16.4oz (465g)
