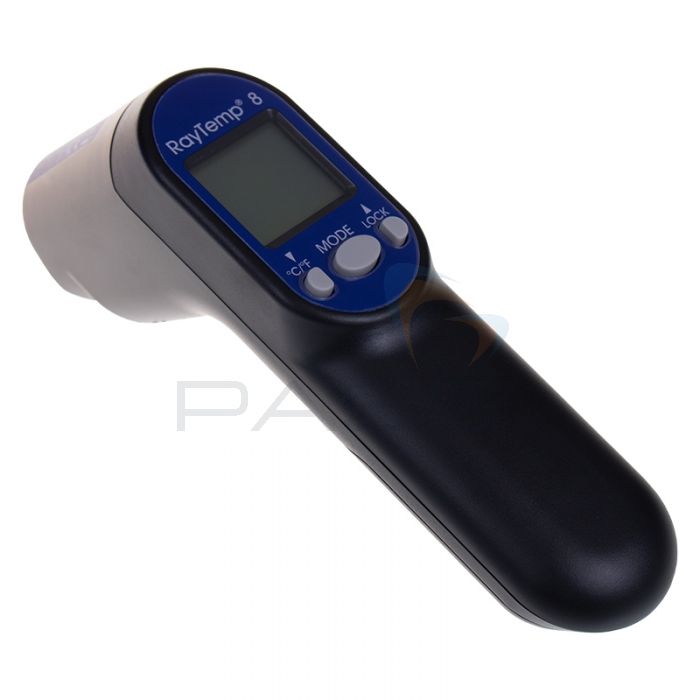

ETI 814-045 RayTemp 8 Infrared/Type K Thermometer

The ETI RayTemp is more than just a standard infrared, non-contact thermometer; this instrument also allows you to connect up a type K temperature probe (sold separately) to measure parameters such as air, liquid and surface temperatures directly.

The RayTemp 8's dual measurement capabilities give you everything you need for comprehensive temperature measurements in a wide variety of applications. Use the infrared mode to easily test food, hot surfaces and other applications where direct contact may be difficult, then use any type K temperature probe to perform more direct measurements as and when needed.

For added precision when testing using the infrared mode, the RayTemp 8 includes ETI's 8 dot circular targeting system. The area of measurement is the diameter inside the dots; the size of the measurement spot will increase/decrease depending on how far away the thermometer is (ETI recommends a distance-to-spot ratio of 12:1; hold the thermometer around 12 inches away for a measurement spot of 1 inch).

When measuring, the RayTemp 8 can measure infrared surface temperatures from -60 to 500°C; this range is increased to -64 to 1370°C when testing using a type K thermocouple probe. Need to calculate high and low temperatures over a period of time? Use the RayTemp 8's MIN/MAX function for this task!

ETI 814-045 RayTemp 8 Infrared/Type K Thermometer Key Features

• Dual function digital thermometer - infrared, non-contact surface measurements plus a type K connector for use with a wide variety of optional type K thermocouple probes (sold separately)
• Infrared temperature range from -60 to 500°C
• Type K measurement range from -64 to 1370°C
• Precision 8 dot circular laser targeting system for infrared mode
• 12:1 distance-to-spot ratio (hold around 12 inches away for a measurement spot of 1 inch)
• Resolution of 0.1°C/°F from -9.9 to 199.9°C, then 1°C above this range
• Accuracy of ±2% of reading for infrared, ±1% for probe
• Switch between Celsius and Fahrenheit measurement modes
• MIN/MAX mode calculates and displays the minimum or maximum values taken over a period of time
• Calculates the difference between MAX/MIN temperatures and also displays average temperature
• Powered by 2 x 1.5V AAA batteries with up to 180 hours of continuous use battery life

Optional Accessories

• 830-040: Protective Nylon Pouch
• 834-740: ABS Carrying Case
• Optional Probes: view our full range of ETI  temperature probes here >>

Kit Version

Get the RayTemp 8 alongside a penetration temperature probe, carrying case and probes wipes here! >>
