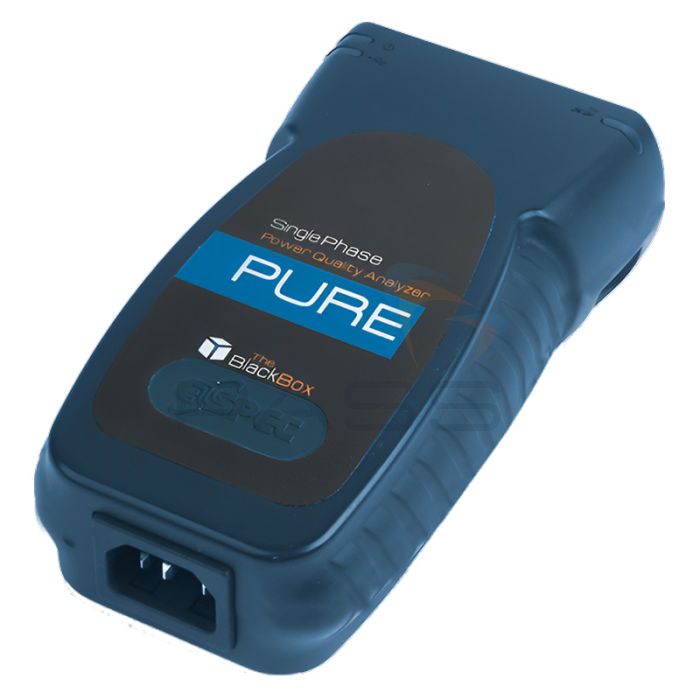

Elspec Pure Single Phase BlackBox Power Quality Analyzer
The Single Phase Pure BlackBox is a user-friendly, single-phase power quality analyzer. It effortlessly identifies and logs power issues, enabling prompt resolution and minimizing downtime. This device records all power quality parameters continuously, without the need for threshold adjustments or setup configurations.
The Elspec SPG-5112-A090 BlackBox Pure continuously records voltage waveform sampled at a rate of 256 Sample/Cycle at 50/60Hz, and the Elspec SPG-5111-A090 BlackBox Pure continuously records both voltage and current waveform sampled at a rate of 256 Sample/Cycle at 50/60Hz. This high-resolution data enables the detection and analysis of the most subtle changes in both models.
The Pure BlackBox, equipped with PQZIP Technology, is a sophisticated yet user-friendly handheld power quality analyzer. It's a plug-and-play device that records all power quality parameters continuously, eliminating the need for threshold adjustments or configuration.
The BlackBox Pure logs all key power quality parameters, including RMS, THD, power metrics, power factor, unbalance, and harmonics, continuously over a year with various resolutions. It captures 128 harmonic components at 50Hz and 512 inter-harmonic components at 5Hz.
Key Features
- Continuous Waveform recording at 256 Sample/Cycle
- Configuration FREE Device
- Fast USB connectivity to PC
- SD card slot hot swap
- Lightweight, hand-held portable PQ recorder
- Easy to use
What's Included?
- Pure Single-Phase BlackBox Power Quality Analyzer
- USB Cable type A male to type B male 1.5m black
- Elspec BlackBox Installation USB drive
- 4GB Micro SD card
- Universal Female Adapter
- Power Cable 10A/230V, straight, 1.8M, Black
Product Range
- Elspec SPG-5112-A090 Single Phase BlackBox Power Quality Analyser, Voltage Waveform
- Elspec SPG-5111-A090 Single Phase BlackBox Power Quality Analyser, Voltage & Current Waveform
FREE Powerbank / Wireless Charger
- PASS Power Bank & Magnetic Wireless Charger (10 000mAh 15W) - PASSPOWER-PLUS, typically £49.00
| General | |
|---|---|
| Voltage input | 2 channels, phase and neutral through power socket 110/240VAC Nominal-Measurement Category II |
| Current Channels | N/A |
| Sampling Rate | 256 Samples/Cycle @ 50/60Hz |
| LED Indicators | 3 Bi-colors LED |
| Accuracy | IEC 61000-4-30 Class A Edition 3 |
| Communication | |
| USB | PQZ file download, FW upgrade & clock setting |
| Power | |
| Power Supply | 100-240VAC 50/60Hz 10W 5VDC over USB |
| Ride Through | 30 sec |
| Mechanical | |
| Weight | 0.25kg |
| Dimensions | 146 x 82 x 48 |
| Synchronization | |
| Internal Synchronization | 10ppm |
| Environmental | |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5% to 95% non-condensing |
| IP Protection | IP40 (*) |
| Storage | |
| Nonvolatile Memory | SD Card supporting hot swap (**) |
|
|
