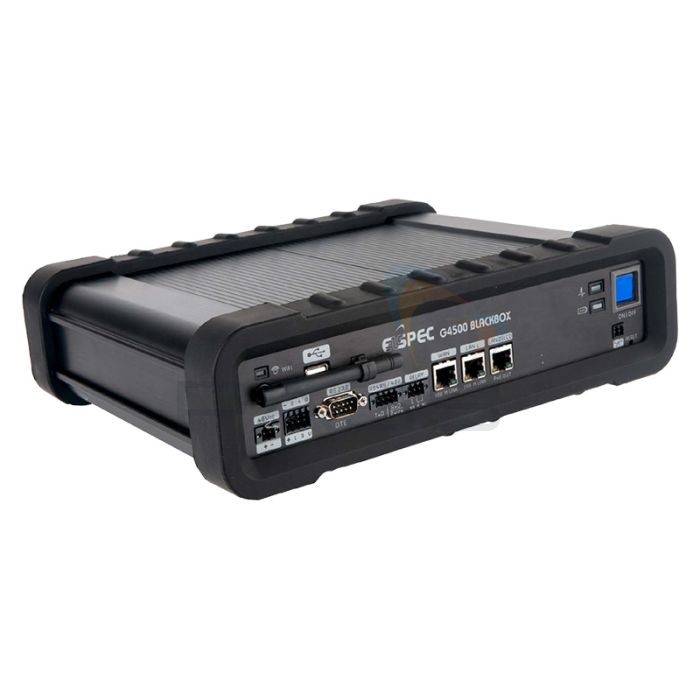

Elspec G4500 Portable BlackBox Power Quality Analyzer
The Elspec G4500 ensures that every event is meticulously documented, regardless of its magnitude. In the realm of power, relying on chance is not an option.
The innovative PQZIP compression technology is capable of storing information up to a thousandfold more than conventional file formats. PQZIP facilitates the retention of comprehensive and precise data over long durations. The device persistently logs 4V AC and 5I AC waveform signals at 1,024/256 samples per cycle, respectively, ensuring highly accurate outcomes without the prerequisite of configuring any triggers or thresholds.
Supreme Trend Resolution ensures that RMS, THD, active/reactive power, power factor, unbalance, harmonics, and all other power quality parameters are meticulously logged non-stop for an entire year at ½ cycle resolution. This process is vital for a detailed characterization of the electrical system's dynamics.
Key Features
- Battery - Battery life of up to 2 hours allowing continuous measurement and recording.
- Wi-Fi - No need for cables. Easy to use everywhere.
- Plug-and-Play - The Portable BLACKBOX is equipped with a plug-and-play probe interface allowing automatic detection of probes and clamps during setup.
- Web Interface - No need for software! Connect directly to any PC and get real-time measurements and results. A user-friendly and easy way to get precise information and data.
- Voltage inputs - The BlackBox has 4 AC and 2 DC voltage channels to measure any available power configuration.
- Current Inputs - The BLACKBOX has 4 AC channels to measure a 3-phase + Neutral and an additional 1 AC/DC channel for earth/DC signal.
- Harmonics Recording - Two FFT engines for harmonics analysis:
- Cycle by Cycle: performs FFT at 1 cycle resolution for extended bandwidth. This engine provides 512 harmonics components at 50/60Hz resolution
- 10/12 Cycles: performs FFT at 10/12 cycles resolution for an extended resolution and a sub-grouping calculation. This engine provides the amplitude and angle of 512 harmonic components at a 5Hz resolution
What's Included?
- G4500 BLACKBOX Device
- G4150 Mobile Analysis Lab
- Elspec BLACKBOX Installation & Demonstration Disc:
- INVESTIGATOR Software V4
- PQSCADA Software V4
- Generic Configuration Utility V1
- Elspec Search Utility V1
- Software Support Utilities
- G4500 Quick Reference Guide V1
- G4500 User Guide V1
- PQSCADA User Manual V4
- G4500 Brochure V1
- Tutorials V3
- INVESTIGATOR User Manual
- Carrying Trolley Case
- 5 AC Voltage Test Leads & Clips:
- Black Voltage Cord with Crocodile Clip + Fuse (3M)
- Red Voltage Cord with Crocodile Clip + Fuse (3M)
- Blue Voltage Cord with Crocodile Clip + Fuse(3M)
- Yellow Voltage Cord with Crocodile Clip + Fuse(3M)
- Green Voltage Cord with Crocodile Clip(3M)
- 2 DC Voltage Test Leads & Clips:
- Black Voltage Cord with Crocodile Clip + Fuse (3M)
- Red Voltage Cord with Crocodile Clip + Fuse (3M)
- Custom Clamp 3-Flexible Current Probes (Adjustable 30/300/3000A)
- Custom Clamp 1-Flexible Current Probe (Adjustable 30/300/3000A)
- Power Cable for Cont. 10A/125V, Straight, 1.8M, Black
- 48VDC Terminal Block Connector (RoHS Compliant)
- Temperature Sensor Terminal Block Connector PT100 Type (RoHS Compliant)
- RS485/422 Communication Terminal Block Connector (RoHS Compliant)
- Multi IO Terminal Block Connector (RoHS Compliant)
- Relay Terminal Block Connector (RoHS Compliant)
- LAN Communication Cord Length: 2M
- Relay Terminal Block Connector (RoHS Compliant)
| Waveform Sampling | |
|---|---|
| Voltage Sampling Rate | 1024 Samples/Cycle |
| Current Sampling Rate | 256 Samples/Cycle |
| Voltage Harmonics (Individual, Even, Odd, Total) Up to | 511Th |
| Current Harmonics (Individual, Even, Odd, Total) Up to | 127Th |
| Type of Analog to Digital Converter | 16/201 bit |
| Storage Capacity | |
| Internal Memory | 32 GB/32TB2 |
| Power Quality Analysis | |
| transient Detection, Microseconds (50Hz/60Hz) | 19.5/16.3µs |
| Communication Ports | |
| Ethernet Ports | 3 |
| Wi-Fi Communications (802.11g) | 1 |
| Power Over Ethernet (PoE- Out) | 1 |
| Digital Input | 4 |
| RS-232 | 1 |
| RS-485 | 1 |
| Physical | |
| Dimensions mm | 314 X 84 X 271 |
| Weight | 3.7kg |
| Control | |
| Comprehensive web server for local and remote real-time monitoring and control | |
| Applicable Standards | |
| Measurement Standards | EN50160, IEEE1159, IEEE519, IEC61000-4-15, IEC61000-4-7, IEC61000-4-30 Class A EMC Standards EN61326, CFR47FCC, CISPR11 Group 1, FCC PART 15 Subpart B, EN61010-2, IEC61000-3-3, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11 |
| Environmental Standards | IEC60068-2-1, 2, 6, 27, 30, 75 |
| Safety Standards | EN61010-1:2001 2nd Edition |
| Power Supply | |
| Operating Range | 100-260 VAC: 50/60 Hz 100-300 VDC |
| Auxiliary DC Supply | 48 VDC |
| Auxiliary Supply | PoE In According to 802.3af |
| Battery Backup | 2 Hours |
| Environmental Conditions | |
| Operation Temperature | 0°C - 50°C (32°F - 122 °F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140 °F) |
| Time Synchronization | |
| Real Time Clock | ±1 Second per 24 Hours |
| GPS | 100-200μs |
| IRIG B | 100-200μs |
| SNTP Server | 50-100μs |
| DCF-77 | ±15ms |
| Voltage Channels | |
| Voltage Channels | 4 (3 Phases + Neut.)+ 1 DC |
| Nominal Full Scale | 1000V |
| Maximum Peak Measurement | 8000V |
| Input Impedance | 3MΩ |
| Uncertainty | 0.1% of Nominal |
| Current Channels | |
| Current Channels | 4 (3 Phases + Neut.)+ 1Grn/DC |
| Current Channels Receive From Clamp | I1-I4: 0-10 VPk I5: 0-3 VPk |
| Uncertainty | 0.1% ±0.1 mV |
| Frequency Measurement | |
| Fundamental Frequency | 42.5 Hz to 69 Hz |
| Frequency Resolution | 10 mHz |
| Frequency Accuracy | ±10 mHz |
