FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger

The FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger can be used to measure and log temperatures between 0 and 200°C (32 and 392°F). It has the capacity to store up to 250 000 readings and can be set to record data at a rate ranging from once every two seconds to once every hour.

The instrument is able to measure temperatures between 0 and 200°C due to the included 1.5m, type-K thermocouple probe. However, the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger is able to accommodate other type-K, as well as type-J and type-T thermocouples with miniature thermocouple plug connectors. When used with the above thermocouple probes it has the following measurement ranges:

• Alternative type-K thermocouple probes: -200 to 1350°C (-328 to 2462°F)
• Type-J: -200 to 1190°C (-328 to 2174°F)
• Type-T: -200 to 390°C (-328 to 734°F)

The FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger is able to measure temperatures using the included type-K probe or any of the above OPTIONAL probes to a resolution of 0.1°C (0.2°F).  The logger itself has an accuracy of ±1°C/ ±2°F.

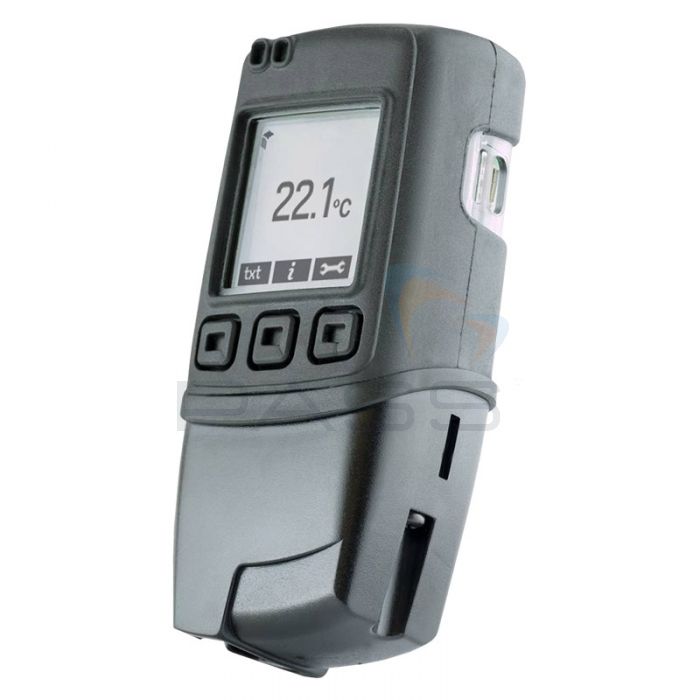

Measurements can be viewed via the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger’s high-contrast, dot-matrix, LCD display. The logger also features an easy-to-use interface which can be navigated using the three buttons on the front of the instrument. Using these buttons the operator can access real-time trend analysis and data summaries, as well as the current and minimum and maximum temperature readings. The interface can also be used to reset the minimum and maximum readings as well as add an ‘event marker’ to the data which may be viewed at a later date using a graphing software.

Further to this, the three-button interface can also be used to stop, start and reset the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger.

Data can be saved to a PC by plugging the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger into a USB port and using FilesThruTheAir’s free EasyLog Software (NOT included) to download measurements. This software can also be used to graph, print and export data as well as configure the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger. It can be used to assign the logger a name, specify a logging rate and measurement unit, as well as program high and low alarms. It is also possible to configure the logger to begin logging immediately; with a delated start; when pushed-to-start; or to when triggered by a specified temperature via this software. For a quick introduction to configuring this logger using the free EasyLog Software, please see the video below.

The FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger is a versatile, adaptable and comprehensive temperature data logger. It is also designed for longevity and to this end is supplied with two lithium metal batteries which are able to power the FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger for up to one year.

The FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger is an easy-to-use instrument, ideal for measuring and recording a variety of temperature measurements.

FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger Key Features

• Measure and log temperatures between 0 and 200°C (32 and 392°F)
• Capacity to store up to 250 000 readings
• Can be set to record data at a rate ranging from once every two seconds to once every hour
• Supplied with a 1.5m, type-K thermocouple probe giving the logger its temperature range
• Can be used with other type-K thermocouple probes, as well as type-J and type-T thermocouples with a miniature thermocouple plug connector
• Alternative type-K thermocouple probes: -200 to 1350°C (-328 to 2462°F)
• Type-J: -200 to 1190°C (-328 to 2174°F)
• Type-T: -200 to 390°C (-328 to 734°F)
• Logger resolution: 0.1°C (0.2°F)
• Logger accuracy: ±1°C/ ±2°F
• High-contrast, dot-matrix, LCD display
• Three buttons for navigating the interface
• Access real-time trend analysis, data summaries and the current as well as the minimum and maximum temperature readings via the three-button interface
• Use the three-buttons interface to reset minimum and maximum readings as well as add an event marker
• Stop, start and rest the logger via the three buttons
• Access data by plugging the logger into the USB port of a PC with FilesThruTheAir’s free EasyLog Software (NOT included) installed
• EasyLog Software can be used to download, graph, print and export measurements
• The software can be used to configure the logger
• Assign the logger a name, specify a logging rate, select a measurement unit (°C/ °F)  and program high and low alarms using the software
• The logger can be set to begin logging immediately; with a delayed start; when pushed-to-start; or when triggered by a particular temperature using this software
• Supplied with two lithium metal batteries which are able to power the logger for up to one year
• An easy-to-use instrument, ideal for measuring and recording a variety of temperature measurements

What’s Included?

• FilesThruTheAir EL-GFX-TC EasyLog Thermocouple Data Logger
• Battery
• USB Cable
• Type-K Thermocouple Probe
• Magnetic Mounting Bracket
