DiLog DL9130EVKIT 18th Edition Advanced EV Testing Kit

SKU
DL9130EVKIT
Rating:
0%
(0)
Reward Points
:
999
£1,198.80 £999.00
Free UK Delivery*
Choose a Special Offer
  • Electrician's Accessories Bundle - 30m Wander Lead, 14 Piece Toolkit, & Fibreglass Rods
    Electrician's Accessories Bundle - 30m Wander Lead, 14 Piece Toolkit, & Fibreglass Rods
    FREE
    £97.99
  • Electrician's Accessories Bundle - 30m Wander Lead, 14 Piece Toolkit, & Fibreglass Rods SKU: (9130EVPROMO)
    FREE
    £97.99
    Electrician's Accessories Bundle - 30m Wander Lead, 14 Piece Toolkit, & Fibreglass Rods
  • Evik Cable Pulling Fibreglass Rods - Standard Kit with Case
    Evik Cable Pulling Fibreglass Rods – Standard Kits
    FREE
    £46.80
  • Evik Cable Pulling Fibreglass Rods – Standard Kits SKU: (EV-STD-X)
    FREE
    £46.80

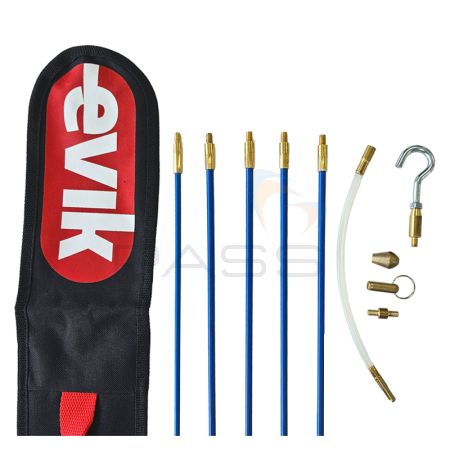

    Evik Cable Pulling Fibreglass Rods - Standard Kit with Case
    • Set of five fibreglass rods with a selection of accessories
    • Fibreglass composition offers both stiffness and flexibility
    • Available with a tube or carry case
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Free Electrician's Accessory Bundle

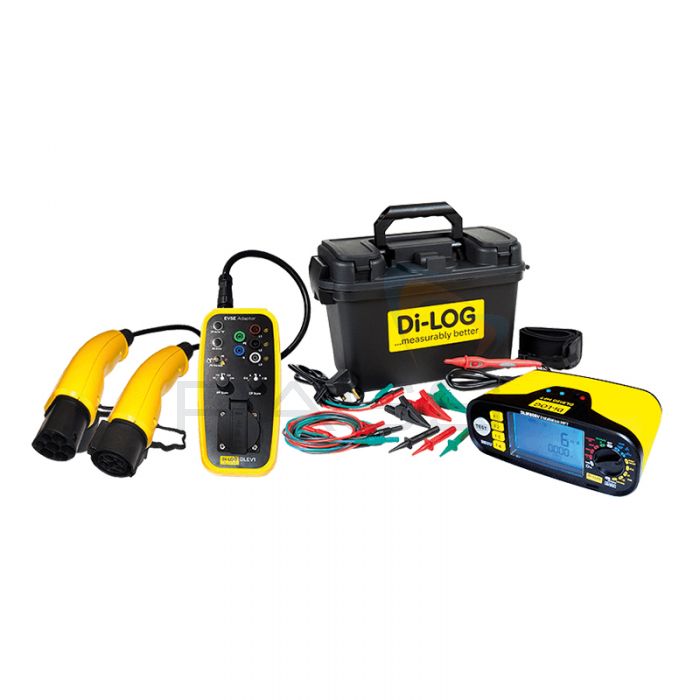

DiLog DL9130EVKIT 18th Edition Advanced EV Testing Kit - With Leads
Description

DiLog DL9130EVKIT Advanced EV Testing Kit

Comprised of DiLog’s DL9130EV Multifunction Tester and universal DLEV1 Charge Station Adapter Kit, the DiLog DL9130EVKIT 18th Edition Advanced EV Testing Kit is ideal for service engineers offering EV installation. This model is DiLog’s most capable multifunction installation tester. It offers a comprehensive selection of measurement functions including Rmax, Zmax, and tests critical to ensuring the safe verification of EVSE charge points.

Measurement capabilities:

  • 6mA pure DC test for RDC-DD verification
  • Full EV auto test sequence for verifying the DC protection provided by the EV charger and the type A RCD protection
  • Rmax: automatically captures the maximum R1+R2/R2 continuity test reading which is indicated on the secondary display
  • Zmax: records the maximum Zs test taken during the measurement period
  • Intelligent auto-detecting two- or three-wire high current loop test
  • Loop Impedance/PSCC: the unique auto-start RCD-LOC XLT loop test principle will not trip any RCD or RCBO
  • Auto start loop and continuity tests with a secondary display to capture the recorded result and a null facility to zero out lead resistance
  • Type AC, A, B & selective (S) RCD testing
  • Variable RCD test: dial-in bespoke mA values
  • Auto RCD testing: trip time, trip current, autotest, and ramp current
  • 250V, 500V, and 1000V insulation tests
  • Phase-to-phase loop with phase rotation test: indicates the correct phase sequence
  • Phase rotation test: indicates the correct phase sequence
  • Integrated socket polarity test

Measurements are indicated on the LCD with a colour-changing RGB screen for indicating PASS/FAIL results.

Finally, the DiLog DL9130EV Multifunction Tester is compliant with BS EN 61557 safety and performance requirements and is fully protected against damage when accidentally connected across phases.

For more information regarding the DiLog DL9130EV 18th Edition Advanced Multifunction Tester, please follow this link.

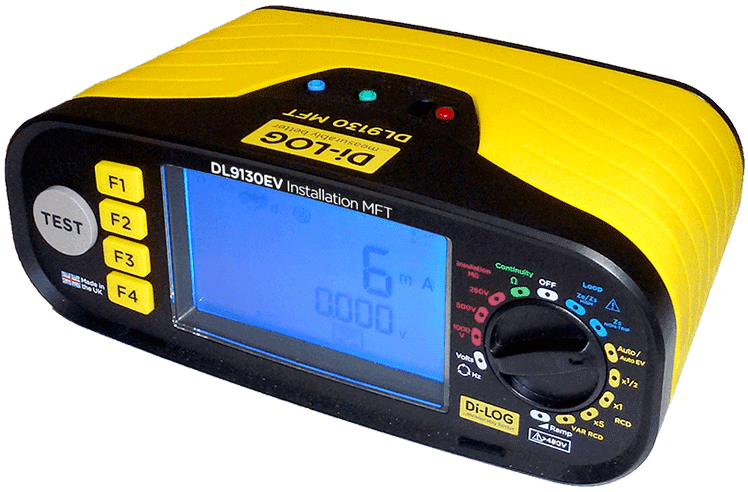

DiLog DL9130EV 18th Edition Advanced EV Multifunction Tester

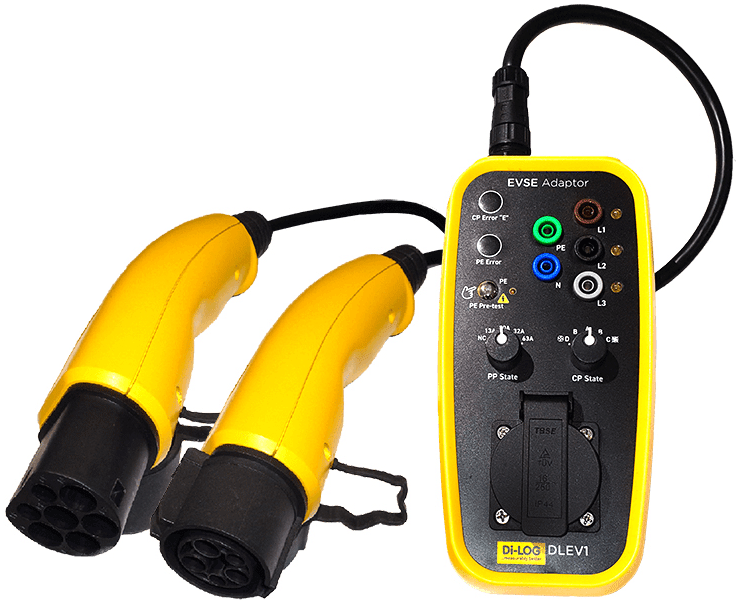

DiLog DLEV1 EVSE Charge Station Kit Overview

The DiLog DLEV1 EVSE Charge Station Kit can be used with the DiLog DL9130EV MFT to verify the safety and functionality of EVSE charge points. As it can simulate both Proximity Pilot (PP) and Control Pilot (CP) states, it is suitable for energising free-standing and wall-mounted EV chargers. The DiLog DLEV1 EVSE Charge Station Kit can also simulate PE pre-test, CP error “E”, and PE error, and offers signal output and load connection. It is equipped with a type 1 and type 2 connector plug specifically designed for testing, 4mm input terminals for single- or three-phase connections, and a 13A socket for MFT mains leads or inline load connections.

Please click this link for more information about the DiLog DLEV1 EVSE Charge Station Kit.

DiLog DLEV1 EVSE Charge Station Adapter Kit

Videos

DiLog MFT Overview

Electric Vehicle (EV) testing with the DL9130EV

Key Features

DL9130EV MFT Key Feature Corporate Slideshow

What’s Accessories Come with the DiLog DL9130EV Kit?

  • DiLog DLEV1 EVSE Charge Station Kit
  • Padded Neck Strap
  • Mains Lead
  • 2m Blue Test Lead
  • 2m Red Test Lead
  • 2m Green Test Lead
  • Blue Crocodile Clip
  • Red Crocodile Clip
  • Green Crocodile Clip
  • Remote Test Probe
  • 6x 1.5V Batteries
  • Toolbox-Style Carry Case
  • Operating Instruction Manual

DiLog Multifunction Testers -  DL9120 vs DL9130EV Comparison

 Model DL9120 DL9130EV
Continuity Test Yes
15 mA/200mA Selectable Current No Yes
R Max (Max R1+R2 recording) No Yes
Insulation Test 250V, 500V, 1000V 250V, 500V, 1000V
Loop Test (3-wire no-trip) Yes
2-Wire Loop Test Yes
Auto Start Loop & Continuity Yes
Auto Start PFC/PSC (L-PE/L-N) Yes
Z Max No Yes
PFC and PSC Fault Current(L-PE/L-N) Yes
Phase-Phase Line Test (L-L) Yes
RCD Test (AC, A, S-type) Yes
Auto RCD Test Yes
RCD Ramp Test Yes
6 mA RDC-CC (EVSE) No Yes
Auto EV RCD Test Sequence No Yes
RCD Test Type B Yes
Phase Rotation Yes
Intelligent Full Range Protection Yes
Colour RGB display Yes
Remote Test Probe Include No Yes
Downloads

Manuals & Guides

DLEV1 EVSE Adaptor Manuals & Guides

Brochures & Catalogues

DL9100 Series Catalogue Brochures & Catalogues

Technical Specifications

DiLog DL9100 Series Multifunction Tester - Specifications Technical Specifications
Offers
Free Electrician's Accessory Bundle
  • Electrician's Accessories Bundle - 30m Wander Lead, 14 Piece Toolkit, & Fibreglass Rods - 9130EVPROMO, typically £97.99
  • Evik Cable Pulling Fibreglass Rods – Standard Kits - EV-STD-X, typically £46.80
Tech Specs
DL9130EV MFT Technical Information
Voltage Display Range 0V to 480V
Measuring Range 0V to 480V
Resolution 1V
Voltage Accuracy +/- 5% +/- 2digits
Frequency Range 45Hz - 65Hz
Frequency Accuracy +/- 1Hz
Continuity Display Range (200mA) 0.01Ω to 2000Ω
Measuring Range (200mA) 0.10Ω to 2000Ω
Accuracy +/- 2% +/- 5 digits
Resolution 0.01Ω to 19.99Ω
20.0Ω to 199.9Ω
200Ω to 2000Ω
Test Voltage >4Vdc <25Vdc Open Circuit
Test Current >200mA
Display Range (15mA) 0.01Ω to 200Ω
Accuracy +/- 2% +/- 5 digits
Resolution 0.01Ω to 19.99Ω
20.0Ω to 199.9Ω
>4Vdc <25Vdc
Open Circuit
>15mA
Compliance IEC61557-1, IEC61557-4 and IEC61557-10
Insulation Display Range 0.01MΩ to 200MΩ
Measuring Range 0.05MΩ to 200MΩ
Accuracy +/-5% +/-5 digits
Resolution 0.01MΩ to 1.99MΩ
2.0MΩ to 19.9MΩ
20MΩ to 200MΩ
Alarm Warning <1MΩ Screen & Audible
Test Voltage 250/500/1000V
Test Voltage Specification -0% +20% (open circuit)
Test Current 1mA into UN (1000Ω/V)
Compliance IEC61557-1, IEC61557-2 and IEC61557-10
No Trip Loop Impedance Supply Voltage 195-253V, 45Hz - 65Hz
Display Range 0.01Ω to 2000Ω
Measuring Range 1.00 to 1999Ω (non-trip)
Accuracy +/-5% +/-12 digits (to 20Ω) +/-5% +/-5 digits (to 2000Ω)
Resolution 0.01Ω to 9.99Ω
10.0Ω to 99.9Ω
100Ω to 2000Ω
Test Current <15mA RMS
Compliance IEC61557-1, IEC61557-3 and IEC61557-10
High Current Loop Impedance Supply Voltage 195-253V, 45Hz - 65Hz
Display Range 0.01Ω to 2000Ω
Measuring Range 0.10Ω to 1999Ω (high current)
Accuracy +/-5% +/-5 digits
Resolution 0.01Ω to 9.99Ω
10.0Ω to 99.9Ω
100Ω to 2000Ω
Test Current 3A RMS
Compliance IEC61557-1, IEC61557-3 and IEC61557-10
Loop Test PFC Measurement Display Range 0.1A to 26.0kA
Accuracy +/-5% +/-5 digits
Resolution 0.1A to 999.9A
1.0kA to 26.0kA
High Current Line Impedance Display Range 0.01Ω to 2000Ω
Measuring Range 0.10Ω to 2000Ω
Accuracy +/-5% +/-5 digits
Resolution 0.01Ω to 9.99Ω
10.0Ω to 99.9Ω
100Ω to 2000Ω
Supply Voltages 195V - 253V
328V - 480V
Test Current 3A RMS Peak
Compliance IEC61557-1, IEC61557-3 and IEC61557-10
Line Test PSC Measurement Range 0.1A to 26.0kA
Accuracy +/-5% +/-5 digits
Resolution 0.1A to 999.9A
1.0kA to 26.0kA
RCD Trip Time Test Supply Voltages 195-253V, 45Hz - 65Hz
Nominal Test Current 10mA/30mA/100mA ( ½ , 1, 5 I∆n)
300mA/500mA ( ½, 1 I∆n)
Variable Mode
Variable RCD Test 1mA - 500mA
Test Current Accuracy -0% +10% at I∆n and 5I∆n
-0% +10% at ½ I∆n
Trip Time Ranges 0 to 2000ms ½ I∆n
0ms - 300ms I∆n general
0ms - 500ms I∆n selective
0 to 40ms 5 I∆n
Trip Time Accuracy +/- 5% +/- 2 digits
Nominal Test Current 10mA/30mA/100mA ( ½, 1, 5 I∆n)
300mA/500mA ( ½, 1 I∆n)
Compliance IEC61557-1, IEC61557-6 and IEC61557-10
RDC-DD Trip Time Test Supply Voltages 195-253V, 45Hz - 65Hz
Nominal Test Current 6mA
Test Current Accuracy -0% +10%
Trip Time Ranges 0 to 10000 I∆n
Trip Time Accuracy +/- 5% +/- 2 digits
Ramp Test Current Range 2mA - 6mA
Compliance IEC61557-1, IEC61557-6 and IEC61557-10
RCD (Ramp) Trip Current Test Range 0.5 I∆n to 1.1 I∆n
Range (6mA DC) 0.1mA to 6mA (over 30 seconds)
Accuracy +/-5% of the expected current
Step Size 0.1*∆n
Step Duration 300ms
Compliance IEC61557-1, IEC61557-6 and IEC61557-10
