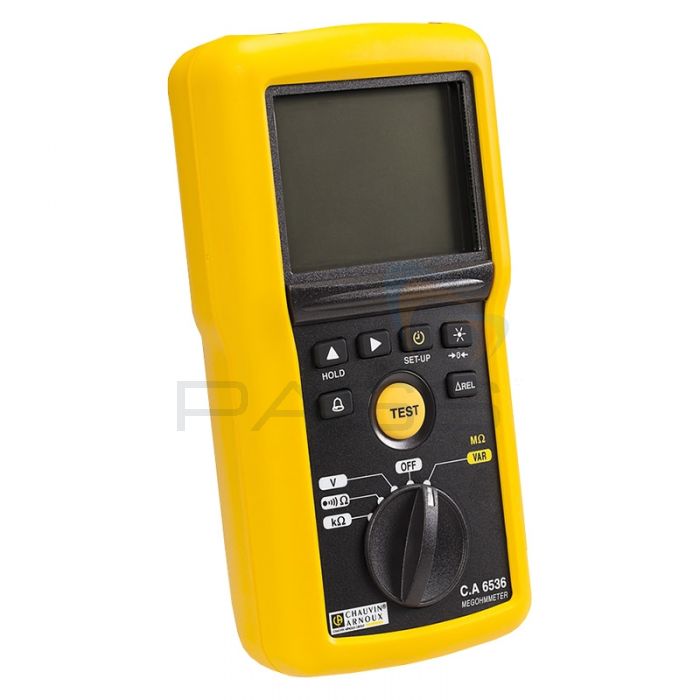

Chauvin Arnoux CA6536 Specialist Megohmmeter
- Functions as both an insulation and continuity tester and digital multimeter
- Optimised for specialist sectors such as avionics, space and defence
- Variable test voltage ranging from 1 to 100V with 1V increments
SKU
P01140836
MPN
P01140836
The Chauvin Arnoux CA6536 Specialist Megohmmeter is designed to function as both an insulation and continuity tester and digital multimeter. It is able to perform the following tests:
- Insulation: test voltage of 10 to 100V with a maximum measurement range of 20GΩ
- Continuity: 0 to 100Ω (20mA/ 200mA measurement current)
- Resistance: 0 to 1000kΩ
- Voltage: 0.3V to 700V DC
This instrument has been optimised for conducting specialist tests in avionics, space and defence sectors, as such it includes a variable test voltage ranging from 1 to 100V with 1V increments.
In addition to these measurement capabilities, the Chauvin Arnoux CA6536 Specialist Megohmmeter includes the following modes and functions, allowing the user to tailor the instrument to the application:
- Manual mode
- Lock mode - fixes the tester into performing an insulation measurement until 15 minutes have elapsed or the user presses the mode button for the second time. This mode facilitates hands-free operation.
- Timer mode – also allows the user to perform hands-free tests. The user can set the megohmmeter to conduct tests over a pre-programmed duration. The Chauvin Arnoux CA6536 Specialist Megohmmeter can be programmed to perform tests over durations of 1 to 39:59 minutes.
- Alarm function – set an upper and/or lower limit. These limits are indicated on the secondary display and if either one is breached the tester will issue an audible signal and will indicate the breach on its secondary display.
- Reference function – like the alarm function, when this option is engaged readings that differ from the selected reference value will be indicated on the secondary display. These values are displayed with the percentage of variance and the calculated difference between the reference value and the reading.
As indicated above, the Chauvin Arnoux CA6536 Specialist Megohmmeter features a backlit, dual, digital display. This display includes a logarithmic bar graph. The actual test voltage, the test current and the measurement value are all indicated on the secondary display.
Adding to this product’s practicality is its 600V CAT IV, IP54/ IK04 casing which ensures that it is suitable for use in rugged environments. Furthermore, its lightweight, compact design and operating system ensure that it is easy-to-use, even when wearing safety gloves.
Finally, in addition to the above safety and ingress protection standards, the Chauvin Arnoux CA6536 Specialist Megohmmeter is also compliant with the IEC 61557 standard for continuity tests (200mA) and insulation tests (up to 2GΩ). In addition to this, the continuity test is equipped with an active fuseless protection for when a voltage is present.
The Chauvin Arnoux CA6536 Specialist Megohmmeter is a sophisticated, versatile instrument, ideal for conducting electrical measurements within specialised industries such as avionics, space and defence.
Chauvin Arnoux CA6536 Specialist Megohmmeter Key Features
- Functions as both an insulation and continuity tester and digital multimeter
- Insulation: test voltage of 10 to 100V with a maximum measurement range of 20GΩ
- Continuity: 0 to 100Ω (20mA/ 200mA measurement current)
- Resistance: 0 to 1000kΩ
- Voltage: 0.3V to 700V DC
- Optimised for conducting tests in avionics, space and defence sectors
- Variable test voltage ranging from 1V to 100V in 1V increments
- Manual mode
- Lock mode
- Timer mode
- Alarm function
- Reference function
- Backlit, dual, digital display
- Logarithmic bar graph
- Actual test voltage, test current and measurement value are indicated on the secondary display
- 600V CAT IV, IP54/ IK04 casing
- Lightweight and compact
- Easy-to-operate, even whilst wearing safety gloves
- Continuity test (200mA) is compliant with the IEC 61557 standard
- Insulation Test (up to 2GΩ) is compliant with the IEC 61557 standard
- The continuity test is equipped with an active fuseless protection for if a voltage is present
- Sophisticated, versatile instrument ideal for conducting electrical measurements in specialised industries
What’s Included?
- Chauvin Arnoux CA6536 Specialist Megohmmeter
- Carry Bag
- 2x 1.5m Elbowed-straight Safety Leads (red and black)
- 1x Red Crocodile Clip
- 1x Black Test Probe
- 6x LR6/ AA Batteries
- Multilingual User Manual on CD
- Quick Start-up Guide
- Multilingual Safety Data Sheet
- 2x Wire-grips (red and black)
£589.00
£706.80 inc vat
Stock Due:
Typically 1-6 Days
Technical Information
Specification
Chauvin Arnoux CA6536 Specialist Megohmmeter Technical Specifications and Comparison Table
The Chauvin Arnoux CA6536 Specialist Megohmmeter is part of Chauvin Arnoux's CA65XX Series of Megohmmeters; please find below two tables detailing the comparisons between these models and their technical specifications.
Comparison Table
| Function | C.A 6522 | C.A 6524 | C.A 6526 | C.A 6532 | C.A 6534 | C.A 6536 |
| Applications | Industrial maintenance | Telecom | Electronics / ESD | Special | ||
| Test voltage | 250-500-1,000 V | 50-100-250-500-1,000 V | 50-100 V | 10-25-100-250-500 V | 10 to 100 V 1 V increments | |
| Range | 40 GΩ | 200 GΩ | 200 GΩ | 20 GΩ | 50 GΩ | 20 GΩ |
| I leakage | - | X | X | X | X | X |
| Manual / Lock / Duration modes | X | X | X | X | X | X |
| PI / DAR ratios | - | X | X | X | - | - |
| Alarms | - | X | X | X | X | X |
| ∆REL | - | X | X | X | X | X |
| Continuity | X | X | X | X | X | X |
| Voltage | X | X | X | X | X | X |
| Frequency | - | X | X | X | - | - |
| R | - | X | X | X | X | X |
| Capacitance | - | - | X | X | - | - |
| Distance = f(C | - | - | - | X | - | - |
| Magnetic mounting | - | X | X | X | X | X |
| Storage | - | X | X | X | X | - |
| Communication | - | - | X | X | X | - |
| Categories | CAT IV 600 V | |||||
| Display | Double + bargraph | |||||
Technical Specifications
| Technical Specification | C.A 6522 | C.A 6524 | C.A 6526 | C.A 6532 | C.A 6534 | C.A 6536 |
| Voltage | ||||||
| Measurement range / Resolution | 0.3 V-399.9 V / 0,1 V; 400 V-700 V / 1 V | |||||
| Accuracy / Input impedance | ± (3 % + 2 cts) / 400 kΩ | |||||
| Operating frequency | DC; 15.3-800 Hz | |||||
| Frequency | ||||||
| Measurement range / Resolution / Accuracy | - | 15.3 Hz-399.9 Hz / 0.1 Hz / ± (1 % + 2 cts); 400-800 Hz / 1 Hz / ± (1 % + 1 ct) | - | - | ||
| Insulation | ||||||
| Test voltage | 250-500 -1,000 V | 50 - 100 - 250 - 500 - 1,000 V | 50 - 100 V | 10- 25 - 100 - 250 - 500 V | 10 V to 100 V in 1 V steps | |
| Range at maximum test voltage | 40 GΩ | 200 GΩ | 20 GΩ | 50 GΩ | 20 GΩ | |
| Compliance with IEC 61557-2 standard | 2 GΩ | 2 GΩ | 2 GΩ | |||
| Measurement range: 10 V | - | - | - | - | 2 kΩ - 1 GΩ | 2 kΩ - 2 GΩ |
| 25V | - | - | - | - | 5 kΩ-2 GΩ | (UN/5) kΩ - |
| 50V | - | 10 kΩ-10 GΩ | 10 kΩ-10 GΩ | - | (UN/5) GΩ | |
| 100 V | - | 20 kΩ-20 GΩ | 20 kΩ-20 GΩ | 20 kΩ-10 GΩ | 20 kΩ-20 GΩ | |
| 250V | 50 kΩ-10 GΩ | 50 kΩ-50 GΩ | - | 50 kΩ-25 GΩ | - | |
| 500V | 100 kΩ-20 GΩ | 100 kΩ-100 GΩ | - | 100 kΩ-50 GΩ | - | |
| 1000V | 200 kΩ-40 GΩ | 200 kΩ-200 GΩ | - | - | - | |
| Variable test voltage | - | - | - | - | - | 10 V to 100 V |
| Measurement range / Resolution |
10(1)-999 kΩ and 1.000-3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0-399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ |
|||||
| Accuracy | ± (3 % + 2 cts)(2) | ± (3 % + 2 cts)(3) | ||||
| Test voltage (I < 1 mA | -0 % + 20 % | ± 0.5 V | ||||
| Display of test voltage | ± (3 % + 3 cts) | ± (3 % + 3 cts) | ||||
| Display of test current / resolution | - | 0.01 µA - 39.99 µA / 10 nA; 40.0 -399.9 µA / 100 nA; 0.400 -2.000 mA/ 1 µA | ||||
| Accuracy of test current | - | ± (10 % + 3 cts) | ||||
| PI/DAR ratios | - | 10 min / 1 min - 1 min / 30 s | - | - | ||
| Timer (min:s) | 0:00 - 39:59 | |||||
| Discharge time (at 25V) | - | < 2 s/µF | ||||
| Alarms | - | 2 fixed thresholds + 1 programmable threshold | ||||
| Continuity | ||||||
| Range for continuity measurement | 0.00 Ω-10.00 Ω (200 mA) | 0.00 Ω-10.00 Ω (200 mA); 0.0 -100.0 Ω (20 mA) | ||||
| Accuracy / Open-circuit voltage | ± (2 % + 2 cts) / ≥ 6 V | |||||
| Measurement current | 200 mA range: 200 mA (-0 mA +20 mA); 20 mA range: 20 mA ± 5 mA | |||||
| Continuity thresholds (quick beep) | 2 Ω fixed | 2 Ω, 1 Ω, programmable threshold | ||||
| Compensation of cables | up to 9.99 Ω | |||||
| Resistance | ||||||
| Measurement range / Resolution / Accuracy | - |
0 -3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts) 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ-1,000 kΩ / 1 kΩ / ± (3 % + 2 cts) |
||||
| Capacitance | ||||||
| Measurement range / Resolution | - | - |
0.1 nF -399.9 nF / 0.1 nF 400 nF -3,999 nF / 1 nF 4.00 µF -10.0 µF / 10 nF |
- | - | |
| Accuracy | - | - | ± (3 % + 2 cts) | - | - | |
| Line length | - | - | - | 0 -100 km | - | - |
| Gerneral Specifications | ||||||
| Display | 2 x 4,000 cts + logarithmic bargraph | |||||
| Storage | - | 300 measurements | 1,300 measurements | - | ||
| Communication | - | - | Bluetooth® Class II | - | ||
| Power supply / Automatic shutdown | 6 x LR6(AA) batteries / 5 min, deactivatable | |||||
| Battery life | 1,500/2,500/6,000 measurements (4): UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF) | |||||
| Dimensions (h x w x d) / Weight / IP rating | 211 x 108 x 60 mm / 850 g / IP 54 / IK 04 | |||||
| EMC / Electrical safety | IEC 61326-1 / IEC 61010-1 and IEC 61010-2-030, 600 V CAT IV | |||||
| Compliance with standards | IEC 61557 parts 1, 2, 4 and 10 |
|||||
