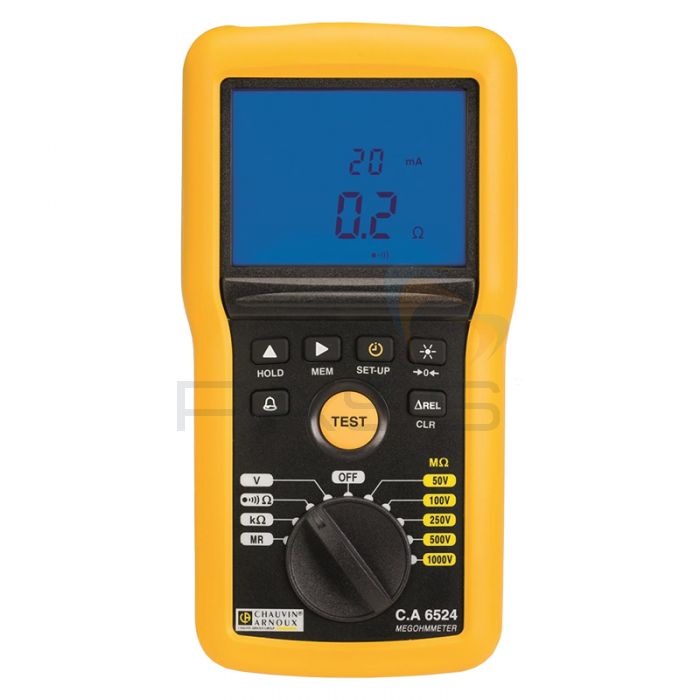

Chauvin Arnoux CA6524 Insulation & Continuity Tester
Test even more with the CA6524, the upgraded version of Chauvin Arnoux's CA6522 insulation tester.
With expanded measurement functions, wider range and built-in memory storage, the CA6524 will help you to perform comprehensive, detailed logs when working with industrial maintenance and general electrical equipment.
New Chauvin Arnoux Insulation Testers (EN)
Thanks to built-in memory storage, you can use the CA6524 to log all of your measurement results. This is not a downloadable tester - results must be read directly on the instrument.
What's New For this Model?
The CA6524 includes several new features compared to the CA6522. These are:
- Expanded Insulation Measurement Range - the overall measurement capabilities on this insulation tester are expanded from 40GΩ to 200GΩ
- Leakage current function
- PI/DAR Ratio Function
- Built-in adjustable alarms
- ∆REL mode
- Frequency measurements
- Resistance measurements
- Memory storage - up to 300 results
It also has several additional features, including:
- Selectable test voltages of 50, 100, 250, 500 and 1000V
- High quality, dual output display with integrated backlight
- CAT IV 600V safety rated
What's Included?
- Chauvin Arnoux CA6524 Insulation Tester
- Carrying Bag
- 2 x Elbowed Straight Safety Leads (Red and Black), 1.5m Length
- Red Croc Clip
- Backl Test Probe
- 6 x AA Batteries
- Multilingual User Manual on CD
- Multilingual Safety Datasheet
Optional Accessories/Replacement Parts
If you would like to order any of these additional accessories or replacement parts, please call our sales team quoting the part number shown.
| Optional Accessories | |
|---|---|
| Part Number | Description |
| P01102092A | Remote Control Probe |
| P01102084A | Continuity Rod |
| P01650101Z | Thermometer + Type K Thermocouple |
| P01156301Z | Thermo Hygrometer |
| P01102112 | USB-Bluetooth Adapter (not compatible with CA6522) |
| P01102095 | DataView Software (not compatible with CA6522) |
| Replacement Parts | |
| Part Number | Description |
| P01295453Z | 2 x Elbowed Straight Safety Leads (Red and Black), 1.5m Length |
| P01295457Z | 2 x Croc Clips (Red and Black) |
| P01295454Z | 2 x Test Probes (Red and Black) |
| P01102053Z | 2 x Wire Grips (Red and Black) |
| P01298049 | Carrying Bag for Hands-Free Use |
Chauvin Arnoux CA6500 Series Tech Specs/Comparison Chart
| Model Number | CA6522 | CA6524 | CA6526 | CA6532 | CA6534 | CA6536 |
|---|---|---|---|---|---|---|
| Voltage | ||||||
| Measurement Range (Resolution) | 0.3V to 399.9V (0.1V) 400V to 700V (1V) |
|||||
| Accuracy (Input Impedance) | ±(3% + 2 cts) (400kΩ) | |||||
| Operating Frequency | DC: 15.3 to 800Hz | |||||
| Frequency | ||||||
| Measurement Range | N/A | 15.3Hz to 399.9Hz: 0.1Hz Resolution, ±(1% + 2cts) accuracy 400 to 800Hz: 1Hz resolution, ±(1% + 1 ct) accuracy |
N/A | N/A | ||
| Insulation | ||||||
| Test Voltage | 250, 500 and 1000V | 50, 100, 250, 500 and 1000V | 50 and 100V | 10, 25, 100, 250 and 500V | 10V to 100V in 1V steps | |
| Range at Maximum Test Voltage | 40GΩ | 200GΩ | 20GΩ | 50GΩ | 20GΩ | |
| Compliance with IEC 61557-2 Standard | 2GΩ | |||||
| Measurement Range: 10V | N/A | N/A | N/A | N/A | 2kΩ to 1GΩ | 2kΩ to 2GΩ |
| Measurement Range: 25V | N/A | N/A | N/A | N/A | 5kΩ to 2GΩ | 2kΩ to 2GΩ |
| Measurement Range: 100V | N/A | 10kΩ to 10GΩ | 10kΩ to 10GΩ | 10kΩ to 10GΩ | N/A | (UN/5) kΩ - (UN/5) GΩ |
| Measurement Range: 250V | 50kΩ to 10GΩ | 50kΩ to 50GΩ | 50kΩ to 50GΩ | N/A | 50kΩ to 25GΩ | N/A |
| Measurement Range: 500V | 100kΩ to 20GΩ | 100kΩ to 100GΩ | 100kΩ to 100GΩ | N/A | 100kΩ to 50GΩ | N/A |
| Measurement Range: 1000V | 200kΩ to 40GΩ | 200kΩ to 200GΩ | 200kΩ to 200GΩ | N/A | N/A | N/A |
| Variable Test Voltage | N/A | N/A | N/A | N/A | N/A | 10V to 100V |
| Measurement Range/Resolution | 10(1) - 999 kΩ and 1.000 - 3.999 MΩ / 1 kΩ; 4.00 - 39.99 MΩ / 10 kΩ; 40.0 - 399.9 MΩ / 100 kΩ; 400 - 3,999 MΩ / 1 MΩ; 4.00 - 39.99 GΩ / 10 MΩ; 40.0 - 200 GΩ / 100 MΩ |
|||||
| Accuracy | ± (3 % + 2 cts)(2) | ± (3 % + 2 cts)(3) | ||||
| Test Voltage (I < 1mA) | - 0 % + 20 % | ±0.5V | ||||
| Display of Test Voltage | ±(3% + 3 cts) | ±(3% + 3cts) | ||||
| Display of Test Current/Resolution | N/A | 0.01 μA - 39.99 μA / 10 nA; 40.0 - 399.9 μA / 100 nA; 0.400 - 2.000 mA/ 1 μA | ||||
| Accuracy of Test Current | N/A | ±(10% + 3 cts) | ||||
| PI/DAR Ratios | N/A | 10 min/ 1 min to 1 min / 30s | N/A | N/A | ||
| Timer (min:s) | 0:00 to 39:59 | |||||
| Discharge Time (at 25V) | <2s/μF | |||||
| Alarms | N/A | 2 fixed thresholds + 1 programmable threshold | ||||
| Continuity | ||||||
| Range for Continuity Measurement | 0.00Ω to 10.00Ω (200mA) | 0.00 to 10.00Ω (200mA) 0.0 to 100.0Ω (20mA) |
||||
| Accuracy/Open Circuit Voltage | ±(2%+2cts) / ≥6V | |||||
| Measurement Current | 200mA range: 200mA (-0ma +20mA) 20mA range: 20mA ±5mA |
|||||
| Continuity Thresholds (Quick Beep) | 2Ω fixed | 2Ω, 1Ω, programmable | ||||
| Compensation of Cables | Up to 9.99Ω | |||||
| Resistance | ||||||
| Measurement Range/ Resolution / Accuracy | 0 - 3,999 Ω / 1 Ω; 4.00 kΩ - 39.99 kΩ / 10 Ω / ± (3 % + 2 cts) 40.0 kΩ - 399.9 kΩ / 100 Ω; 400 kΩ - 1,000 kΩ / 1 kΩ / ± (3 % + 2 cts) |
|||||
| Capacitance | ||||||
| Measurement Range / Resolution | N/A | N/A | 0.1 nF - 399.9 nF / 0.1 nF 400 nF - 3,999 nF / 1 nF 4.00 μF - 10.0 μF / 10 nF |
N/A | N/A | |
| Accuracy | N/A | N/A | ±(3% + 2cts) | N/A | N/A | |
| Line Length | N/A | N/A | N/A | 0 to 100km | N/A | N/A |
| General Specifications | ||||||
| Display | 2 x 4000 cts + logarithmic bargraph | |||||
| Storage | N/A | 300 measurements | 1300 measurements | N/A | ||
| Communication | N/A | N/A | Bluetooth Class II | N/A | ||
| Power Supply/ Automatic Shutdown | 6 x LR6(AA) batteries / 5 min, deactivatable | |||||
| Battery Life | 1,500/2,500/6,000 measurements (4): UN x 1 kΩ @ UN (5 s ON / 55 s OFF); 3,000 continuity measurements (5 s ON / 55 s OFF) | |||||
| Dimensions (H x W x D) | 211 x 108 x 60mm | |||||
| Weight | 850g | |||||
| IP Rating | IP54 | |||||
| EMC/Electrical Safety | IEC 61326 - 1 / IEC 61010 - 1 and IEC 61010 - 2 - 030, 600 V CAT IV | |||||
| Compliance with Standards | IEC 61557 parts 1, 2, 4 and 10 | |||||
(1): 2 kΩ for C.A 6532 - C.A 6534 - C.A 6536 – (2): to be added: 10 V: 1 % per 0.1 GΩ ; 25 V: 0.4 % par 0.1 GΩ , 50 V: 2 % per GΩ, 100 V: 1 % per GΩ ; 250 V: 0.4 % per GΩ; 500 V: 0.2 % per GΩ; 1,000 V: 0.1 % per GΩ
(3): 10 % /UN is added per 100 MΩ – (4): depending on model.
