Chauvin Arnoux CA6505 Digital Megohmmeter

The Chauvin Arnoux CA6505 is a comprehensive insulation resistance measurement tool that can be used to measure resistance levels from 10kΩ up to 10TΩ. It is ideally suited for insulation measurements on cables, motors, generators, transformers and more.

In addition this device can also be used to measure voltage levels from 1 to 5100V, capacitance from 0.001 to 49.99F and leakage current from 0.000nA to 3000A. It also includes the ability to calculate polarisation index (PI) and dielectric absorption ratio (DAR).

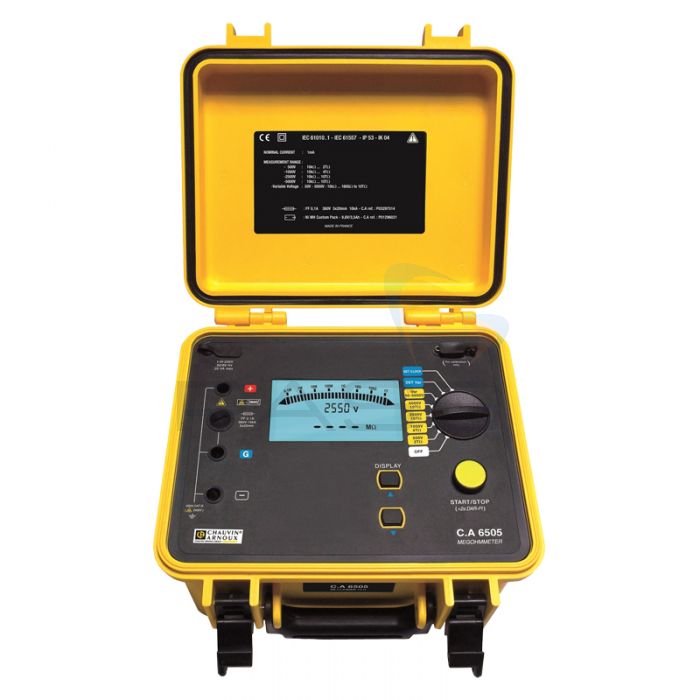

The CA6505 is built into its own protective carrying case, making porting between tests quick and easy. The case also protects the tester from damage at all times, ensuring that it can be used in dangerous environments such as industrial areas. Inside the case the CA6505 features a large-size LCD screen which clearly relays testing values.

Chauvin Arnoux CA6505 Megohmmeter Key Features

• Insulation resistance measurements up to 10TΩ
• Voltage measurements up to 5100V (5.1kV)
• Capacitance measurements up to 49.99F
• Leakage current measurements up to 3000A
• Giant LCD display with backlight
• Programmable test duration
• DAR - PI ratio calculation
• Locking of test voltage
• Rechargeable batteries
• 30 day battery life

Full List of Products Included

• Chauvin Arnoux CA6505 Megohmmeter
• Carrying Bag
• 2 x 2m Measurement Leads (with HV Plug at Each End)
• 1 x Guarded Safety Lead (2m with HV Plug, Black Colouring)
• 3 x Crocodile Clips (Red, Blue and Black)
• Mains Power Cable (1.80m Long)
• Operating Manual in 5 Languages
