Measure and log light levels over a period of time with Chauvin Arnoux's datalogging light meter, the CA1110.

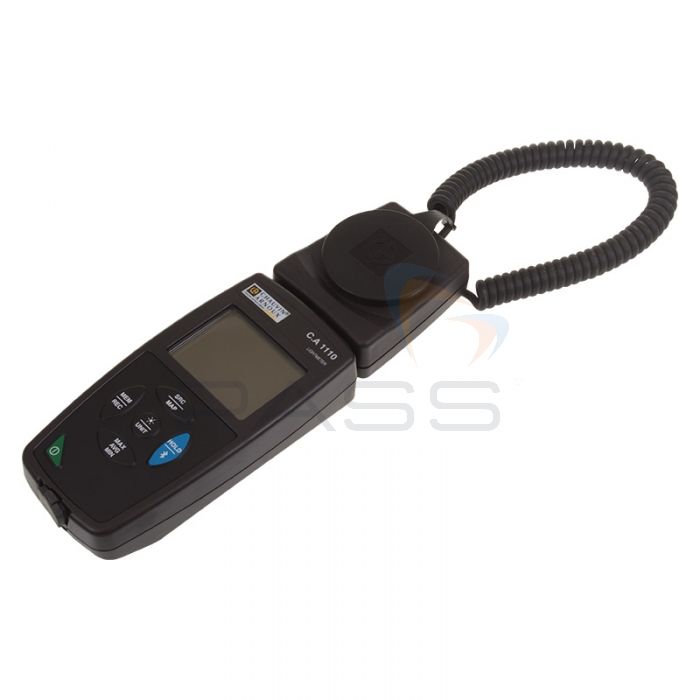

Suitable for use with a wide variety of light sources - including LED lighting - the CA1110 light meter has a remote light sensor which is connected to the instrument by a flexible cable. This flexible sensor makes the CA1110 ideal for measuring in even tricky environments, giving the user the ability to mount the sensor somewhere, or hold the sensor in one hand while taking readings with the instrument in the other.
With the Chauvin Arnoux CA1110's datalogging capabilities, you can set the instrument to log light levels at a rate set by you. The recording interval can be adjusted from every minute up to 2 hours using the included software and it is also possible to set a start and end date for recording for prolonged studies. More than 1 million data records can be stored directly on the tester's memory, then downloaded to a PC for further analysis using Chauvin Arnoux's Datalogger software package (available as a download from Chauvin Arnoux's website).
This light meter also has a special mode known as MAP - using this, you can map out the lighting on a surface or in a room. All measurements are saved together in the same file for ease of use.
Additional features of this light meter include long 500 hour battery life, Bluetooth/USB communication, lux/footcandle measurement modes and a built-in backlight for use in poor lighting conditions.
Chauvin Arnoux CA1110 Datalogging Light Meter Key Features
- Quick, effective method of measuring light levels from different light sources, including LEDs
- Measure light levels from 0.1 to 200,000 lux (0.01 to 18,580 footcandles)
- Datalogging capabilities - log the level of light over a period of time
- Configurable logging - set a start time, the rate at which data is logged (from 1 minute to 2 hours) and the end date
- Space for over 1 million data records with USB/Bluetooth download to PC
- Light sensor attached by flexible cable for ease of use
- Minimum/maximum function calculates the minimum and maximum values taken over a period of time
- Average function determines measurement averages over a period of time
- Switch between lux and footcandle measurement modes
- Built-in backlight
- Configurable automatic shutoff
- MAP function - easily calculate light levels in a room or across a surface, with all results saved in the same file
- Up to 3 year battery life in recording mode (assumes 15 minute measurement interval)
- Built-in magnet for completely hands-free use
- Export data into PC software as a graph or table or values
- 2 year warranty from Chauvin Arnoux
What's Included?
- Chauvin Arnoux CA1110 Datalogging Light Meter
- Carrying Bag
- 3 x 1.5V AA Alkaline Batteries
- USB Cable
- Test Report
- Quick Startup Guide
Please note that the software required for download is available on Chauvin Arnoux's website.
Chauvin Arnoux CA1110 Technical Specifications
Lux Measurement | |
---|---|
Measurement Range | 0.1 to 200,000 lux |
Resolution | 0.1 lx (0.1 lx to 999.9 lx) 1 lx (1 000 lx to 9,999 lx) 10 lx (10,000 lx to 99.99 klx) 100 lx beyond |
Accuracy | ± 3% of reading on incandescent sources (by default) ± 6% of reading on LEDs (3,000 K to 6,000 K) ± 9% of reading on fluorescent sources |
Footcandle Measurements | |
Measurement Range | 0.01 to 18.580fc |
Resolution | 0.01 fc (0.01 fc to 99.99 fc) 0.1 fc (100.0 fc to 999.9 fc) 1 fc (1,000 to 9.999 fc) 10 fc beyond |
Accuracy | LED mode: ± 4% of reading (at 4,000 K) Fluo mode: ± 4% of reading (type F11, 4,000 K) |
Functions | |
Recording | Manual start/stop on the product Short press for MEM: spot recording / Long press for REC: recording at the rate of the current mode Programmed recording Start date, recording interval (from 1 minute to 2 hours) and end date are defined using the PC software |
Data Storage | More than 1 million points |
MIN/MAX/AVG/HOLD | Yes |
MAP Function | The MAP function can be used to map the lighting on a surface or in a room. In this way, the lighting measurements are saved in the same file |
Units | Lux or footcandles |
Backlight | Yes |
Automatic Power Off | Yes (configurable) |
Power Supply | |
Type | 3 x 1.5 V AA / LR6 alkaline batteries Connection to the mains possible with the mains / micro-USB adapter offered as an accessory |
Battery Life | 500 hrs (portable mode) / 3 years of recording (15-minute measurement interval) |
Physical Specifications | |
Interfaces | 2 possible communication modes: Bluetooth wireless link and USB |
Mounting | Casing equipped with a magnet, a wall-mount system and a slot for suspending the product Compatible with the Multifix accessory |
Dimensions | 150 x 72 x 32mm (casing) 67 x 64 x 35mm (sensor) |
Weight | 345g with batteries |
Ingress Protection | IP50 |
Product Operating Range | Temperature: -10 to +60 ° C / Humidity: 0 to 90 %RH |
Compliance | IEC61010-1 / IEC 61326-1 / Class C luxmeter as per the French NF C 42-710 standard based on the CIE guidelines |
Data Logger Software Functions | Display as a graph or a table of values / Data export in graph or Excel table form Real-time mode / Automatic report generation in Word format / Data format compatible with the Dataview software offered as an accessory |
Warranty | 2 years |
Reviews
SKU | P01654110 |
---|---|
Manufacturer Part Code | P01654110 |
Country of Origin | France |
