Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester

SKU
P01145851
Rating:
0%
(0)
Call For Pricing

This is a bulky item and requires a shipping quote

or Call 01642 931 329 to discuss product options

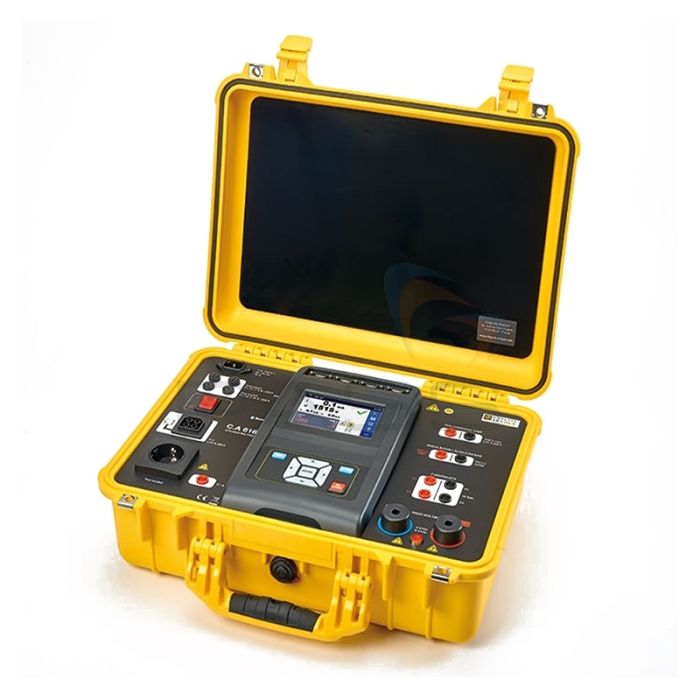

Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester

Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester

The Chauvin Arnoux CA 6165 is a multifunctional electrical equipment tester that functions as both an electrical appliance tester and an electrical installation tester. It can be used to test the electrical safety of portable electric equipment, machines, and switchboards. As such the Chauvin Arnoux CA 6165 supports all the tests and measurements required for conformity checking, including continuity, true-RMS leakage and load currents, voltage, frequency, differential leakage current, touch leakage current, earth leakage current, AC/DC dielectric tests, discharge time, insulation resistance, and power. The CA 6165 also offers automatic test sequences. Results are indicated on the CA615's capacitive touchscreen and may be stored on its 32GB memory card.

CA 6165 Tests & Measurements

The CA 6165 is an electrical appliance tester capable of both manual and automatic electrical safety checks. This electrical installation tester offers the following tests and measurements:

  • 5 kVAC/ 6 kVDC HV dielectric
  • 200mA, 4A, 10A, and 25A continuity
  • 50V, 100V, 250V, 500V, and 1000V insulation resistance
  • Substitute direct leakage current
  • Differential leakage current
  • Touch leakage current
  • Earth leakage current
  • True-RMS leakage current
  • True-RMS load current
  • External and internal discharge time up to 10s/ 550V peak
  • Power factor and total harmonic distortion (P, Q, S, Pf, Cos ɸ, THDU, THDI, U, and I)
  • Voltage/ Frequency
  • Functional and visual inspection

CA 6165 Practical Design

Data is indicated on the capacitive colour touchscreen and may be saved to the CA 6165 Electrical Equipment Tester’s 32GB memory card. The CA 6162 features inputs and outputs for connecting to pedals, lamp indicators, and PCs/laptops. It is compatible with TT, TN and IT networks (230V/115V).

CA 6165 Applications

Functioning as both an electrical appliance tester and an electrical installation tester, the Chauvin Arnoux CA 6165 is perfect for end-of-line production conformity checking and periodic maintenance/inspections. Consequently, the CA 6165 Electrical Equipment Tester is of particular use to:

  • Electrical equipment manufacturers
  • Low voltage switchboard specialists
  • Industrial maintenance firms
  • After-sale service companies
  • Certification organisations
  • Technical educators

The Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester is a versatile, comprehensive electrical appliance tester and electrical installation tester.

Key Features

  • Multifunctional electrical equipment tester
  • Functions as both an electrical appliance tester and an electrical installation tester
  • Test the electrical safety of portable electric equipment, machines, and switchboards
  • Manual and automatic tests
  • 5 kVAC/ 6 kVDC HV dielectric
  • 200mA, 4A, 10A, and 25A continuity
  • 50V, 100V, 250V, 500V, and 1000V insulation resistance
  • Substitute direct leakage current
  • Differential leakage current
  • Touch leakage current
  • Earth leakage current
  • True-RMS leakage current
  • True-RMS load current
  • External and internal discharge time up to 10s/ 550V peak
  • Power factor and total harmonic distortion (P, Q, S, Pf, Cos ɸ, THDU, THDI, U, and I)
  • Voltage/ Frequency
  • Functional and visual inspection
  • Capacitive colour touchscreen
  • 32GB memory card
  • Inputs and outputs for connecting to pedals, lamp indicators, and PCs/laptops
  • Compatible with TT, TN, and IT networks (230V/115V)
  • Perfect for end-of-line production conformity checking and periodic maintenance/inspections
  • A versatile, comprehensive electrical appliance tester and electrical installation tester

What’s Included?

  • Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester
  • 2x HV Test Guns with HV Cables (2m)
  • RS232 Cable
  • USB Cable
  • Mains Power Cable
  • 2x 2.5m Double Continuty Cables
  • 1x Set of Red/Black 2.5m Insulation Cables
  • Red 1.5m Continuity Cable
  • 2x Black Crocodile Clips
  • 3x Red Crocodile Clips
  • 2x Red and Black 1kV CAT IV Test Probes
  • Discharge Cable
  • Carrying Bag
  • Certificate Measurement Report
  • Safety Datasheet
  • Quick Start Guide
  • CD Containing the User Manual and MTLink Software

Chauvin Arnoux CA 6165 Multifunction Electric Equipment Tester Technical Specifications

High voltage
AC / AC Programmable Range 0 V to 1 999 V 2 kV to 5.99 kV
Resolution/Accuracy 1 V / ± 3 % R 10 V / ± 3 % R
DC / DC Programmable Range 0 V to 1,999 V 2 kV to 6.99 kV
Resolution/Accuracy 1 V / ± 3 % R 10 V / ± 3 % R
Courant Range AC: I apparent & resistive 0 mA to 99.9 mA - I capacitive: -99.9 mA to + 99.9 mA - DC: 0.01 mA to 9.99 mA
Resolution/Accuracy AC: I apparent: 0.1 mA / ±3 % R ± 3 cts, indicative for I capacitive & I resistive - DC: 0.01 mA / ± (5 % R + 3 cts)
0.2 A ; 4 A ; 10 A or 25 A continuity, voltage drop (10 A)
Range 0 to 19.99 Ω 20 to 99.9 Ω 100 to 199.9 Ω 200 to 999 Ω
Resolution 0.01 Ω 0.1 Ω 0.1 Ω 1 Ω
Accuracy ± (2 % R + 2 cts) ± 3 % R ± 5 % R -
Voltage drop (10 A) 0.00 V to 99.9 V
Insulation
Voltage 50 V / 100 V 250 V / 500 V / 1,000 V
Range 0 to 19.99 MΩ 20 MΩ to 99.9 MΩ 0 to 19.99 MΩ 20 MΩ to 199.9 MΩ
Resolution 0.01 MΩ 0.1 MΩ 0.01 MΩ 0.1 MΩ
Accuracy ± (5 % R + 2 cts) ± 20 % R ± (3 % R + 2 cts) ± 10 % R
Leakage Current
Method Substitute I PE Differential Touch
Range 0.00 to 19.99 mA 0.00 to 19.99 mA 0.00 to 19.99 mA 0.00 to 19.99 mA
Resolution 10 µA 0.01 mA 0.01 mA 0.01 mA
Accuracy ± (5 % R + 3 cts) ± (3 % R + 3 cts) ± (3 % R + 5 cts) ± ( 3 % R + 3 cts)
34 V, 60 V and 120 V discharge time
Time Range: 0 to 9.9 s Resolution: 0.1 s Accuracy: ± (5 % R + 2 cts)
Up voltage Range: 0 to 550 V Resolution: 1 V Accuracy: ± (5 % R + 3 cts)
Power values
Active (P) Apparent (S) Reactive (Q)
Range/Resolution 0 to 3.70 kW / 0.01 W to 10 W 0 to 3.70 kVA / 0.01 VA to 10 VA 0 to 3.70 kVAr / 0.01 VAr to 10 VAr
Accuracy ± (5 % R + 5 cts) ± (5 % R + 10 cts) ± (5 % R + 10 cts)
Other PF, Cos φ, THDi , THDu ; (5 % R + 5 D)
Voltage 0.0 V to 199 V / 0.1 V / ± (3 % R + 10 cts) 200 to 264 V / 1 V / ± 3 % R
Current 0 to 999 mA / 1 mA / ± (3 % R + 5 cts) 1.00 to 16.00 A / 10 mA / ± 3 % R
General Specifications
Display Colour TFT screen, 480 x 272 pixels
Storage microSD card
Communication interfaces RS232, USB, Ethernet*, Bluetooth, Inputs / Outputs (2 x DB9)
Power supply 110 V / 230 V - 50 Hz / 60 Hz ; Max. consumption: 600 W / 4.5 kW if charged on mains test socket
Dimensions/weight 435 x 292 x 155 mm / 17 kg
Environment Operating temperature: 0 °C to +40 °C; Storage: -10 °C to + 60 °C
Protection IP40 open / IP50 closed
Electrical safety 300 V CAT II / 600 V CAT II (DISCH1 / DISCH2)
Note * Ethernet not supported by MTlink, reserved for future developments.
