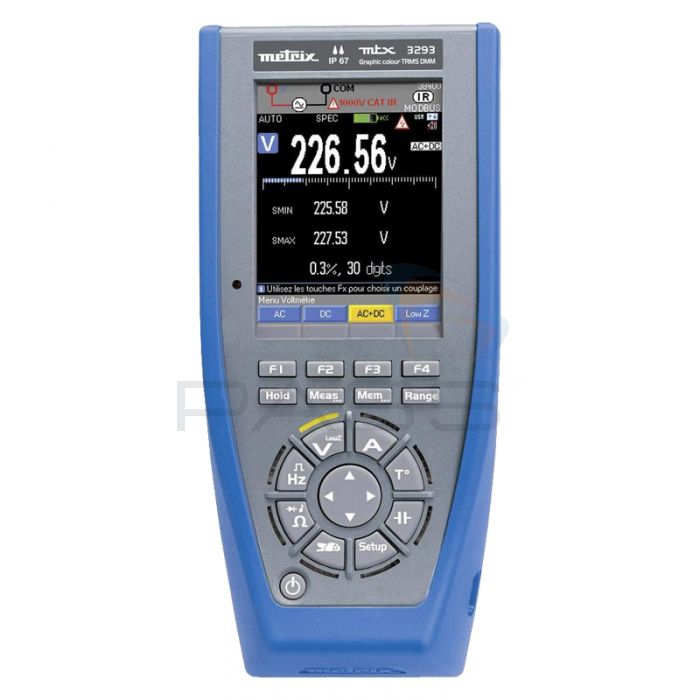

The Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter can be used as a handheld multimeter and a bench multimeter. It is ideal for electrical, electronics and machine maintenance applications within telecommunications, defence, medical, process, manufacturing, transport and energy industries. Please see the following video for a brief introduction to this multimeter.
The main differences between the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter and its sister product, the Chauvin Arnoux ASYC IV MTX3292 TRMS Digital Multimeter, is this model’s ability to measure bandwidth up to 200kHz, its greater accuracy of 0.02%, and its capacity to store up to 6500 measurements.
This high-performance digital multimeter is available in two versions, one of which features Bluetooth capabilities:
The Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter is compact, rugged and leakproof. It has an IP67 rating and is resistant to dust and water ingress making it suitable for use in challenging and/or outdoor environments. It also features a comfortable grip for ease of handling and an easy-to-read, 320 x 240px, colour, matrix display with a black background. Via this display the user can view results either graphically or numerically; it is possible to view the results for multiple parameters simultaneously.
The Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter is capable of mearing the following electrical parameters:
Furthermore, the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter includes the following measurement functions, allowing the user to ascertain the reading most relevant to his/her application. The Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter includes the following functions:
It is possible to view Min, Max, Average and Peak values simultaneously when the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter is set to Surveillance mode. Additionally, Min, Max, Average and Peak values are date- and time-stamped.
In addition to the aforementioned functions, the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter includes cursors for tracing and zooming in on graphical results. Viewing results graphically is particularly useful when observing trends over time.
It is possible to log up to 6500 measurements to the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter’s memory. This instrument’s simple operating interface means it is easy to set testing and logging parameters such as the number, interval, duration and storage of measurements. Data can be transferred to a PC or laptop using the USB and/or Bluetooth interface (model dependent).
It is also possible to save up to ten measurement sequences to the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter, again, adding to its ease of use. Moreover, integrated help screens (in French and English) and contextual connection reminders also improve the simplicity and efficiency of testing.
In addition to easy and efficient testing, the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter has been designed to maximise uptime. Its NiMH AA rechargeable battery provides an operating time of up to 100 hours. Furthermore, the Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter can continue testing whilst charging.
This easy-to-use, ergonomic and efficient tester can be used to measure, trend and log an array of electrical parameters. The Chauvin Arnoux ASYC IV MTX3293 TRMS Digital Multimeter is ideal for electrical and mechanical maintenance technicians working within a variety of industries.
Measurement Functions | |
DC, AC and AC+DC voltages | 100 mV to 1,000 V |
DC accuracy | 0.02 % |
AC and AC+DC bandwidth | 200 kHz |
DC, AC and AC+DC current | 1000 µA to 10 A /20 A (30 s max) |
DC accuracy | 0.01 % |
Frequency | 10 Hz to 5 MHz |
Resistance | 100 Ω to 100 MΩ |
Audible continuity | 1000 Ω SIGNAL < 20 Ω < 3,5 V |
Diode test | Diode 0 -2.6 V < 1 mA + Zener Diode or LED 0-20 V < 11 mA |
Capacitance | 1 nF to 10 mF |
Temperature PT100/1000 | -200 °C to 800 °C |
Temperature TK/TJ | -40 to +1,200 °C |
Other Functions | |
Surveillance | SURV time/date-stamped MAX/MIN /AVG or PEAK ±, on all the main positions |
REL | Relative value REF-delta unit or on 3 displays + main measurement |
PWM filter | 4th-order 300 Hz low-pass filter for measuring on variable speed drives of asynchronous motors |
V-output clamp function for direct reading |
Parameterizable Ax ratio |
Secondary functions or measurements | 3 measurements + main measurement |
SPEC | Display of measurement tolerance: Smin, Smax |
GRAPH | Trends of main measurements < 60 s + Zoom + Cursor |
Central zero | Automatic trend bargraph |
Measurement storage | 6500 |
General Specifications | |
Type of display | Colour graphical display (70 x 52) with backlighting on 4 100,000-count displays |
PC interfaces | USB optical connector or Bluetooth (option)– SX-DMM software |
Power supply | Charger or 4 x AA batteries or Ni-MH batteries |
Safety / EMC | Safety as per IEC 61010-1 1,000 V-CAT III /600 V CAT IV |
Safety as per IEC 61010-2-033 | |
Environment | Storage: -20 °C to +70 °C – Operation: 0 °C to +40 °C |
Mechanical specifications | Dimensions (L x P x H): 196 x 90 x 47.1 mm – Weight: 570 g |
Warranty from Chauvin Arnoux | 3 years |
