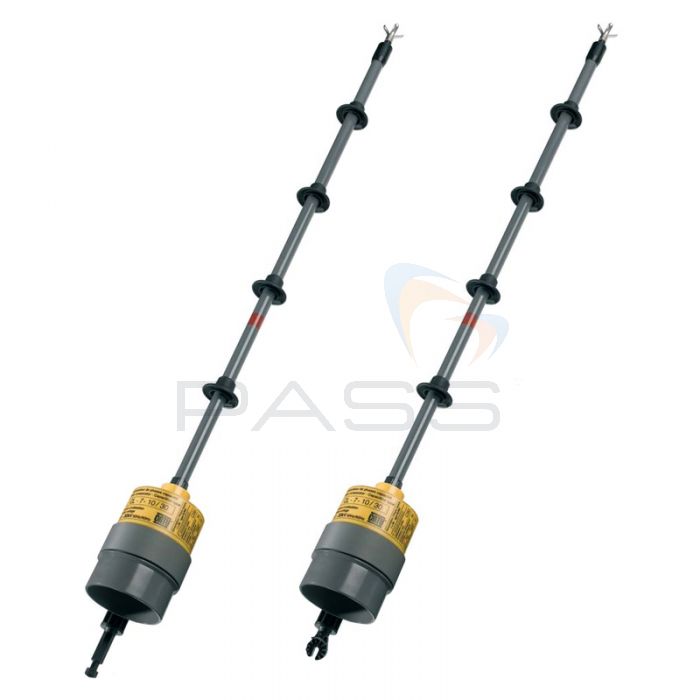

CATU Single Pole Phase Comparator 6-18kV (Choice of Mounting)

SKU
CL-7-06/18
Rating:
0%
(0)
Discontinued

This product is no longer available

or Call 01642 931 329 to discuss alternatives

Single Pole Phase Comparator 6-18kV (Choice of Mounting)

Used for comparisons between phase on high voltage systems from 6 up to 18kV this instrument uses clear LED indicators to show phase status.

The CL-7-06/18 is suitable for use both indoors and outdoors thanks to its fully insulated, IEC-61481 compliant design.  The phase comparator is also designed for direct connection to insulating poles; it includes a connector on the end available as either a C type (hexagonal 12mm) or K type (universal) for attachment to these poles.

On the end of the pole the CL-7-06/18 comes with an LED indicator which uses orange LEDs to show memorised phase status, green LED for phase indication and red LEDs for non-phasing indication. A built-in test button also tests the device for accuracy and resets the memory.

The pole measures a total of 0.55m in length. We also stock several longer alternatives with different voltage ranges; for more information on these, please see the links to the left in the alternative products section.

CATU CL-7-06/18 Single Pole Phase Comparator (6-18kV) Key Features

  • 0.55m in length
  • 6 to 18kV range
  • LED indicators show phase status
  • Available with a selection of end fittings to attach poles to the comparator
  • Runs on 9V batteries
  • 50/60Hz network compatibility
  • Green, red and orange LED indicators

Supplied as standard with the comparator and a carrying case.

Comparison Chart

There are four variations of this product available. The following table outlines the difference between each.

Code Voltage Range Battery Type Aerial Total Length (m) Weight (g)
CL-7-06/18-(*) 6 to 18kV 9V 0.55m 850g
CL-7-10/30-(*) 10 to 30kV 9V 0.90m 900g
CL-7-10/30-1-(*) 10 to 30kV 9V 1.15m 950g
CL-7-12/36-(*) 12 to 36kV 9V 0.90m 900

* Refers to connector type. Please select C or K type when ordering.

Connection Type Guide

C K E S A / B
C Type Fitting K Type Fitting E Type Fitting S Type Fitting A / B Type Fitting
Hexagonal Universal Bayonet

Clamp
Stick

CM-4
CM-6

Reviews

Additional Information
SKU CL-7-06/18
Manufacturer Part Code CL-7-06/18-C
