CATU Class 0 High Voltage Insulating Gloves ≤ 1 000 V - 4 Sizes

SKU
CG-10
Rating:
100%
(1)
Reward Points
:
57
£57.59 £47.99
2 Options in Stock
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know

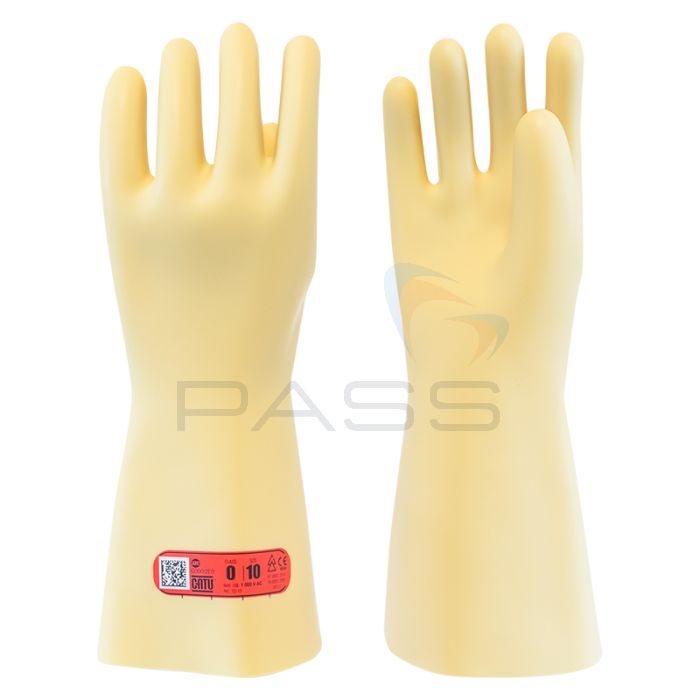

Class 0 High Voltage Insulating Gloves

Use the dropdown option above to choose your glove size when making a purchase. Size guide available in the 'Downloads' tab.

Insulating gloves are designed to resist electricity, making them an essential purchase for anyone working close to live wires. Each pair of gloves is tested to accepted standards IEC 60903 and EN 60903 to ensure they are fully compliant and resistant to electrical properties.

These gloves are 1mm thick and have been designated with ‘0’ class by Catu. This means that they have been tested to 1000V AC and 1500V DC for protection against electricity. They are also designated with class ‘RC’ which means that the gloves are resistant to acid, ozone and very low temperatures.

Our range of insulating gloves is available in various different types with different thicknesses and protection ratings. Click a link on the left to view more glove options.

*Note: insulative gloves are designed for use with silicon leather glove covers for mechanical protection

CG-105 I.E.C Insulating Gloves Key Features

  • 1mm thickness
  • Protected against voltage less than 1000V
  • RC category rating for protection against acid, ozone and low temperature
  • IEC 60903 and EN 60903 compliant
  • Various sizes available
  • Designed to resist electricity and be comfortable to wear

Important Test Date Information

The following information is applicable to all classes of insulating gloves.

After the original manufacture and test date there is a maximum of 12 months for the gloves to be issued (defined as opening the bag). The original manufacture and test date is marked on the bag and gloves. Once issued (the bag has been opened) the gloves must be tested after a maximum of 6 months. The permissible 6 months begins on the date of first use/ issue (the day the bag is opened); this date must be marked on the gloves.

For example:

  • The gloves are manufactured and tested in January 2021
  • The gloves are issued to a worker (the bag is opened) in December 2021
  • The gloves must be retested or discarded in June 2022

PLEASE NOTE: All insulating gloves are made to order and therefore lead times may vary. This is due to testing dates occurring at the point of manufacture, so we are unable to hold stock as dates will lapse.

Insulating Gloves Comparison Chart

We stock a large selection of gloves suitable for use at different voltages and of different class types. The table below outlines the difference between each of the glove selections.

Code Class Voltage Thickness Category Length Weight
CG-05 00 ≤ 500V 0.5 AZC 360mm 150g
CG-10 0 ≤ 1000V 1 RC 360mm 220g
CG-15 1 ≤ 7500V 1.5 RC 360mm 270g
CG-20 2 ≤ 17000V 2.3 RC 360mm 450g
CG-30 3 ≤ 26500V 2.9 RC 360mm 560g
CG-40 4 ≤ 36000V 3.6 AZC 410mm 800g

Class/Category Information

The following tables outline exactly what the classes and categories above mean.

Class:

Class AC DC
00 500V effective 750V
0 1000V effective 1500V
1 7500V effective 11250V
2 17000V effective 25500V
3 26500V effective 39750V
4 36000V effective 54000V

Category

Category Resistant To:
A Acid
H Oil
Z Ozone
R Acid, Oil and Ozone
C Very Low Temperature

Glove Size Guide

For correct fit spread fingers and measure across the widest part of palm, between thumb and index finger.

  6 7 8 9 10 11
Size (Approx.)
67mm 79mm 91mm 103mm 115mm 127mm


Size guide available in the 'Downloads' tab.

CATU Insulated Gloves - Datasheet Datasheets In-Service Recommendations for Maintaining, Inspecting and Retesting Electrical Insulating Gloves Manuals & Guides CATU Insulated Glove Sizing Sheet Notes & Other

Reviews

Additional Information
SKU CG-10
Manufacturer Part Code CG-10-A
