Use the dropdown option above to choose your glove size when making a purchase. Size guide available in the 'Downloads' tab.
Ensure your safety when working near live voltages to 500V AC with these insulated gloves from CATU.
Every pair of individual gloves is extensively tested and provided in a sealed plastic bag by CATU, ensuring full compliance with IEC 60 417-5126, EN60903 and IEC 60903 to ensure your safety when working in and around live electrical wires.
These gloves are class '00' rated - they have been tested up to 750V and are certified for electrical safety up to 500V. The gloves are also classified by category 'AZC' - they are resistant to acid, ozone and very low temperature damage.
Important Note - Made for Use with Protective Overgloves
As these gloves are not protected against mechanical damage and may be at risk of tearing, you should use them alongside a pair of recommended silicone leather overgloves.
The recommended CATU CG-981 Overgloves for use with this product.

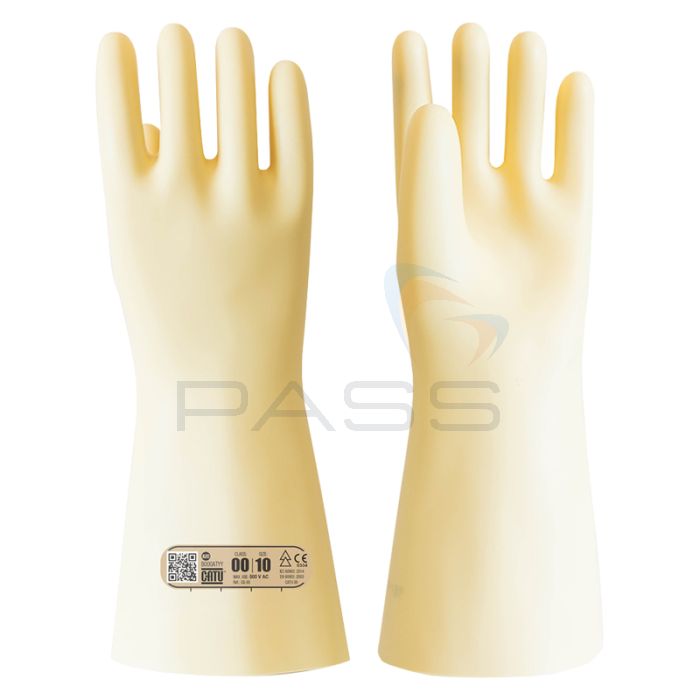

CATU CG-05 High Voltage Insulated Gloves Key Features
- Protective gloves for working with live wires up to 500V (tested to 750V)
- Individually tested and provided in a sealed plastic bag
- No mechanical protection - made for use with overgloves (sold separately)
- AZC classification - resistant to acid, ozone and low temperatures
- EN60903 and IEC 60903 compliant
- Class 00
- Several sizes available
Important Test Date Information
The following information is applicable to all classes of insulating gloves.
After the original manufacture and test date there is a maximum of 12 months for the gloves to be issued (defined as opening the bag). The original manufacture and test date is marked on the bag and gloves. Once issued (the bag has been opened) the gloves must be tested after a maximum of 6 months. The 6 months begins on the date of first use/ issue (the day the bag is opened); this date must be marked on the gloves.
For example:
- The gloves are manufactured and tested in January 2021
- The gloves are issued to a worker (the bag is opened) in December 2021
- The gloves must be retested or discarded in June 2022
PLEASE NOTE: All insulating gloves are made to order and therefore lead times may vary. This is due to testing dates occurring at the point of manufacture, so we are unable to hold stock as dates will lapse.
Insulating Gloves Comparison Chart
We stock a large selection of gloves suitable for use at different voltages and of different class types. The table below outlines the difference between each of the glove selections.
Code | Class | Voltage | Thickness | Category | Length | Weight |
CG-05 | 00 | ≤500V | 0.5 | AZC | 360 | 150 |
CG-10 | 0 | ≤1000V | 1 | RC | 360 | 220 |
CG-15 | 1 | ≤7500V | 1.5 | RC | 360 | 270 |
CG-20 | 2 | ≤17000V | 2.3 | RC | 360 | 450 |
CG-30 | 3 | ≤26500V | 2.9 | RC | 360 | 560 |
CG-40 | 4 | ≤36000V | 3.6 | AZC | 410 | 800 |
Class/Category Information
The following tables outline exactly what the classes and categories above mean.
Class:
Class | AC | DC |
00 | 500V effective | 750V |
0 | 1000V effective | 1500V |
1 | 7500V effective | 11250V |
2 | 17000V effective | 25500V |
3 | 26500V effective | 39750V |
4 | 36000V effective | 54000V |
Category
Category | Resistant To: |
A | Acid |
H | Oil |
Z | Ozone |
R | Acid, Oil and Ozone |
C | Very Low Temperature |
Reviews
SKU | CG-05 |
---|---|
Manufacturer Part Code | CG-05-A |
