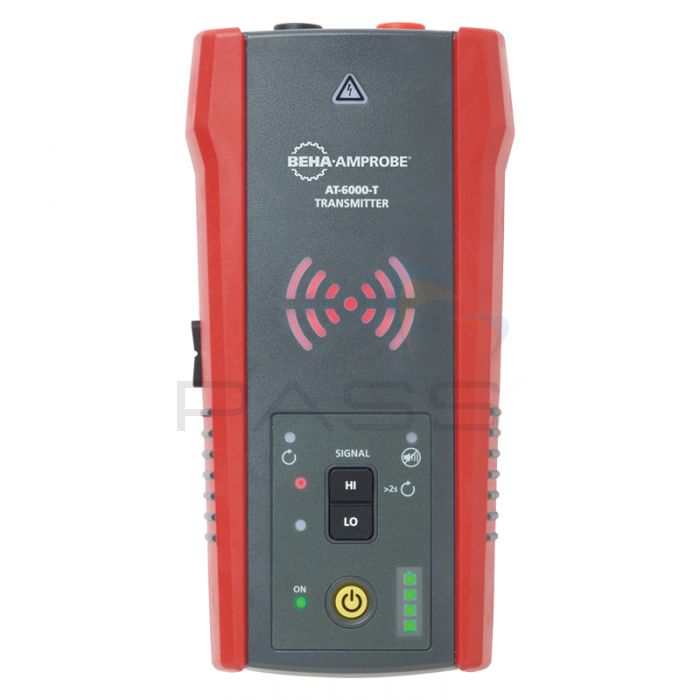

The Beha-Amprobe AT-6000-TE Transmitter can be used with the Beha-Amprobe AT-6000-RE Receiver (sold separately) to trace energised and de-energised circuits. It is suitable for use on circuits up to 600V AC/DC in Category I-III environments. Please see the video below for an overview of Beha-Amprobe’s AT-6000-EUR Wire Tracer Series.
The Beha-Amprobe AT-6000-TE Transmitter issues a signal through the cable which the receiver is able to trace. The Beha-Amprobe AT-6000-TE Transmitter is equipped with three signal modes, High, Low and Loop, as well as a Breaker Identification feature. The Breaker Identification feature is designed to eliminate confusion caused by multiple false positives by identifying the correct breaker/ fuse with the highest recorded signal.
The user is able to see which transmission mode is engaged via the Beha-Amprobe AT-6000-TE Transmitter’ transmission mode indicator and loop mode indicator.
The Beha-Amprobe AT-6000-TE Transmitter can be used with the Beha-Amprobe AT-6000-RE Receiver for the following applications:
- Tracing energised and de-energised wires
- Identifying breakers and fuses
- RCD-protected circuit wire tracing
- Finding breaks, openings and shorts
- Tracing non-metallic pipes and conduits
- Tracing wires in metal conduits
- Tracing shielded wires
- Tracing underground wires
- Tracing low voltage wires and data cables
- Sorting tangled wires
- Mapping circuits
- Tracing breakers/ fuses on systems with light dimmers
The videos below demonstrate the Beha-Amprobe AT-6000-TE Transmitter being used in various applications.
Identifying Breakers
Tracing Wires in Metal Conduits
Tracing Wires Behind Walls, Ceiling and Floors
Finding Breaks, Opens and Shorts in Wires
The Beha-Amprobe AT-6000-TE Transmitter is an easy-to-use, reliable and rugged tool suitable for an array of tracing and location applications.
Beha-Amprobe AT-6000-TE Transmitter Key Features
- Use with the Beha-Amprobe AT-6000-RE Receiver to trace energised and de-energised circuits
- Suitable for use on circuits up to 600V AC/DC in Category I-III environments
- Issues a signal through the cable for the Beha-Amprobe AT-6000-RE Receiver (sold separately) to trace
- Three transmission signal modes: High, Low and Loop
- Breaker Identification feature: prevents confusion caused by multiple false positives by identifying the correct breaker/ fuse with the highest recorded signal
- Transmission mode and loop mode indicators
- Easy-to-use, reliable and rugged tool suitable for an array of tracing and location applications
What’s Included?
- Beha-Amprobe AT-6000-TE Transmitter
Beha-Amprobe AT-6000-TE Transmitter Technical Specifications
Measurement category | CAT III 600 V |
Operating voltage | 0 to 600 V AC/DC |
Operating frequency | Energized: 6.25 kHz |
De-Energized: 32.768 kHz | |
Voltage detection | > 30 V AC/DC |
Signal indications | LEDs and audible beep |
Response time | Line voltage monitoring: 1 sec |
Battery voltage monitoring: 5 sec | |
Current output of signal (typical) |
Energized circuit: HI mode: 60 mA RMS LO mode: 30 mA RMS |
De-energized circuit: HI mode: 130 mA RMS LO mode: 40 mA RMS Loop mode: 160 mA RMS |
|
Signal voltage output (nominal) |
De-energized circuit: LOW: 29 V RMS, 120 Vp-p HIGH: 33V RMS, 140 Vp-p |
With CT-400-EUR: loop model: 31 V RMS, 120 Vp-p |
|
Range detection (open-air) | - |
Display size | LEDs |
Display dimensions (W x H) | - |
Display resolution | - |
Display type | LEDs |
Display colour | Operating mode LEDs: red |
Battery status LEDs: green, yellow, red | |
Booting time | < 2 sec |
Backlight | - |
Operating temperature | -20 °C to 50 °C (-4 °F to 122 °F) |
Operating humidity | 45%: -20 °C to <10 °C (-4 °F to <50 °F) |
95%: 10 °C to <30 °C (50 °F to <86 °F) | |
75%: 30 °C to <40 °C (86 °F to <104 °F) | |
45%: 40 °C to 50 °C (104 °F to 122 °F) | |
Storage temperature and humidity |
-20 °C to 70 °C (-4 °F to 158 °F), <95% RH |
Operating altitude | 0 to 2000 m (0 to 6561 ft) |
Transient protection | 6.00 kV (1.2/50μS surge) |
Pollution degree | 2 |
IP rating | IP 40 |
Drop test | 1 m (3.28 ft) |
Power supply | 8 x AA (alkaline or NiMH rechargeable) |
Power consumption (typical) | Hi/Lo mode: 70 mA |
Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA |
|
Battery life (typical) | Hi/Lo mode: approx. 25 h |
Loop mode: approx. 18 h | |
Low battery indication | • |
Fuse | 1.6 A, 700 V, fast-acting, Ø 6x32mm |
Maximum conductor Size | - |
Dimensions (L x W x H) | Approx. 183 x 93 x 50 mm (7.2 x 3.66 x 1.97 in) |
Weight | Approx. 2.8 kg (6.18 lb) |
