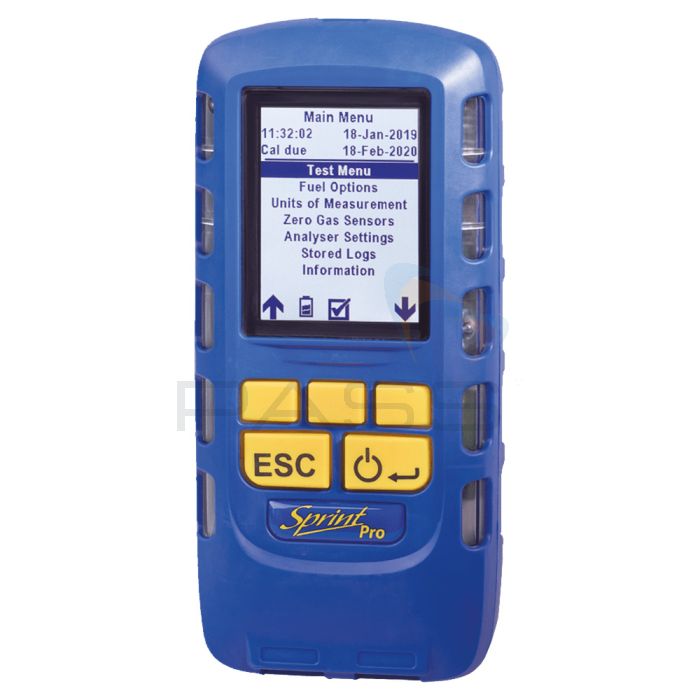

Anton Sprint Pro5 Multifunction Flue Gas Analyser

The Anton Sprint Pro5 Multifunction Flue Gas Analyser includes a NO sensor for conducting NO (nitric oxide) and NOx (nitrogen oxide) measurements in FGA mode. In this mode it can also perform the following measurements and tests:

Anton Sprint Pro5

Carbon Monoxide (CO) levels
Carbon Dioxide (CO2) levels
Oxygen (O2) levels
CO: CO2 ratios
Excess air temperature
Flow temperature
Return temperature
Differential temperature
Efficiency
BS7967 CO sweep tests
CO ambient air monitoring

When connected to the included Anton Gas Pro Detector with a LED searchlight the Anton Sprint Pro5 can be used to find gas leaks. Like its sister products, it also features over-range protection and extensive pressure menu with options for let-by tests and tightening tests. Moreover; it can produce BS7967 CO room safety reports, making it ideal for professional plumbers, as well as oil and commissioning engineers working with BS7967.

Should the user need to expand the Anton Flue Gas Analyser’s measurement capabilities he/she can upgrade the tester to include a dual-beam IR CO2 sensor. This sensor facilitates ambient CO2 monitoring and enables the analyser’s ability to perform simultaneous CO and CO2 monitoring. The Anton Sprint Pro 5’s support of future upgradability allows it to be adapted to the user’s requirements and adds to its longevity. Also adding to this combustion gas analyser’s longevity is its construction. The analyser is made from the same material used to create motorcycle crash helmets and includes a secure, click-in flue probe ensuring that it can be used in rugged environments.

Further to this, the Sprint Pro is equipped with double insulation against condensation ingress, eliminating unavoidable downtime caused by moisture absorption. As a result, this gas analyser proves extremely cost-effective and increases the user’s testing efficiency. To achieve this, it includes water-resistant technology and a durable, easy-to-empty condensation trap with a particulate filter. The video below details how the Anton Sprint Pro's water-stop technology and condensation trap work.

Also improving the testing efficiency of this instrument is its ergonomic design with large function buttons and a colour, high-contrast display. In addition to seeing test results and reports, the user is able to view colour prompts and warnings via the display as well as access and navigate the intuitive menu.

This EN 50379-1:2012- and EN 50379-3:2012- complaint analyser also supports a number of communication methods. The Anton Sprint Pro 5 Multifunction Flue Gas Analyser supports USB-C charging. It also facilitates a connection to the user's PC via a USB cable. This instrument is compatible with Anton’s Sprint PC Software (free through Anton’s website), allowing the user to view results and manage reports on his/her PC. Additionally, it is possible to connect the Anton Sprint Pro5 Analyser to an Anton Sprint Pro Printer via the IRDA communication interface. The user may also connect the combustion gas analyser to his/her iOS or Android smartphone or tablet via the instrument’s Wi-Fi connectivity and the Anton Sprint Pro Mobile App. Using this app, the individual can view and manage results and reports remotely as well as email or print reports. For further information, please see the following video.

The Anton Sprint Pro 5 Multifunction Flue Gas Analyser is a cost-effective, comprehensive and adaptable combustion gas, nitric oxide and nitrogen oxides analyser. Its rugged, water-resistant design makes it suitable for a variety of applications within an array of challenging environments.

Videos

PASS Presents Anton Sprint Pro Flue Gas Analysers

What's the BEST Anton Sprint Pro Gas Analyser for You

Anton Water-stop Technology

Anton Sprint Pro double water stop technology protects your FGA from condensate ingress & downtime

Anton Sprint Mobile App

Anton Sprint Mobile Free App: features overview. Now on iOS and Android. The Professional's Choice!

Key Features

Includes a NO sensor for conducting NO and NOx measurements in FGA mode
Carbon Monoxide (CO) levels
Carbon Dioxide (CO2) levels
Oxygen (O2) levels
CO: CO2 ratios
Excess air temperature
Flow temperature
Return temperature
Differential temperature
Efficiency
BS7967 CO sweep tests
CO ambient air monitoring
Detect gas leaks by connecting the analyser to the included Anton Gas Pro Detector with a LED searchlight
Over-range protection
Extensive pressure menu with options for let-by tests and tightening tests
Can produce BS7967 CO room safety reports
Ideal for plumbers, as well as oil and commissioning engineers working with BS7967
Supports future upgradability: can be altered to include a dual-beam IR CO2 sensor for ambient CO2 monitoring
Rugged construction with a secure, click-in flue probe
Constructed from the same material used to make motorcycle crash helmets
Double insulation against condensation ingress
Eliminates downtime caused by moisture absorption
Cost-effective and improves testing efficiency
Features water-resistant technology
Includes a durable, easy-to-empty condensation trap with a particulate filter
Ergonomic design with large function buttons
High-contrast, colour display with colour prompts and warnings
Intuitive, easy-to-navigate menu software
EN 50379-1:2012- and EN 50379-3:2012- complaint
USB-C charging
Connect to a PC with Anton’s Sprint PC Software (free through Anton’s website) installed via a USB cable
Connect to the Anton Sprint Pro Printer via the IRDA communication interface
Connect to an Android or iOS tablet or smartphone via Wi-Fi and the Anton Sprint Pro Mobile App
Supplied with a drop-in design carry bag
Cost-effective, comprehensive and adaptable flue gas, nitrogen oxide and nitric oxide analyser
Suitable for a variety of applications within an array of challenging environments

What’s Included As Standard?

Anton Sprint Pro 5 Multifunction Flue Gas Analyser
Flue Probe
Gas Escape Probe
Charger
Pressure Hose
Bag
Calibration Certificate (1st Year)

Anton Sprint Pro5 Kit Comparison

	Pro5 Only	Pro5 A	Pro5 B	Pro5 Probe	Pro5 Safety	Pro5 Ultimate
What's Included?
Sprint Pro5 Flue Gas Analyser	✓	✓	✓	✓	✓	✓
Standard Accessories	✓	✓	✓	✓	✓	✓
AS-10 Clamp Pipe Temperature Probe	-	2	2	2	2	2
Pressure Relief Valve	-	✓	✓	✓	✓	✓
IR Printer/Sprinter Printer USB	-	✓	✓	-	-	✓
Pro BS7967 Probe Set	-	-	✓	-	-	-
Clip SGD personal CO	-	-	-	-	✓	✓
Extendable Probe Handle	-	-	-	✓	-	✓
Sprint Pro Bent Flue Probe with Water Trap	-	-	-	✓	-	-
Sprint Pro Oil Boiler Kit with 3 Micron Filter	-	-	-	-	-	-
ASPK Smoke Pump Kit	-	-	-	-	-	-
Oil Pressure Kit	-	-	-	-	-	-

Anton Sprint Pro Series Comparison

	Pro1	Pro2	Pro3	Pro4	Pro5	Pro6
	CO, O2, (CO2 calculated)	CO, O2, (CO2 calculated)	CO, O2, (CO2 calculated)	CO, O2, Ambient CO2^†	CO, O2, NO (CO2 calculated)^††	CO, O2,NO, Ambient CO2^††
What's Included?
USB Charger & Lead	✓	✓	✓	✓	✓	✓
Sprint Pro Quick Drop In Bag	✓	✓	✓	✓	✓	✓
Sprint Pro Flue Probe with Water Stop & Washable Particulate Filter	✓	✓	✓	✓	✓	✓
Sprint Pro Gas Escape Probe	-	Optional	✓	✓	✓	✓
Standard Pressure Hose	-	✓	✓	✓	✓	✓
Spare Washable Particulate Filter	✓	✓	✓	✓	✓	✓
Calibration Certificates & Quick Start Guide	✓	✓	✓	✓	✓	✓
Functionality
Pressure Tester	-	✓	✓	✓	✓	✓
Bluetooth	-	-	✓	✓	✓	✓
Gas Leak Detector	-	Optional	✓	✓	✓	✓
Dedicated CO2 Sensor	-	-	-	✓	-	✓
NO Sensor	-	-	-	-	✓	✓

^†Additional CO2 sensor for direct measurement ambient air testing (COMCAT and CMDDA1)
^††Additional NO sensor for NO and NOx readings

*Note: As these flue gas analysers are specially made-to-order with the manufacturer, (to ensure the lifespan of special sensors) our 14-day money-back guarantee is only applicable if the unit is found to be faulty.
