Amprobe TACH20 Tachometer - Kit

Beha-Amprobes' TACH20 tachometer can measure both rotational and surface speed, either via direct contact or by use of infrared non-contact measurements.

RPM values can be measured for both modes in m/min, m/sec, ft/min, ft/sec, in/min, m, ft and in. Please see the tech specs below for more information on the range for each unit type.

An adapter at the top of the TACH20 is designed to select a wide variety of tips and Beha-Amprobe's surface speed wheel for direct contact measurements. Alternatively you can use the built-in infrared beam option to measure RPM safely from a distance.

Additional functions of this unit include an automatic power off function and integrated memory storage of MAX/MIN results over a period of time.

Beha-Amprobe TACH20 Tachometer Key Features

  • Measures rotational and surface speed
  • Built in memory for storage of max, min, avg and data hold of last readings
  • Digital display
  • Auto shut down function when left idle
  • Quickly change between units and measurements modes
  • Carries out both non contact and contact RPM measurements
  • Infrared beam and adapter for comprehensive measurements
  • Measures in m/min, m/sec, ft/min, ft/ses and in/min

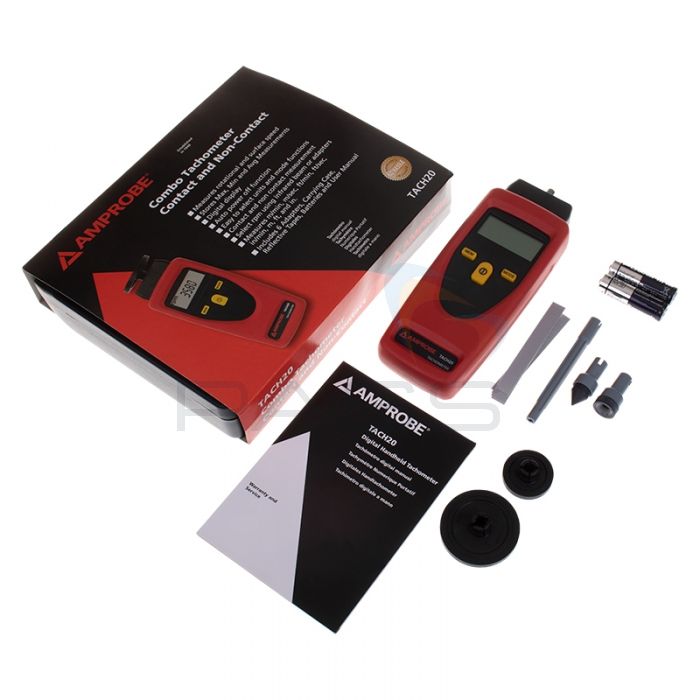

What's Included?

  • Beha-Amprobe TACH20 Tachometer
  • 6 x Adapters
  • Carrying Case
  • Reflective Tape
  • Batteries
  • User Manual

Beha-Amprobe TACH20 Technical Specifications

Accuracy ±0.02% v. reading ±1 Digit
Measuring Ranges RPM optical 1 ... 99999 min
mechanical 1 ... 19999 min
Speed
  Ø 01 m Ø6” Ø 12”
m/min 0.10 ...1999 0.10 ...1524 0.40 ...609.6
ft/min 0.40 ...6550 0.40 ...5000 0.40 ...2000
in/min 4.00 ...78700 4.00 ...60000 4.00 ...24000
m/sec 0.10 ...33.30 0.10 ...25.40 0.10 ...10.16
ft/sec 0.10 ...109 0.10 ...83.33 0.10 ...33.30
Length 0 ...99999 m / 0...99999 ft / 0...99999 in
Sensing Disance (Optical) max. 600 mm (24 in)
Battery Type 2x AA 1.5V Battery LR6 (ALKALINE) or rechargeable
Operating Temperature 0 ... +50°C (32...122°F)
Storage Temperature -20...+70ºC (0...160ºF)
Housing Material ABS
Weight 250 g (0.55 lb)
Size 175x60x28 mm (7x2.5x1 in)
Agency Approvals &
Certifications
CE
Amprobe TACH20 Combo Tachometer - Datasheet Datasheets Amprobe TACH20 Combo Tachometer - Product Manual Manuals & Guides

Reviews

Additional Information
SKU 3311961
Manufacturer Part Code 3311961
Country of Origin Germany
